LEGRAND Wattstopper LMSW-101 Guia De Inicio Rapido

No: 23271 – 07/16 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo:
LMSW-101, LMSW-102, LMSW-103, LMSW-104, LMSW-108
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Models ending in -U are BAA and TAA compliant (Product produced in the U.S.)

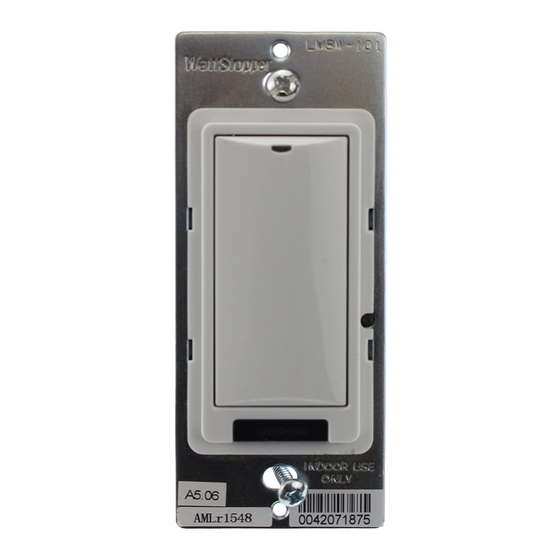

LMSW-101
This unit is pre-set for Plug n' Go™ operation, adjustment is optional.
For full operational details, adjustment and more features of the product, see the
DLM System Installation Guide provided with Wattstopper room controllers, and
also available at www.legrand.us/wattstopper.
Installation shall be in accordance with all applicable regulations, local and
NEC codes. Wire connections shall be rated suitable for the wire size (lead and
building wiring) employed.
For Class 2 DLM devices and device wiring: To be connected to a Class 2 power
source only. Do not reclassify and install as Class 1, or Power and Lighting
Wiring.
Do not apply cleaning solvent directly onto unit. Apply cleaning solvent onto a
cloth, then wipe the unit to clean it.
MOUNTING THE SWITCH
WARNING: Do not install to cover a junction box having Class
1, 3 or Power and Lighting Circuits.
CAUTION: TO CONNECT A COMPUTER TO THE DLM LOCAL
NETWORK USE THE LMCI-100. NEVER CONNECT THE DLM
LOCAL NETWORK TO AN ETHERNET PORT – IT MAY
DAMAGE COMPUTERS AND OTHER CONNECTED EQUIPMENT.
Wattstopper
Digital Lighting Management Low Voltage Switches (v3)
Interrupteurs basse tension de gestion numérique de l'éclairage (v3)
Interruptores de bajo voltaje de control de iluminación digital (v3)
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
LMSW-102 LMSW-103
®
LMSW-104 LMSW-108
SPECIFICATIONS
Voltage .............................................................................. 24VDC
Current Consumption .............................................................5mA
Power Supply ................................. Wattstopper Room Controller
Connection to the DLM Local Network .................... 2 RJ-45 ports
DLM Local Network characteristics when using LMRC-11x/2xx
room controllers:
Low voltage power provided over Cat 5e cable (LMRJ);
max current 800mA. Supports up to 64 load addresses,
48 communicating devices including up to 4 LMRC-10x
series and/or LMPL-101 controllers.
Free topology up to 1,000' max.
Environment ................................................. For Indoor Use Only
Operating Temperature .................32° to 131°F (0° to 55°C)
Storage Temperature ...................23° to 176°F (-5° to 80°C)
Relative Humidity .......................5 to 95% (non condensing)
Patent Pending
BUTTONS AND INDICATORS
Blue load status LED(s)
On/Off button(s)
Configuration button
(behind switch plate)
Red configuration LED
