2.2. Rear View
 8-Port
16-Port

 Ethernet LED Indicators:
 IP-Ready:
ORANGE LED blinking per second when system is ready.
 Ethernet-Link:
GREEN LED indicates that Ethernet connection established.
2.3. Single stage installation
2.3.1. Precaution:
 Please turn off computers and devices when you start to install KVM Switch.
 For computers with Keyboard Power On function, please unplug the power
cords in advance. Otherwise, the switch might not work properly.
 If your computeres work under Windows 98, please connect KVM switch to
computers via PS/2 ports, because Windows 98 does not support installation
at first time as through USB HID installation driver.
 Some kind of old computers must enable USB setting in BIOS in advance
to make USB interface work.
 This KVM switch does not guarantee to fully support USB keyboard with
USB HUB.
 (Optional) Connect the USB connectors of USB A-mini cable to the host
computer and the IP-KVM module while for remote mass storage control.
 Connect one end of Ethernet cable to ethernet jack of IP-KVM, and the
other end to the Remote Console computer.

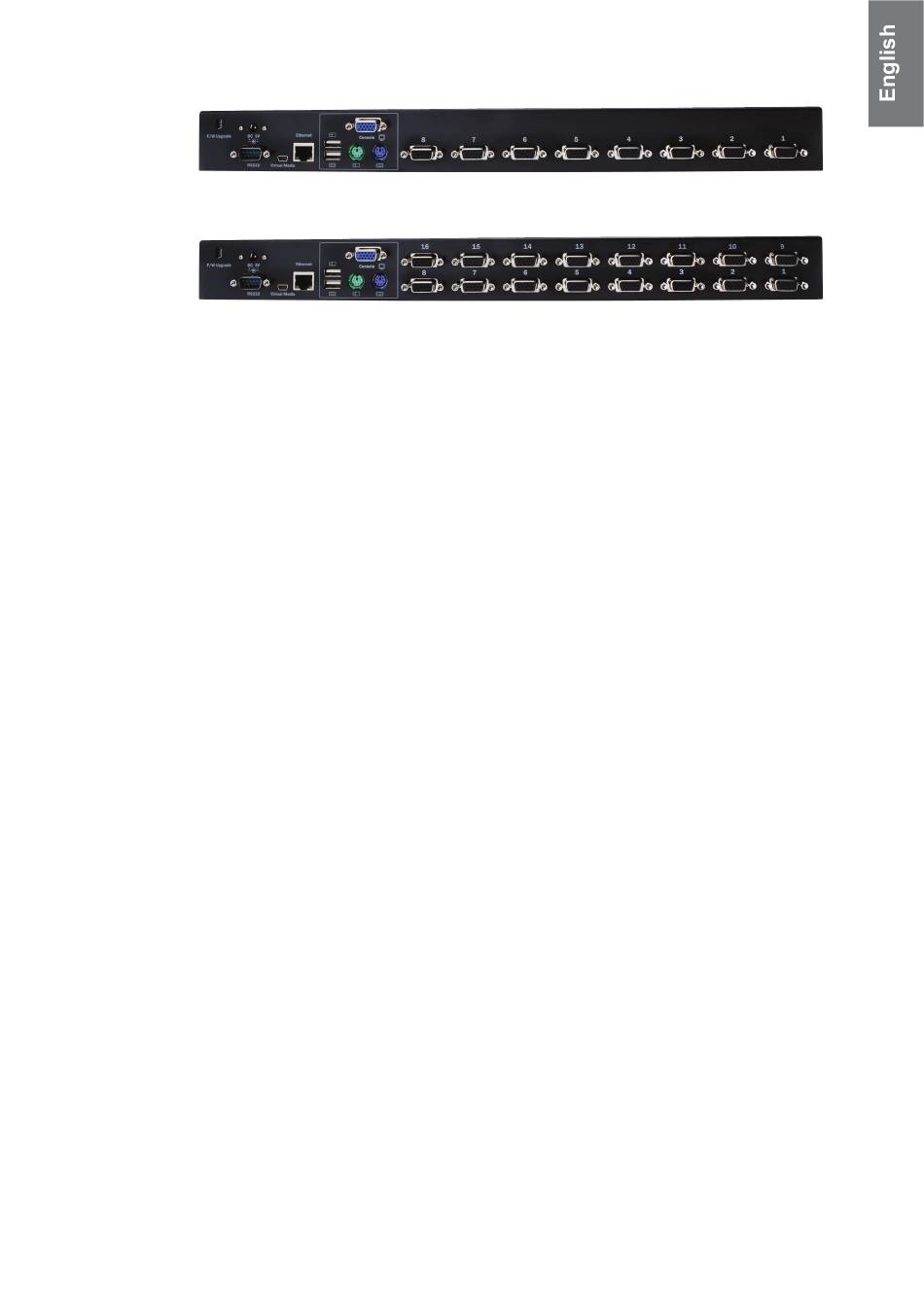

Figure 3: 8-port IP-KVM rear view
Figure 4: 16-port IP-KVM rear view
