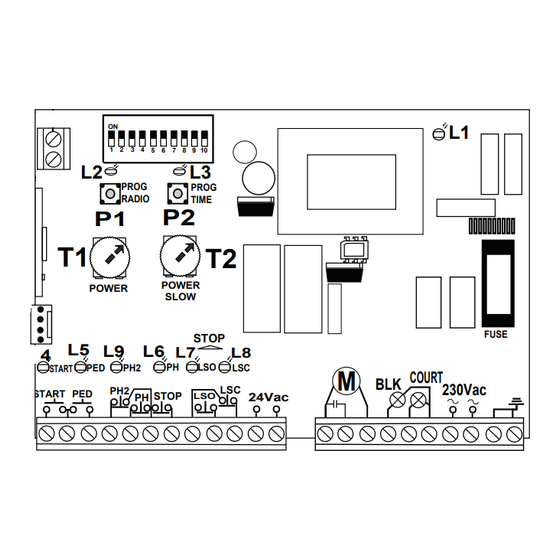

QK-CE220CN
Control board for 230V gearmotors
USER MANUAL V01
ON
1 2
3 4 5 6
7 8 9 10
L2
L3
ANT
PROG
PROG
RADIO
TIME
P2
P1
T2
POWER
SLOW
STOP
L5
L9
L6
L7
L4
L8
PED
PH2
PH
LSO
LSC
START
M
LSC
PH2
START
PED
STOP
24Vac
PH
LSO
1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22
N.C.
N.C.
N.C.
N.C.
COM
N.O.
N.O.
N.C.
COM
Terminal
Tip.
Description
1 - 2com
NO
START CONTACT (Each impulse OPEN/STOP/CLOSE/STOP)
3 - 2com
NO
PEDESTRIAN CONTACT
4 - 6com
NC
SAFETY BAND OR OPENING PHOTOCELLS (If no use make bridge)
5 - 6com
NC
CLOSING PHOTOCELLS (If no use make bridge)
7 - 6com
NC
STOP contact(If no use make bridge)
9 - 8com
NC
LIMIT SWITCH OPENING
10 - 8com
NC
LIMIT SWITCH CLOSING
11 - 12
24V ~
Power service or accessories (output 24Vac 250mA)
13-14-15
230V ~
Input ENGINE (13-14 input phases with capacitor in parallel) (15 common)
16 - 18
230V ~
FLASH
17 - 18
230V ~
COURTESY LIGHT
19 - 20
230V ~
Input POWER 110Vac
21 - 22
/
GROUND
23 - 24
Input ANTENNA ( 24 signal)
Example wiring selector
L1
2
1
CONTACT
NO
Start
FUSE
Example wiring photocells
BLK COURT 230Vac
5
6
+ -
NC COM
RX
UNI
Our products if installed by qualified personnel capable to evaluate
EN
risks, comply with norms UNI EN 12453, EN 12445
The CE mark complies with EEC European directive 89/336
+ 93/68 D.L.04/12/1992 n.476
7
6
CONTACT
NC
Stop
11 12
+ -
TX
TECHNICAL SPECIFICATIONS
Power
230V AC +/- 10%
Power engine
550 W
Output accesories
24V AC 250mA
Time for automatic close
5 a 120 sec
Time for maneuver
3 a 120 sec
Time for slow down
2 a 120 sec
Time for courtesy light
180 sec
Nr codes storable
254 code
Transmitters type
Fix\Roll-code
Frequency
433.92 / 868 Mhz
Temperature to work
-20 a 70°C
Sensibility
Better of –100dBm
Homologation
Conf ETS 300-220/ETS 300-683
TRIMMER T1
The trimmer POWER regulates the torque and sensitivity during the maneuver
TRIMMER T2
The trimmer POWER SLOW regulates the torque and sensitivity during SLOW DOWN phase
-
+
The TORQUE increases turning the trimmer in clockwise sense.
BUTTON
P1
o r R A D I O P R O G f o r s t o r a g e t h e t r a n s m i t t e r
BUTTON
P2
o r P R O G T I M E f o r s t o r a g e t h e s t r o k e
ENCODER OPERATION
Actived by DIP8 ON
CHANGE OF SENSITIVITY AND TORQUE
More torque = less sensitivity
Less torque = more sensitivity
The parameters are set by the trimmer T1 and T2.
TABLED LEDS
L1
Led STATUS
Lit when the unit is powered
L2
Led RADIO
Lit when accessing in radio storage
L3
Led PROG. TIME
It is blinking when in programming
L4
Led START
Lit when taking a pulse
L5
Led PEDESTRIAN
Lit when taking a pedestrian pulse
L6
Led PHOTOCELLS
Lit when the fotocells are aligned
L7
Led L.S. OPENING
Lit when limitswitch opening is on NC
L8
Led L.S. CLOSING
Lit when limitswitch closing is on NC
L7+L8
Led STOP
Both on when the stop is on NC
L9
Led PHOTOCELLS
Lit when the photocells are aligned/
AP/ safety edge
safety edge connected
