ASSEMBLING
THE MILLRACK
Assembling the bottom
shelf
Left-side arranging the
pull-out supports
10
Millrack is supplied with the shelves not installed.
After unpacking the preassembled mounting rack and the shelves, complete the
assemblage as follows.

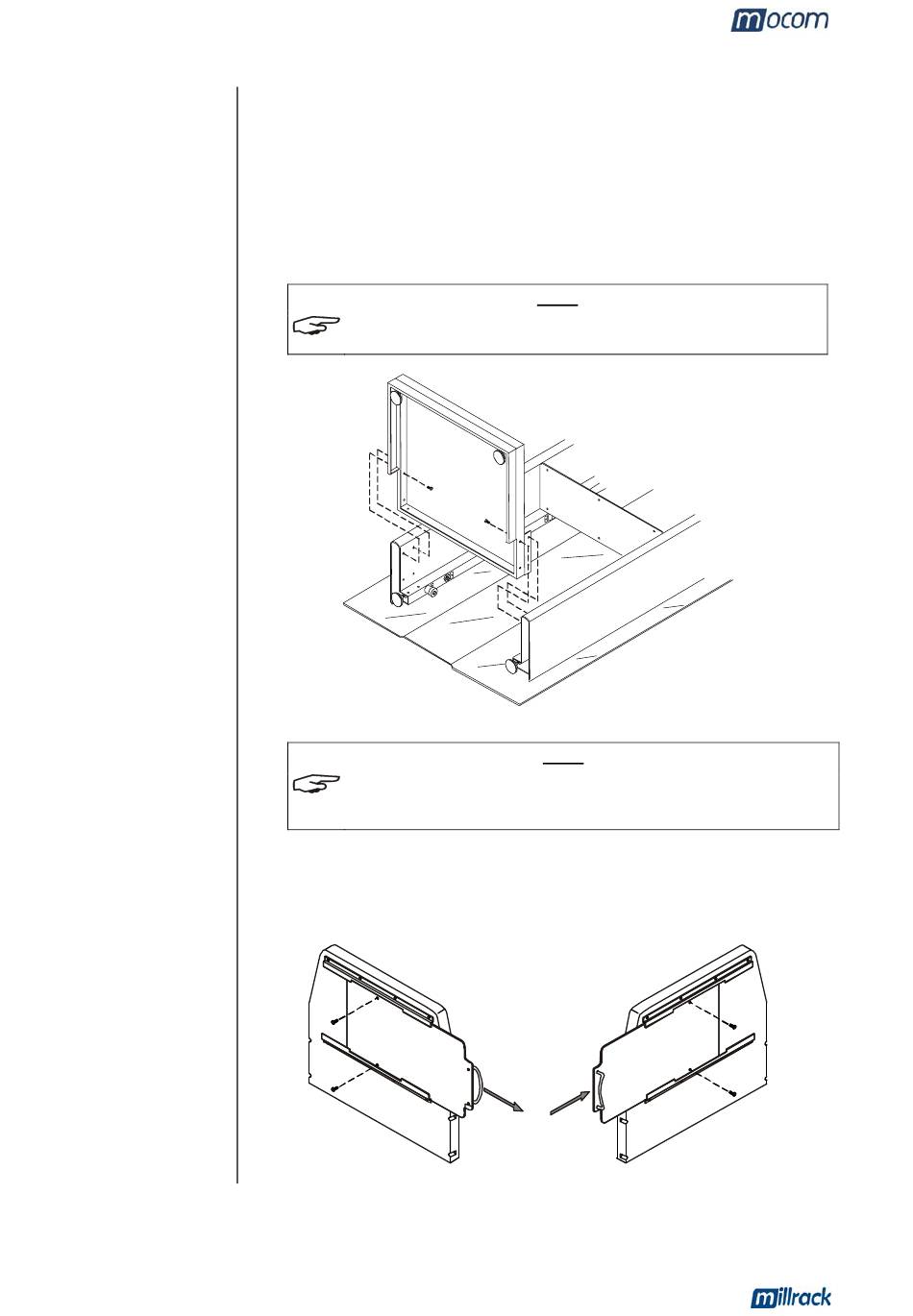

Place the mounting rack horizontally on the ground and fix shelf #4 to the base with 12
screws of the supplied kit (Ref. 10 - page 4).
U
SE THE PACKAGE CARDBOARD SO AS NOT TO DAMAGE THE RACK DURING THE
ASSEMBLY OPERATION ON THE GROUND
I
F THE USER WISHES TO HAVE THE PULL
,
SIDE IT IS ADVISED TO CARRY OUT THIS OPERATION BEFORE MOUNTING THE
OTHER SHELVES
-
Remove the two blocking screws and completely extract the support,
-
Insert the support on the left hand side of the guide bars; reinsert the blocking
screws.
NOTE
.
6x
6x
NOTE
-
OUT SUPPORTS POSITIONED ON THE LEFT
.
