Assembly of the actuator

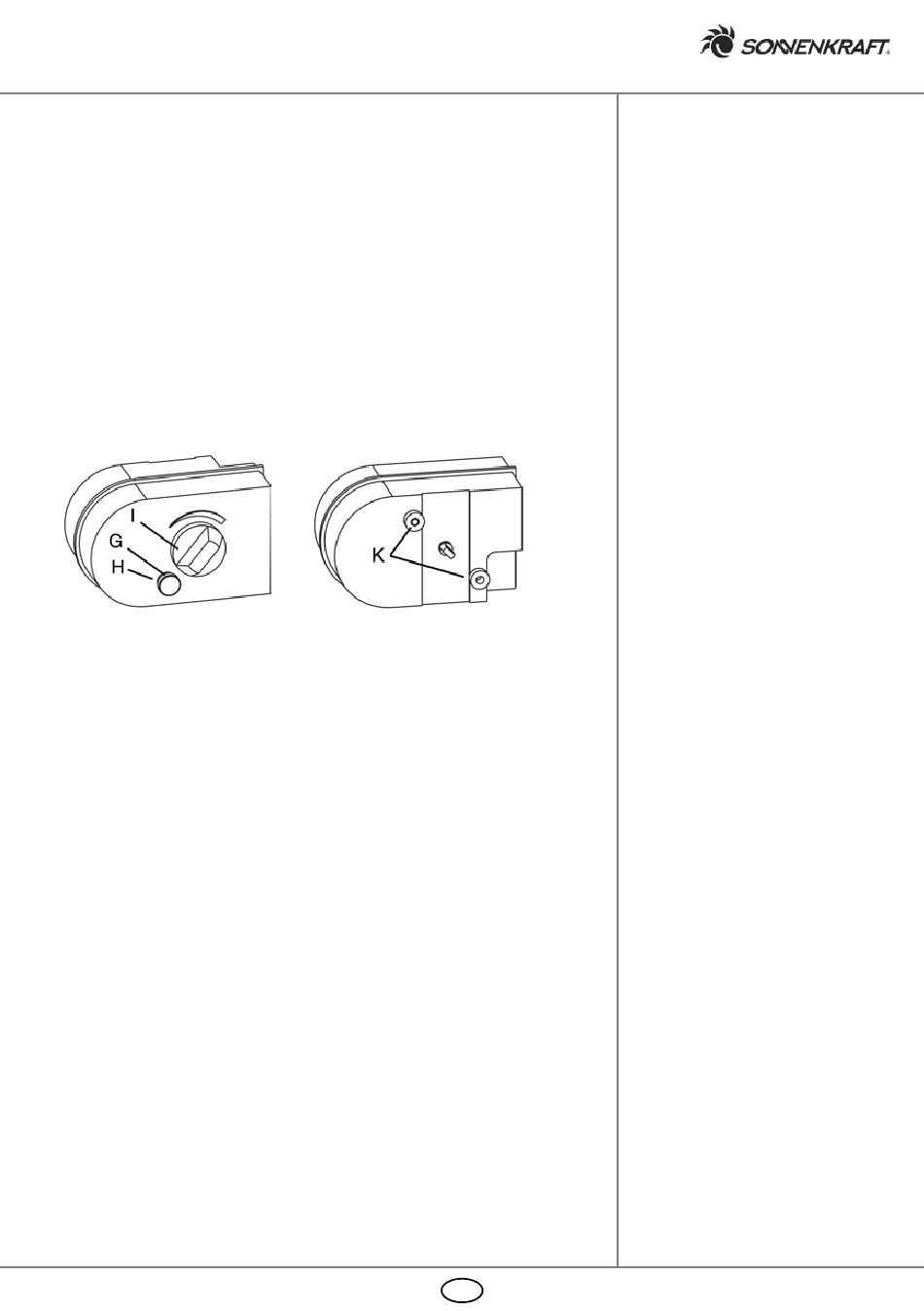

A safety screw is accessible (H) after removing the pro-
tective cover (G). The actuator [6] can be removed after
loosening the screw.
Caution!
The knob of the drive unit (I) must be in the „max" posi-
tion and the colour dot* on the attachment of the 3-way
valve must point upwards when assembling the actuator!
Place the actuator with the back pins (K) onto the thread
screws of the 3-way mixer and press until the motor
engages. Secure the actuator with the screw (H) and
close the opening with cap (G).
