Filter Installation

The F6 Strip IP includes a Square Milky Filter already installed. Follow the procedure below to install the included Black
Stealth Filter.
1. Locate the end of the product that does not have the interlocking hardware.
2. Push in on the filter latch.
3. Slide the installed filter out and replace it with the desired filter.
4. Release the filter latch.
Filter Latch
Mounting
Before mounting this product, read the
weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

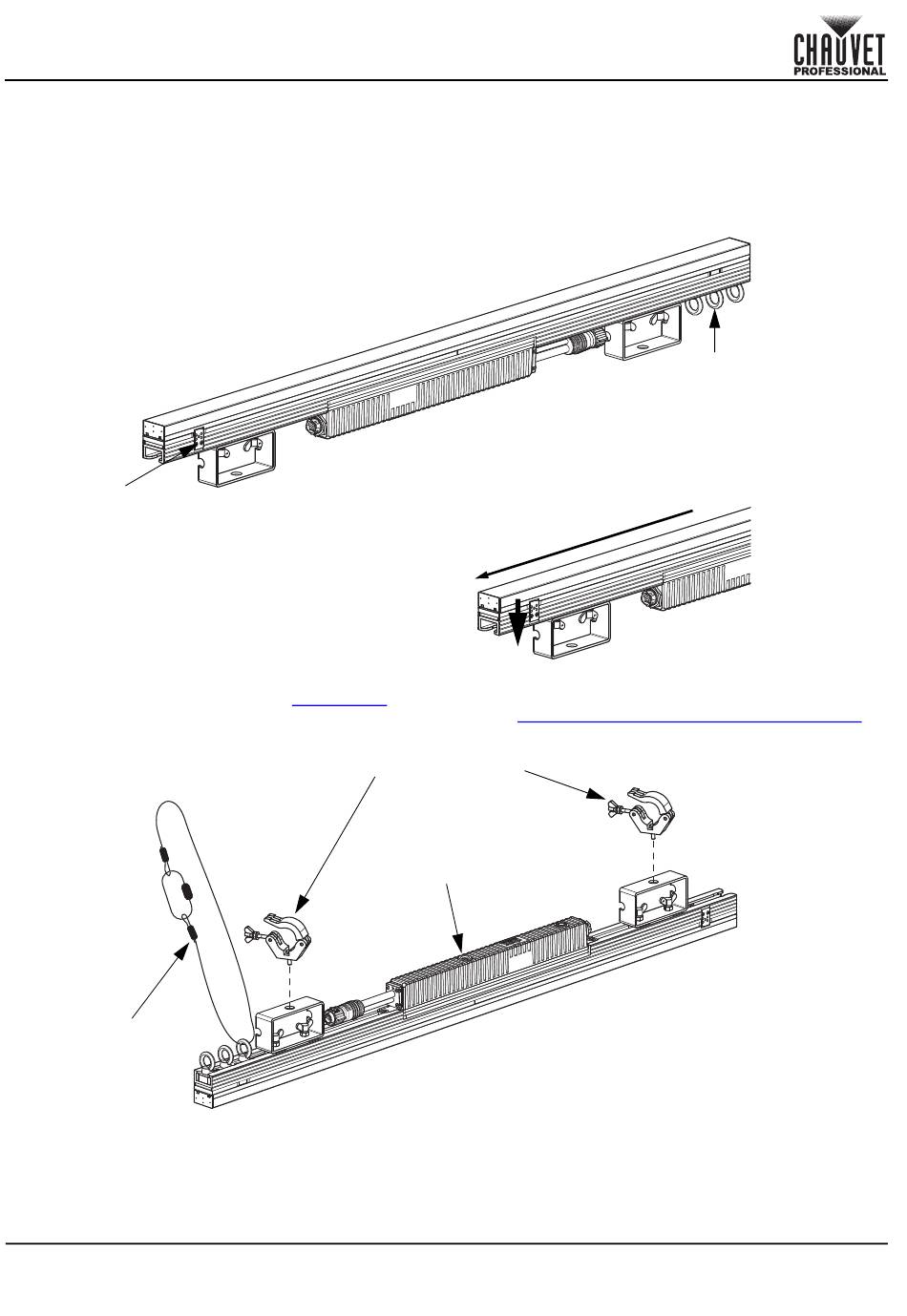

Mounting Diagram

Safety Cable
3
QUICK REFERENCE GUIDE
Safety Notes. Make sure the mounting devices are capable of supporting the
Mounting Clamps
M12 Threaded
Mounting Hole
Interlocking Hardware
