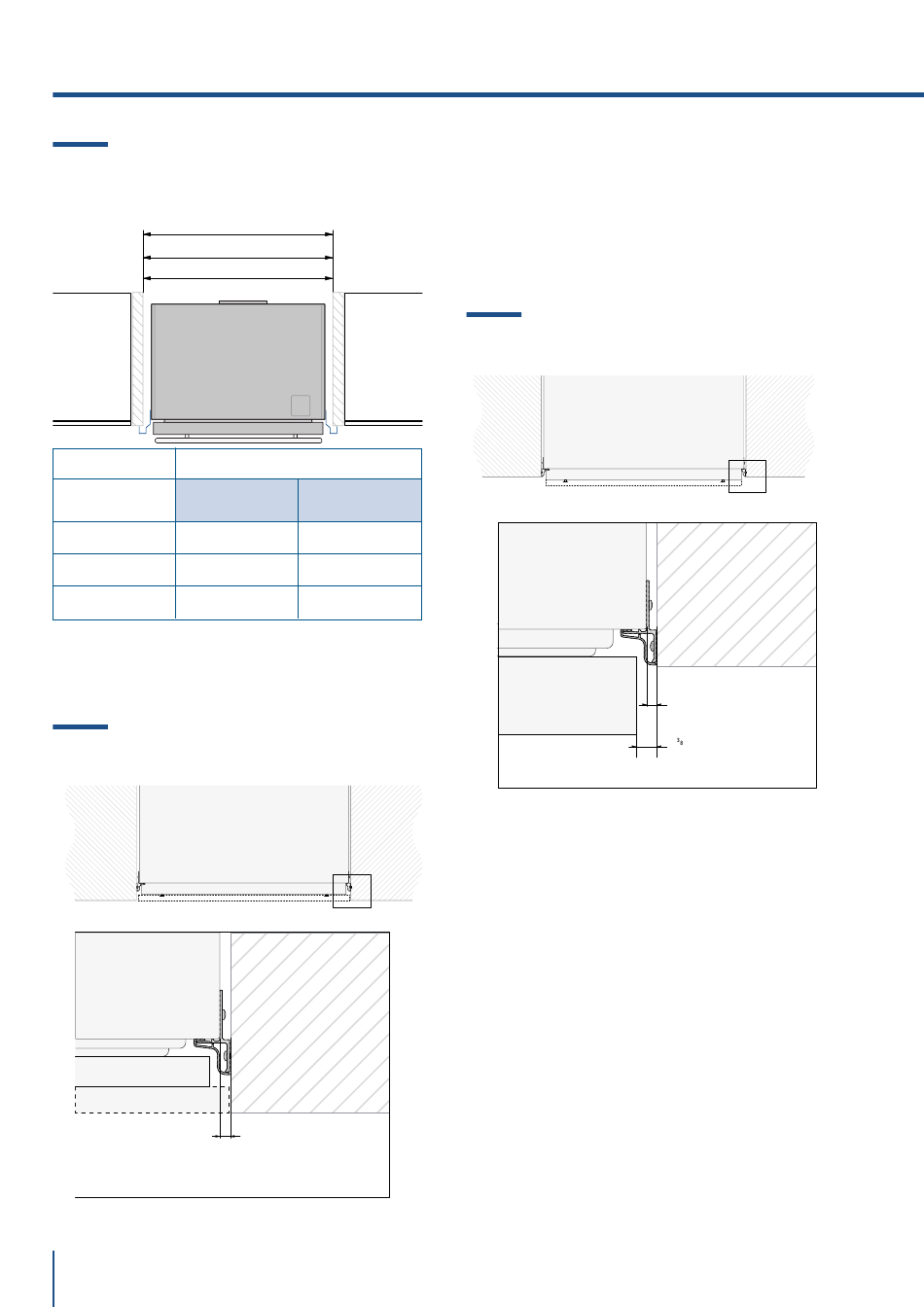

4.2 Niche Dimensions and Installation
Styles: StandPlus and X-Pro Series
Stand-Proud
36: 914 (36")
30: 762 (30")
24: 610 (24")
Series MIN
36
902 (35 1/2")
30
752 (29 5/8")
24
602 (23 3/4")
KCLXB: Lateral connection Kit
(not included - must be ordered as a separate ac-
cessory)
4.3 Flush installation with standard
aluminum trims
16 www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
NICHE
MAX
914 (36")
762 (30")
610 (24")
A
6,5 (¼")
A - KCLITU: Lateral connection Kit (included)
B - KCCITU: Central connection Kit
(for side-by-side installations)
(not included - must be ordered as a separate
accessory)
4.4 Prominent installation with standard
aluminum trims
A - KCLITU: Lateral connection Kit
B - KCCITU: Central connection Kit
(for side-by-side installations)
(not included - must be ordered as a separate
accessory)
A
6.5 (¼")
10 ( ⁄ ")
A
6.5 (¼")
10 ( ⁄ ")
