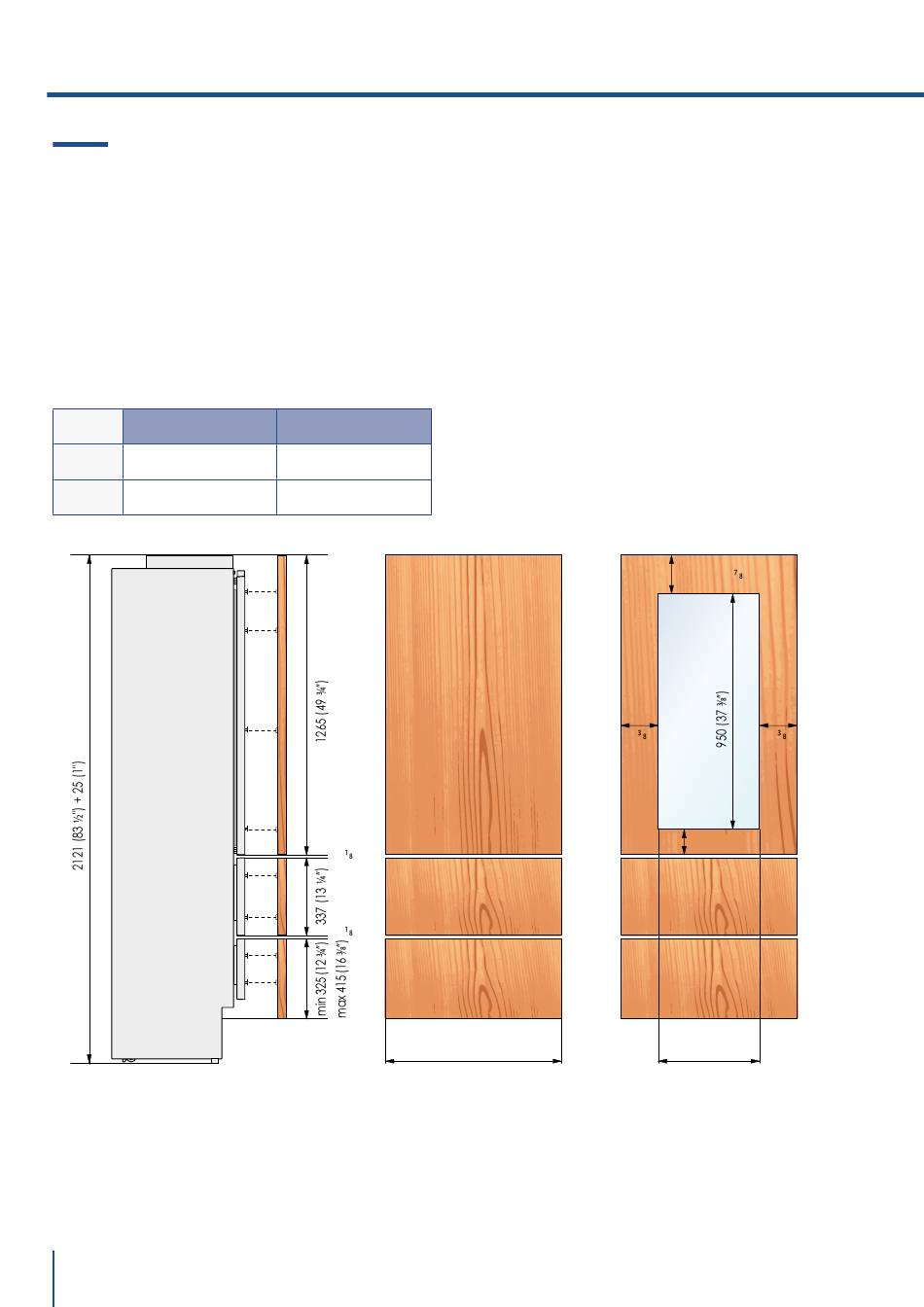

5.9 Panels Dimensions Two Bottom - Drawers

Panels can have thickness ranging between 18 mm (3/4") and 28 mm (1-1/8").
Door panels can have a maximum weight 23 kg (51 lbs) and drawer panels may be a maximum weight of 11kg
(25 lbs)
Exceeding these weights could void your warranty for any service issues which can be attributed to overweight
panels.
The hinging mechanism on Fhiaba appliances is considered to be `Zero-clearance`. The door and drawer widths
specified below assume the minimum niche width is being used and a 3.5mm (1/8") reveal is desired around the
panels. Adjust your panel dimensions accordingly to your own design criteria considering your niche width and
your reveal. Minimum reveal / gap should not be less than 1.5mm (1/16").
SERIES DOOR/DRAWER WIDTH A
899 / 36"
897 (35 1/4")
749 / 30" 747 (29 3/8")
Example:
84" niche height
36" niche width
4" toe kick height
1/8" gap desired all around
26 www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
DOOR CUTOUT WIDTH B
627 (24 3/4")
477 (18 3/4")
3 ( ⁄ ")
3 ( ⁄ ")
135
(5 ⁄ ")
A
Door panel:
Width: 35-3/4"
Height: 54-3/4"
Drawer panel:
Width: 35-3/4"
Height: 84"-1/8"-54-3/4"-1/8"-4"=25"
If you want a 6" toe kick height then your bottom drawer panel
height would be 23"
min 200 (7 ⁄ ")
135
(5 ⁄ ")
115 (4 ½")
B
