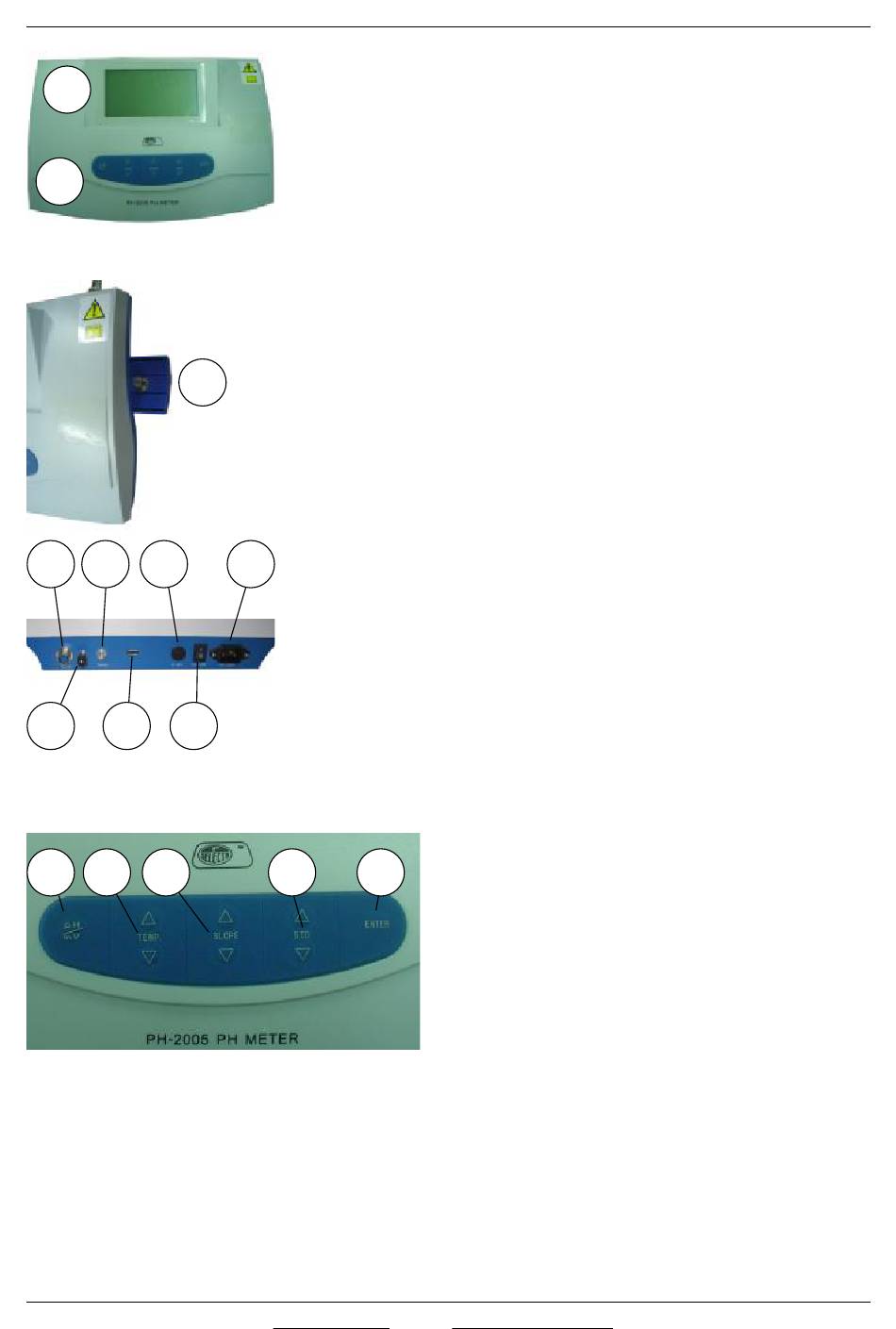

5 Description

5.1 General

1. Keyboard.

2. Display.
3 Mooring rod for probe holder
3

5.2 Rear part

10
4. pH or mV electrode socket
5. Reference electrode socket
6. Temperature probe socket
7. USB port
8. Fuse holder
9. Main switch
10. Power supply soket
14
Ctra. NII Km 585.1 Abrera 08630 (Barcelona) España
e-mail: selecta@jpselecta.es - website: http://www.grupo-selecta.com
Octubre/2013 (Sujetas a modifi caciones sin previo aviso)
5.3 Keyboard
15
11. pH or mV selection key
Leave from the calibration mode
12. Manual temperature set key
13. Manual second calibration point correction
(SLOPE)
14. Manual fi rst calibration point
(STD)
15. «ENTER» key
