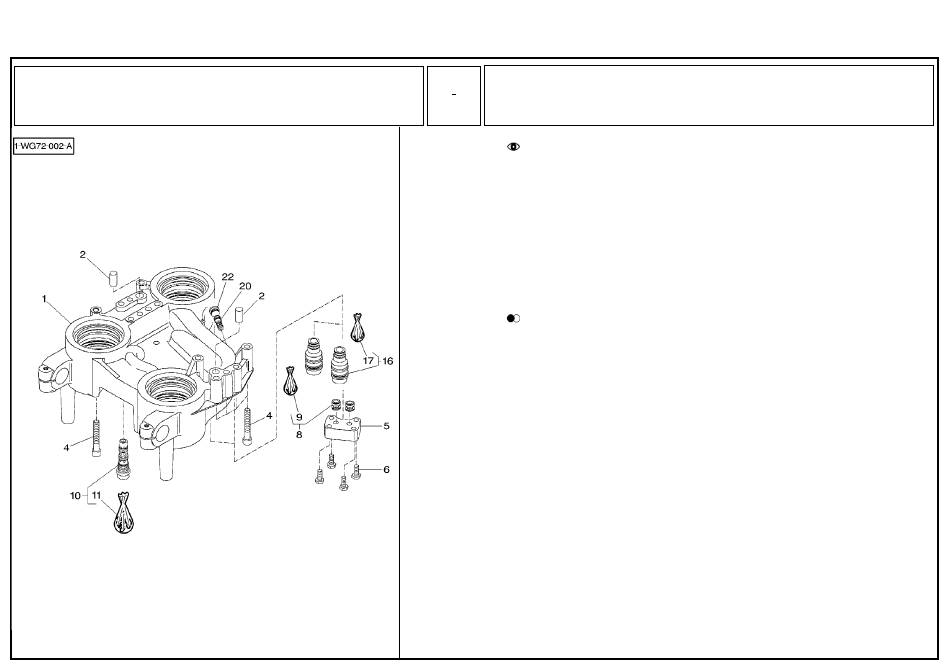

Duct Plate
Plaque De Conduite
Kanalplatte
Piastra Comando Idraulico
Placa Del Conducto
1−WG72−002−A WG721002 1637452 M2 (0) 04/05 25 45
−
25 45
1 [A]
25−10 No 1
2 [A]
4 [A]
M12 X 80
5
916100430020
6 [A]
M10 X 40
8 X600585202000
9 X600585202010 8
10
G916101430020
11 F916100430010 10
16 G716100430011 G716100430010
17 F716100430010 16
20 G916101430030
22 X483900400000 M12 X 1,5
[A] NOT SUPPLIED SEPARATELY
NON FOURNI SEPAREMENT
NICHT MITGELIEFERT BESTELLEN
NON SERVITO SEPARATAMENTE
NO SUMINISTRADOSEPARADAMENTE
1 PLATE PLAQUE
PIASTRA
2
PIN GOUPILLE
PERNO
13
SCREW VIS
VITE
1
FLANGE FLASQUE
FLANGIA
4 SCREW
VIS
VITE
2 NON RETURN VALVE
CLAPET
VALVOLA NO RITOR
1 KIT, JOINT
JEU JOINTS
KIT GIUNTO
1
FLUSHING VALVE VANNE DE PURGE
FLUSHING VALVE
1 KIT, JOINT JEU JOINTS
KIT GIUNTO
2 DISCHARGE VALVE VALVE DECHARGE
VALVOLA−SICUREZZ
1 KIT, JOINT
JEU JOINTS
KIT GIUNTO
1 VALVE. SOUPAPE
VALVOLA
1 SCREW VIS
VITE
PLATTE
PLATO
BOLZEN
PASADOR
SCHRAUBE
TORNILLO
FLANSCH
PLETINA
SCHRAUBE
TORNILLO
RUECKSCHLAGVENT.
VALV.SIN RETORNO
DICHTUNGSSATZ
JUEGO JUNTAS
SPUELVENTIL
FLUSHING VALVE
DICHTUNGSSATZ
JUEGO JUNTAS
DRUCKBEGR.VENTIL
VALVULA ALIVIO
DICHTUNGSSATZ
JUEGO JUNTAS
VENTIL
VALVULA
SCHRAUBE
TORNILLO
