DS-KIS604-P
Video Intercom Network Bundle
UD17076B

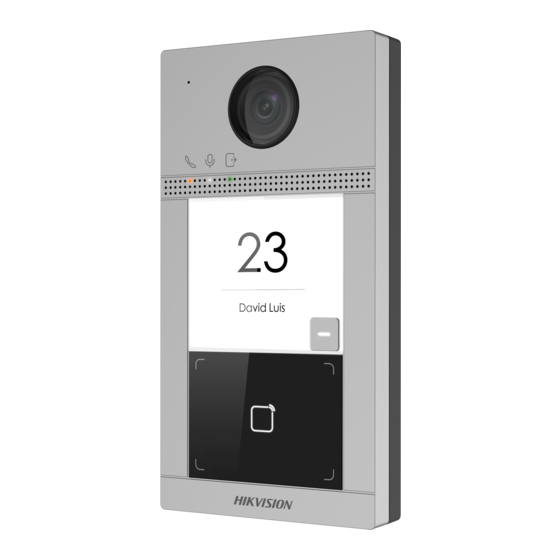

DS-KV8113-WME1
E N G L I S H
Video Intercom Villa Door Station
Diagram References
Appearance
1
4
5
1
2
Indicator
3
Camera
Loudspeaker
Button
Microphone
6
Card Reader Area
7
IR Light
8
Micro SD Card Slot & Debugging Port
9
LAN
10
Terminals
Note: Debugging port is used for debugging only.
Indicator Description
Unlock : Green
Call: Orange
Communicate: White
2
Terminal and Wiring
NC: Door Lock Relay Output (NC)
485+: RS-485 Interface (Reserved)
NO: Door Lock Relay Output (NO)
485-: RS-485 Interface (Reserved)
COM: Common Interface
12 VDC IN: Power Supply Input
AIN1: For the access of Door Contact
GND: Grounding
AIN2 & AIN4: Reserved
LAN: Network Interface
AIN3: For the access of Exit Button
Note: Refers to the picture for typical application.
3
Installation Accessory
1
2
Mounting Template
Mounting Plate
Note: The dimension of the mounting plate is 174 mm × 83.66 mm × 18 mm.
Installation
4
Note: Video intercom villa door station supports flush mounting and surface mounting.
Before you begin:
Make sure all related equipments are power-off during the installation.
Tools that you need to prepare for installation: Drill (ø2.846) and gradienter.
Surface Mounting without Protective Shield
1. Stick the mounting template on the wall. Drill screw holes according to the mounting
template. Remove the template from the wall.
2. Secure the mounting plate on the wall with 4 supplied screws according to the screw
holes.
3. Secure the device on the mounting plate with 4 supplied set screws.
4. Fix the cover onto the device with the screw.
Flush Mounting without Protective Shield
1. Stick the mounting template on the wall. Drill the hole according to the mounting
template. Remove the template from the wall.
Note: The suggested size of hole is 175 mm × 84 mm × 19 mm.
2. Install the gang box into the hole with 4 screws.
3. Insert the device to the gang box. Secure the device with 4 supplied screws.
4. Fix the cover onto the device with the screw.
Configuration via Web
5
Activate Device via Web
1
You are required to activate the device first by setting a strong password for it before
you can use the device.
Default parameters of door station are as follows:
Default IP Address: 192.0.0.65.
Default Port No.: 80.
Default User Name: admin.
1. Power on the device, and connect the device to the computer with network cable.
2. Enter the IP address into the address bar of the web browser, and click Enter to enter
the activation page.
Note:The computer and the device should belong to the same subnet.
3. Create and enter a password into the password field.
4. Confirm the password.
5. Click OK to activate the device.
Note: When the device is not activated, the basic operation and remote configuration of
device cannot be performed.
Access to the Device by Web Browsers
2
1. In the browser address bar, enter the IP address of the device, and press
the Enter key to enter the login page.
2. Enter the user name and password and click Login.
Communicate with Indoor Station
3
Note: Configure the room No. of the indoor station which is linked to the villa door
station. Refer to Video Intercom Indoor Station User Manual for details.
1. Click Settings → Intercom → Press Button to Call to enter the settings page.
2. Set the parameters.
-Edit call No. for every button. By default, you can press button to call room 1.
-Check Call Management Center to set the button calling center.
Note: If you check Call Management Center and set the call No. as well, call management
center has higher privilege than call No.
3. Press button to call indoor station.
Issue Card
4
1. Click Settings → Access Control and Elevator Control to enter the corresponding settings
page.
2. Click Issue Card. Present the card on the card reading area.
3. When issuing finished, the windows pop up on the settings page.
Only Mifare card supported, and Mifare card with non-standard shape is
recommended.
Up to 10000 cards can be issued and managed by V series door station. A voice
prompt (No more cards can be issued.) can be heard when the issued card amount
exceeds the upper limit.
5
Unlock Door
After issuing cards, you can unlock the door by presenting the issued card.
Refer to Video Intercom Villa Door Station User Manual (scan the QR code) for details.
1
1
2
2
4
Surface Mounting without Protective Shield
3
4
Cover
Screws
Villa Door Station
3
4
8
2
5
6
7
1
2
Mounting Plate
Mounting Template
Wall
9
10
RS-485
AlARM IN
DOOR2
DOOR1
3
1
Hole1
Hole1
102023115
The recommended distance from the ground level is
1.40m and it is adjustable depends on the height of body.
Hole2
Hole3
Hole1
Hole1
Hole2
Flush Mounting without Protective Shield
3
4
Cover
Screws
Villa Door Station
Gang Box
POWER
LAN
2
83.66mm
18mm
1
2
Wall

Publicidad

loading

Resumen de contenidos para HIKVISION DS-KIS604-P

  • Página 1 DS-KIS604-P Video Intercom Network Bundle UD17076B DS-KV8113-WME1 E N G L I S H Video Intercom Villa Door Station Diagram References Appearance Indicator Camera Loudspeaker Button Microphone Card Reader Area IR Light Micro SD Card Slot & Debugging Port Terminals Note: Debugging port is used for debugging only.
