- Página 1 Isotemp ® Shaking and General Purpose Water Baths User's Manual Manual P/N U01318 Rev. 04/04/2016...
-
Página 3: Tabla De Contenido
Table of Contents Quick Start Guides Preface ............................P-1 Compliance ......................... P-1 Unpacking ........................... P-1 After-Sale Support ....................... P-1 Warranty..........................P-2 Chapter 1 Safety ..........................1-1 Safety Factors ........................1-1 Chapter 2 General Information ......................2-1 Description .......................... 2-1 Intended Use ........................2-1 Specifications ........................ - Página 4 Isotemp Fisher Scientific...
- Página 5 Isotemp Water Bath Quick Start Guide This quick start guide is intended for initial start up only. For all other procedures you must refer to the manual. Also, if any of these steps are not clear refer to the manual before proceeding.
-
Página 6: Selecting A Preset
Viewing/Changing the Shaker Speed (SWB only) You can view/change the speed value with the bath running or not. From the home screen press the soft key below to display: Press, and hold, the arrow keys to bring up the desired value. The values are 0 and 30 to 200. - Página 7 Kurzanleitung Diese Kurzanleitung ist nur für die erste Inbetriebnahme vorgesehen. Für alle anderen Verfahren müssen Sie im Handbuch nachsehen. Auch wenn irgendwelche Schritte unklar sind, schaue Sie im Handbuch nach, bevor Sie fortfahren. Befüllung Stellen Sie sicher, dass der Ablauf des Behälters geschlossen ist und dass alle Anschlüsse sicher angeschlossen oder verschlossen sind. Achten Sie außerdem darauf, dass vor dem Befüllen des Behälters alle Rückstände gründlich entfernt wurden.
- Página 8 Anzeigen/ändern der Rüttelgeschwindigkeit (nur SWB) Die Geschwindigkeitseinstellung lässt sich sowohl bei eingeschaltetem als auch bei ausgeschaltetem Bad anzeigen/ändern. Vom Einstiegsbildschirm aus drücken Sie die Schaltfläche unten zur Anzeige von: Drücken Sie die Pfeiltasten, und halten Sie diese gedrückt, bis der gewünschte Wert erscheint.
- Página 9 Guide de démarrage rapide Ce guide de démarrage rapide est destiné à la mise en marche initiale uniquement. Pour toute autre procédure, merci de vous référer au manuel. De plus, si l’une de ses étapes ne vous paraît pas claire, téléchargez le manuel avant de commencer.
-
Página 10: Modification De La Température Définie
Affichage/modification de la vitesse d’agitation (SWB uniquement) Vous avez la possibilité d’afficher/de modifier la vitesse, que le bain soit en cours d’utilisation ou non. À l’écran d’accueil, appuyez sur la touche se trouvant sous pour afficher : Appuyez sur les touches flèche et maintenez-les enfoncées jusqu’à atteindre la valeur désirée. -
Página 11: Puesta En Marcha
Guía de inicio rápido Esta guía de inicio rápido se ha creado únicamente para el arranque inicial. Para obtener información sobre el resto de procedimientos, debe consultar el manual. Asimismo, en caso de que tuviera dudas sobre alguno de estos pasos, consulte el manual antes de continuar. -
Página 12: Visualización/Modificación De La Velocidad Del Agitador (Solo Swb)
Visualización/modificación de la velocidad del agitador (solo SWB) Puede ver/modificar el valor de la velocidad con la bañera en marcha o parada. En la pantalla de inicio, pulse la siguiente tecla multifunción para mostrar: Pulse y mantenga pulsadas las teclas de flecha para que aparezca el valor deseado. Los valores pueden ser 0 y de 30 a 200. -
Página 13: Guia De Início Rápido
Guia de início rápido Este guia de início rápido destina-se apenas ao arranque inicial. Para todos os outros procedimentos, consulte o manual. Além disso, se qualquer uma dessas etapas não estiver clara, consulte o manual antes de prosseguir. Preenchimento Certifique-se de que a porta de drenagem do reservatório esteja fechada e que todas as conexões do encanamento estejam firmemente sondadas ou tampadas. -
Página 14: Visualizar/Alterar A Velocidade Do Agitador (Apenas Swb)
Visualizar/alterar a velocidade do agitador (apenas SWB) Você pode visualizar/alterar a velocidade com o banho funcionando ou parado. Na tela inicial, pressione a tecla de função abaixo para exibir: Pressione e segure as teclas de seta para exibir o valor desejado. Os valores são 0 e 30 a 200. -
Página 15: Preface
We recommend two people lift heavier baths from the bottom. After-sale Support Fisher Scientific is committed to customer service both during and after the sale. If you have questions concerning the bath operation, or questions concerning spare parts or Service Contracts, call our Sales, Service and Customer Support. -
Página 16: Warranty
Preface Warranty The Isotemp products distributed by Fisher Scientific ("Fisher"), Fisher warrants to the direct ® purchaser that the product will be free from defects in material or workmanship for a period of one year from the date of delivery. Fisher will repair or replace the product or provide credit, as its sole option, upon prompt notification and compliance with its instructions. -
Página 17: Chapter 1 Safety
This label indicates the presence of hot surfaces. This label indicates read the manual. This label indicates a hand crushing hazard. (Shaking Water Bath only) Observe all warning labels. Never remove warning labels. Fisher Scientific Isotemp... - Página 18 We recommend stopping the shaker table when loading/removing samples or vessels. Refer service and repairs to a qualified technician. Performance of installation, operation, or maintenance procedures other than the ones described in this manual may result in a hazardous situation and will void the manufacturer's warranty. Isotemp Fisher Scientific...
-
Página 43: Chapter 2 General Information

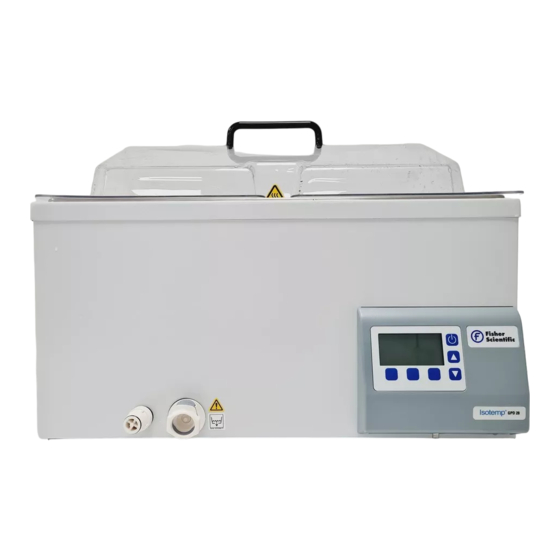

Chapter 2 General Information Description All Fisher Scientific Isotemp Water Baths provide constant temperature to applications placed in the reservoir. All have digital displays, four programmable set point temperatures, acoustic and optical alarms, and offer adjustable high temperature protection. The interior of the bath is constructed of stainless steel and is designed for operation with water. - Página 44 Specifications obtained at sea level using water. Bath depth includes bezel, height does not include lid. Fisher Scientific takes no responsibility for damages caused by the selection of an unapproved fluids. Fisher Scientific reserves the right to change specifications without notice.
- Página 45 Thermal beads may be used instead of water but they will degrade the bath's uniformity and stability. Bath depth includes bezel, height does not include lid. Fisher Scientific takes no responsibility for damages caused by the selection of an unapproved fluids. Fisher Scientific reserves the right to change specifications without notice.
- Página 46 Thermal beads may be used instead of water but they will degrade the bath's uniformity and stability. Bath depth includes bezel, height does not include lid. Fisher Scientific takes no responsibility for damages caused by the selection of an unapproved fluids. Fisher Scientific reserves the right to change specifications without notice.
-
Página 47: Chapter 3 Installation
The bath is designed for continuous operation and for indoor use. Never place the bath in a location where excessive heat, moisture or corrosive CAUTION materials are present. Ventilation No special ventilation clearances are required. Cover Installation Figure 3-1 – Shaking and GPD Bath Cover Installation Fisher Scientific Isotemp... -
Página 48: Electrical Requirements
The following plug types are available: Bath Volts /Hertz/Phase Plug Type GPD (All) 100-115/50-60/1 N5-15 SWB 15 200-230/50-60/1 Country Specific SWB 27 100-115/50-60/1 N5-20 200-230/50-60/1 Country Specific 1. Volts ± 10% 20 Amp Outlet 15 Amp Outlet Isotemp Fisher Scientific... -
Página 49: Approved Fluids
To help alleviate bacteria or algae growth Fisher Scientific recommends the use of small amounts of chlorine. The usage of chlorine needs to be monitored over time in order to prevent the formation of corrosion. - Página 50 1 MΩ-cm resistivity, or less, is recommended. Recommended Biocides and Inhibitors Fisher Scientific offers a biocide and inhibitor package Thermo 200 (Nalco) premixed with five gallons of water or as a kit to be added to water.
- Página 51 Tap water is not normally recommended because the total ionized solids level may be too high. As an example, tap water in the United States averages 171 ppm (of NaCl). The recommended level for use in a water system is between 0.5 to 5.0 ppm (of NaCl). Fisher Scientific Isotemp...
-
Página 52: Filling Requirements
This mode also derates the bath's stability and uniformity capability. Figure 3-2 – Thermal Beads Reservoir Plug Isotemp Fisher Scientific... -
Página 53: Draining
When the flow stops remove the hose and reinsert it back into the housing. Figure 3-3 – GPD Bath Drain Hose Accessories Only use the accessories supplied by Fisher Scientific. CAUTION Drain Kit Accessory Coupler • Before filling the bath remove the drain plug from the bath drain. - Página 54 Chapter 3 Installation Isotemp Fisher Scientific...
-
Página 55: Chapter 4 Operation
Chapter 4 Operation Chapter 4 Operation Controller The Fisher Scientific Isotemp Water Baths have digital controllers that display the bath’s reservoir fluid temperature, shaker speed and other bath features. Once the circuit protector on the back of the bath is on, press to start/stop the bath. -
Página 56: Start Up
CAUTION may shift and break when shaking is engaged. Flask clips and trays are available from Fisher Scientific. Do not run the bath until fluid is added to the reservoir. Have extra fluid on hand. If the bath does not start refer to Chapter 6 Troubleshooting. -
Página 57: Changing The Set Point
Note After a 30 second delay if neither key is pressed the display returns to the home screen, any change is saved. Fisher Scientific Isotemp... -
Página 58: Changing A Setting
. See Chapter 6. Press, and hold, an arrow key to change the temperature. Once the desired value is displayed press to save the change or 95. °C not save the change. Press to return to the home screen. Isotemp Fisher Scientific... - Página 59 This mode also derates the bath’s stability and uniformity capability. Press to return to the home screen. Fisher Scientific Isotemp...
-
Página 60: Selecting A Preset
As an example, if the temperature is stabilized and displaying 20°C but a calibrated reference thermometer reads 20.5°C, set the RTA to -0.5°C. After you enter an RTA value allow the display to stabilize before verifying the bath temperature. Note The RTA applies only to the selected preset. Isotemp Fisher Scientific... -
Página 61: Temperature Display
• For bath shut down place the circuit protector located on the rear of the bath to the O position. • To disconnect the bath remove the electrical plug from its power source. Fisher Scientific Isotemp... - Página 62 Chapter 4 Operation Isotemp Fisher Scientific...
-
Página 63: Chapter 5 Preventive Maintenance
If corrosion (e.g., small rust marks) occur in spite of this, cleaning with stainless steel caustic agents has proved to be suitable. Apply these substances according to the manufacturer's recommendations. Fisher Scientific Isotemp... -
Página 64: Electrical Power Cord
If required, use the 3/32" Allen to loosen two set screws on the eccentric and reposition the disc. Optical Disc Set Screws (located under the disc) Shaker Assembly Check the shaker assembly for looseness annually. Contact Fisher Scientific if excessive movement is noted. Isotemp Fisher Scientific... -
Página 65: Chapter 6 Troubleshooting
Low Fluid Level low level protection limit exceeded check fluid level check for leaks Open/Shorted Internal Temp Sensor the bath must be serviced by an authorized Fisher Scientific Temperature Control Service Technician. Fisher Scientific Isotemp... -
Página 66: Checklist
• Ensure bath installation complies with the site requirements in Chapter 3. • Make sure supply voltage matches bath's nameplate rating ±10%. Please contact Fisher Scientific Sales Service and Customer Support if you need any additional information. Isotemp Fisher Scientific...
