Behringer MONITOR 1C Manual De Instrucciones

Product Manual

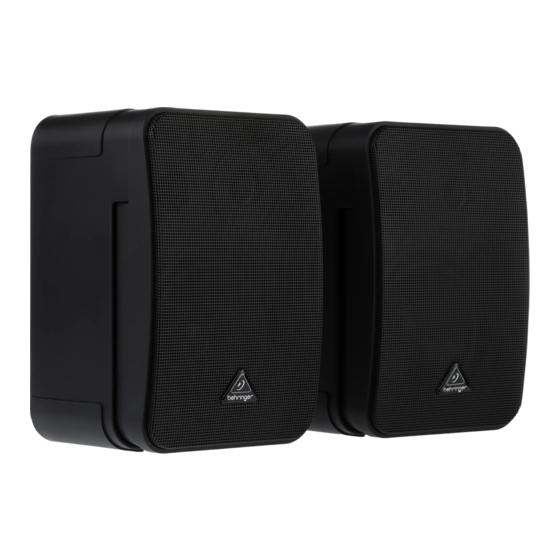

MONITOR SPEAKERS 1C
Ultra-Compact Monitor Speakers
1
MONITOR SPEAKERS 1C
Specifications
Connector type Clip terminal
Wire diameter < 4 mm
Power capacity 25 W RMS, 100 W Peak
Impedance 4 Ω
Frequency range 60 Hz to 23 kHz (-10 dB)
Nominal sound pressure level (SPL) 86 dB*W/m (program, bandwidth
100-5000 Hz on axis, full space)
Max. short term acoustic output 112 dB @ 1m (on axis, half space)
Tweeter ½"
Woofer 5 ½"
Crossover frequency 5000 Hz
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these
efforts, modifications may be made from time to time to existing products without prior notice.
Specifications and appearance may differ from those listed or illustrated.
PRODUCT MANUAL
Wiring
◊
The MONITOR 1C is capable of producing extreme volumes. Please note
that high sound pressures may cause temporary or even permanent
hearing damage. Be careful to select a suitable volume.
Always mute your amp before connecting the speakers. Use loudspeaker cables with
a diameter of up to 4 mm (AWG 6).
Connect your MONITOR 1C to the amplifier as shown in the illustration:
Press the connector clamps on the back of the speaker and insert the bare end
of the loudspeaker cable, paying attention to correct polarity. Let go of the connector
to secure the cable. Connect the second loudspeaker the same way.
◊
Make sure that bare wire ends never touch the open end of another
speaker cable, speaker connectors or metal parts of your amp.
◊
If you let your Monitor 1C loudspeakers run at or near their power limit,
the integrated protective circuitry may temporarily disconnect the
tweeters. Lower the volume to allow the tweeter to automatically
come online again. In this case, there is no danger of causing
permanent damage. If you turn up treble on your amplifier,
the protective circuitry may intervene.
Important Safety Instructions
Read these instructions.
(1)
Keep these instructions.
(2)
Heed all warnings.
(3)
Follow all instructions.
(4)
Do not use this apparatus near water.
(5)
Clean only with dry cloth.
(6)
Be sure to mount your speakers on a solid, stable and level base or stand.
(7)
Vibrating floors do not provide reliable support for speaker enclosures or stacks.
Do not install near any heat sources such as radiators, heat registers, stoves,
(8)
or other apparatus (including amplifiers) that produce heat.
Only use attachments/accessories specified by the manufacturer.
(9)
Use only with the cart, stand, tripod, bracket, or table specified
(10)
by the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/device combination to avoid injury
from stumbling.
Refer all service to qualified service personnel. Service is required when
(11)
the unit has been damaged in any way, liquid has been spilled or objects
have fallen into the apparatus, the unit has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Do not block any ventilation openings. Install in accordance with the
(12)
manufacturer's instructions.
