Uline H-2268 Solución De Problemas

H-2268

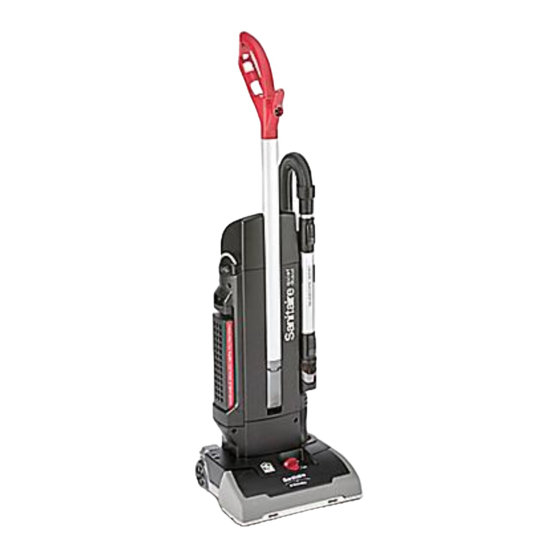

SANITAIRE UPRIGHT VACUUM
®
OPERATING ISSUE
Belts continue to break.
If there is little or no suction.
Vacuum turns off while in use.
Vacuum has a burning smell.
Brushes aren't turning.
PAGE 1 OF 3
1-800-295-5510
uline.com
TROUBLESHOOTING
1. The agitator bar should be positioned so the belt lines up
with the grooves on the bottom frame of the vacuum.
2. Ensure that vacuum is set to correct carpet height setting.
(See Instructions)
1. There may be a clog in the hose. Take the hose apart at the
top and bottom and remove the clog.
2. Clean or replace the HEPA filter assembly and/or pre-motor
filter.
3. Ensure that vacuum is set to correct carpet height setting.
(See Instructions)
4. Check suction control valve to ensure it is set correctly.
Can be set to Hose or Floor Cleaning.
1. The machine may turn off due to overheating.
2. Check to make sure nothing is caught on the brush roll and
check for clogs.
3. You will need to press the reset button to restart the brush.
1. The belt may be damaged or something may be caught in
the brush roll.
2. Check brush roll for obstruction.
3. Replace belt. (See Instructions)
1. Check suction control valve to ensure that it is turned to
floor cleaning.
2. Make sure vacuum is lowered into cleaning position.
(Will not spin in upright storage position.)
Para Español, vea página 2.
Pour le français, consulter la page 3.
RECOMMENDATIONS
0321 TH-2268
