Installation
6 – 7,5
Handling
Grid connection
34

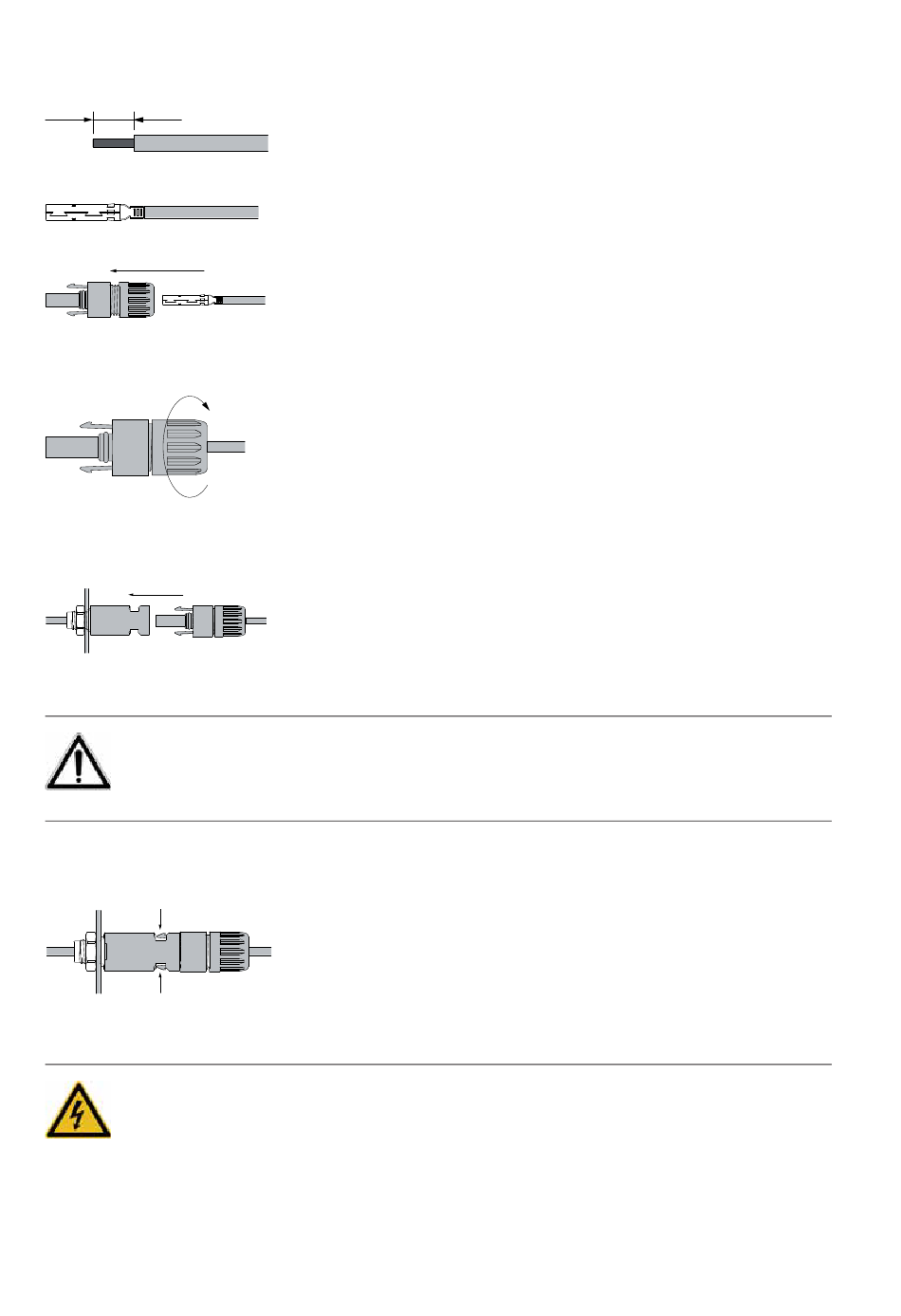

The following sequence must be observed during assembly:
1. Strip the voltage-free line. Make sure that no individual wires are cut.
2. Use the Multi-Contact crimping pliers for the circular contact.
3. Push the crimped contact into the socket or plug insulator until it engages. Pull
gently on the cable to check that the metal component has locked into place.
4. Assembly test: Push a test pin the right way into the plug or the socket as far as
it will go. If the contact has been correctly assembled, the white marking on the
test pin will remain visible.
5. Tighten the cable gland using a Multi-Contact PV-MS assembly tool with 2.5 - 3
Nm.
Connecting socket and plug:
Connect the coupling components until they engage. Verify proper engagement by
squeezing the tabs by hand or with the PV-MS tool and separating the cable coup-
ling.
CAUTION
CAUTION
The DC connectors must not be separated under load. The DC circuit must be inter-
rupted with the DC circuit breaker.
Release the connection by squeezing the tabs by hand or with the PV-MS tool and
separating the cable coupling.
DANGER
Extreme danger from electric shock!
x Touching live parts can result in death.
x All electrical work must be carried out by a qualified electrician while observing
the VDE regulations, national and other regulations.
IPE 2700 - 5000 SN 05
