H-7863

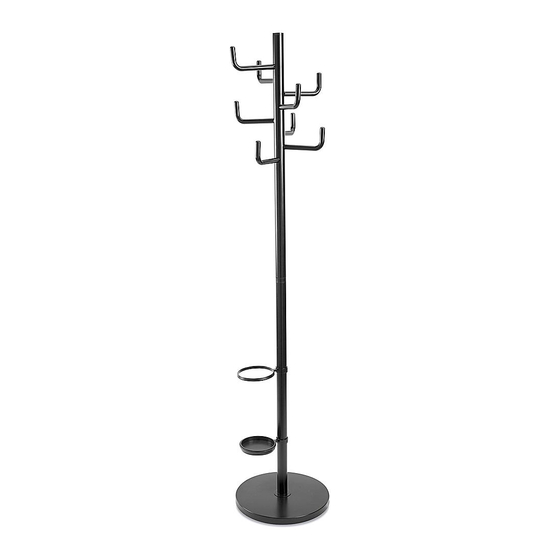

COAT TREE
TOOLS NEEDED
Rubber Mallet
Wrench
(included)
Base x 1
Coat Hook x 8
1.
Screw connecting screw
into top of lower vertical
pole. Attach connecting
ring to connecting screw.
Slide upper vertical pole
into connecting ring to
attach to lower vertical
pole. (See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Bolt x 1
Connecting Plate x 2
Upper Vertical
Lower Vertical
Pole x 1
ASSEMBLY
Figure 1
Upper
Vertical Pole
Connecting
Ring
Connecting
Screw
Lower
Vertical Pole
PARTS
Connecting Ring x 1
Umbrella Ring x 2
Pole x 1
2. Place assembled pole over one connecting plate
and position over hole on top of base. Use bolt to
attach remaining connecting plate to bottom of
base, using wrench to tighten to lower vertical pole.
(See Figure 2)
Figure 2
Connecting Plates
Base
Wrench
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Connecting Screw x 1
Umbrella Tray x 1
Bolt
0721 IH-7863
