Prefix / Adjustment output function
Prefix / Adjustment with EasyTeach by Wire (ETW):
The menu for the output functions starts by activating the EasyTeach connection (Teach wire / Teach
pin with the supply voltage UB+) before switching on the supply voltage. By continuing to hold the
EasyTeach connection actively the menu goes through the various tiers of the output functions in an
infinite loop. The menu always starts with the output function Antivalent and changes every 5 seconds.
The desired output function is set by disconnecting the wire.
Prefix / Adjustment with EasyTeach by Magnet (ETM):
The menu for the output functions starts by holding the EasyTeach magnet on the EasyTeach spot
before switching on the supply voltage. By continuing to hold the EasyTeach magnet on the
EasyTeach spot the menu goes through the various tiers of the output functions in an infinite loop.
The menu always starts with the output function Antivalent and changes every 5 seconds. The desired
output function is set by removing the EasyTeach magnet.

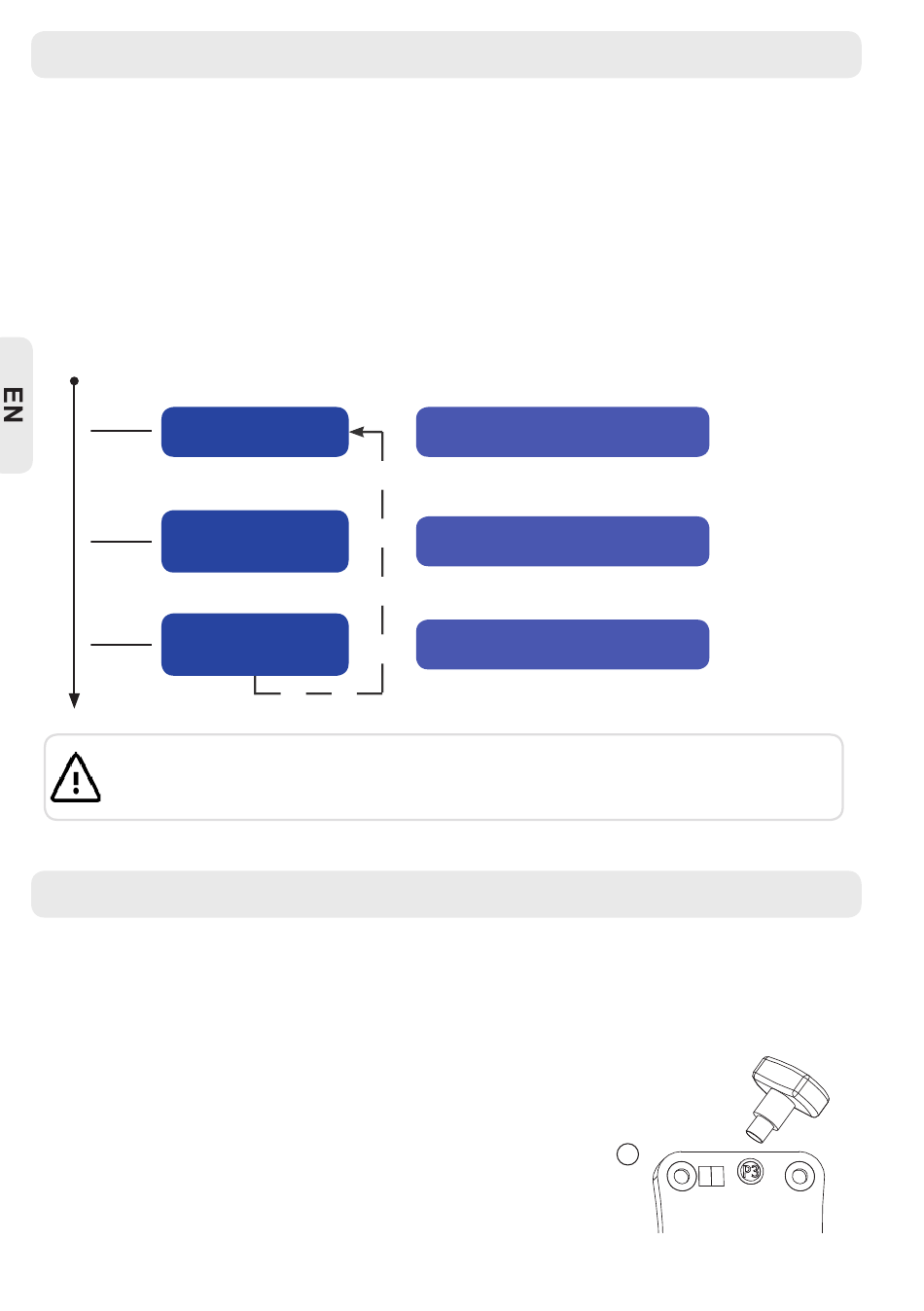

Output function
Antivalent*
2 x Normally
2 x Normally
Attention:
When switching the output function from Normally Open / Normally Closed to Antivalent, S2 will
be faded out. The adjusted S1 switches Antivalent then. When switching back to Normally Open
/ Normally Closed S2 has the pre-adjusted value.

EasyTeach philosophy

Adjustment of the sensitivity with EasyTeach by Wire (ETW) (after switching on the supply voltage):
The EasyTeach menu starts, by activating the EasyTeach connection (Teach wire / Teach pin with the
supply voltage UB+). The menu goes through the different menu items. The desired Menu point is selected
by disconnecting the wire.
Adjustment of the sensitivity with EasyTeach by Magnet (ETM) (after
switching on the supply voltage):
The EasyTeach menu starts, by holding the teach magnet on the EasyTeach
spot. The EasyTeach spot is located next to the LEDs and is marked with
The menu goes through the different menu items. The desired menu item is
selected by removing the teach magnet.
22
open
closed
Optical representation
LED flashes green yellow
LED flashes green
LED flashes yellow
*Delivery configuration
.
P3
