Handle Assembly - Uline H-2533 Instrucciones De Montaje

H-2533
SUPPLY CABINET

HANDLE ASSEMBLY

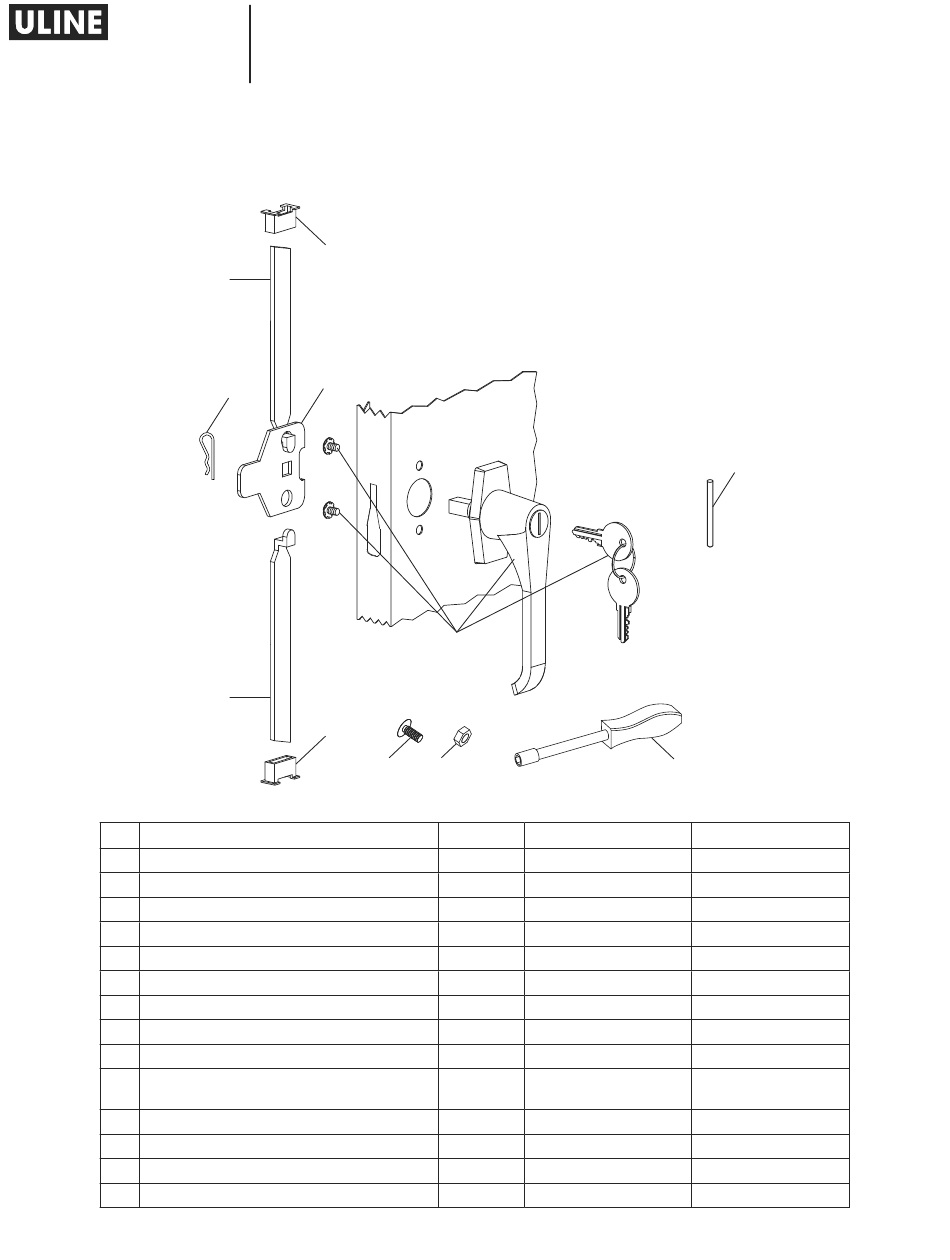

# DESCRIPTION
14 Lock Bar (Set)
15 Door Handle with Keys and Hardware
16 Locking Cam
17 Cotter Pin
18 Lock Bar Guide
19 Hinge Pin
20 Bolt (#8-32 x 3/8")
21 Nut (#8-32)
22 Nut Driver
Replacement Hardware Pack (Not Included)
Bolts #8-32 x 3/8" (72), Nuts #8-32 (72)
Touch Up Paint – Black (Not Shown)
Touch Up Paint – Gray (Not Shown)
Touch Up Paint – Tan (Not Shown)
Extra Keys (Set of 2) (Not Shown)
PAGE 3 OF 9
1-800-295-5510
uline.com
18
14
16
17
14
18
20
15
21
QTY. ULINE PART NO.
1 H-1105-11
1 H-1105-12
1 H-1105-13
1 H-2216-CTRPN
2 H-1105-CBG
6 H-1106-16
31 -----------
47 -----------
1 H-1224-TOOL2
1 H-1224-19
1 H-5361
1 H-5362
1 H-5364
1 H-1105-KEYS
19
22
MFG. PART NO.
944LB
944LH
944LC
CTRPN
944GI
944HP
-----------
-----------
TOOL2
HW-72
-----------
LTUP-2-MGY
LTUP-1-CPY
-----------
1021 PH-2533
