H-8945, H-8946
π
H-8947
TOOL CABINETS
TOOLS NEEDED
12 mm Combination Wrench
13 mm Combination Wrench

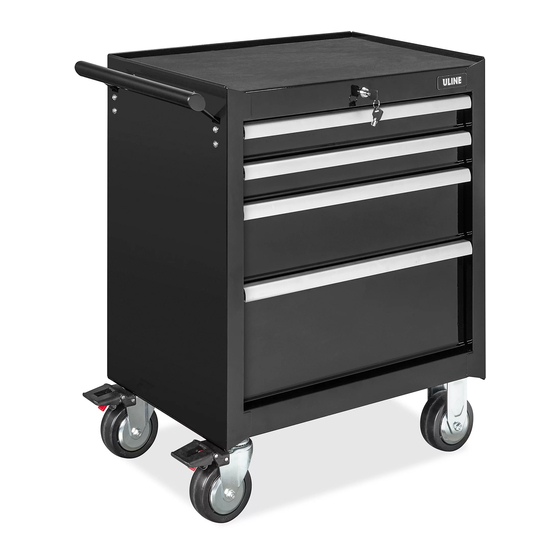

Tool Cabinet x 1
(for H-8945 & H-8946 only)
CAUTION! Do not open more than one loaded
drawer at a time.
• Lock drawers before moving.
• Do not stand on the product. You may fall, which
may cause personal injury.
• Do not mount the product on truck bed or any other
moving object.
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
Phillips Screwdriver
Swivel Caster x 2
Rigid Caster x 2
5/16 x 5/8"
Hex Head Bolt x 16
Hex Head Bolt x 16
(for H-8947 only)
M16 x 15
Screws
PARTS
Handle x 1
M8 x 25
M16 x 15 Screw x 4
SAFETY
• Apply brakes on swivel casters when not moving unit.
• Do not pull. Push to move.
• Do not step in the drawers. You may fall, which may
cause personal injury.
• Lubricate the top and bottom channels of the
drawer slides at least twice a year.
ASSEMBLY
ATTACH HANDLE
1.
Insert handle into slots on side of tool cabinet.
(See Figure 1)
2. Insert four screws with washers through the holes in
the handle. Secure using Phillips screwdriver, but do
not tighten.
3. Once all screws are installed, tighten screws
completely.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Drawer Liner x 4
Cabinet Key x 2
(6 for H-8946)
(11 for H-8947)
Lock Washer x 16
Washer x 4
(for H-8945 &
(H-8947 x 20)
H-8946 only)
1120 IH-8945
Publicidad
Tabla de contenido
Manuales relacionados para Uline H-8945
Resumen de contenidos para Uline H-8945
- Página 1 Tool Cabinet x 1 Hex Head Bolt x 16 Hex Head Bolt x 16 H-8946 only) (for H-8945 & H-8946 only) (for H-8947 only) SAFETY CAUTION! Do not open more than one loaded • Apply brakes on swivel casters when not moving unit.
-
Página 2: Drawer Removal
3. Thread bolts with washers into holes using 12 mm or 13 mm wrench, but do not tighten completely. NOTE: For H-8945 and H-8946: use 5/16 x 5/8" hex head bolts and lock washers with 12 mm Figure 2 wrench. -
Página 3: Ensamble
5/16 x 5/8" M8 x 25 4 Tornillos M16 x 15 Seguridad 20 H-8947 1 Carrito de 16 Pernos de Cabeza 16 Pernos de (solo para H-8945 Herramientas Hexagonal (solo para Cabeza Hexagonal y H-8946) H-8945 y H-8946) (solo para H-8947) SEGURIDAD •... -
Página 4: Continuación Del Ensamble
3. Enrosque los pernos con rondana en los orificios usando una llave de 12 mm o 13 mm, pero no los Diagrama 2 apriete por completo. NOTA: Para el H-8945 y H-8946: use pernos de cabeza hexagonal 5/16 x 5/8" y rondanas de Empuje el lado Diagrama 3 seguridad con una llave de 12 mm. -
