Max GS683RH-EX Manual De Operaciones Y Mantenimiento página 21

Deeper Shallower
Adjustment Dial
Contact Arm
Contact Tip
Hook
Hexagon Socket
Head Bolt

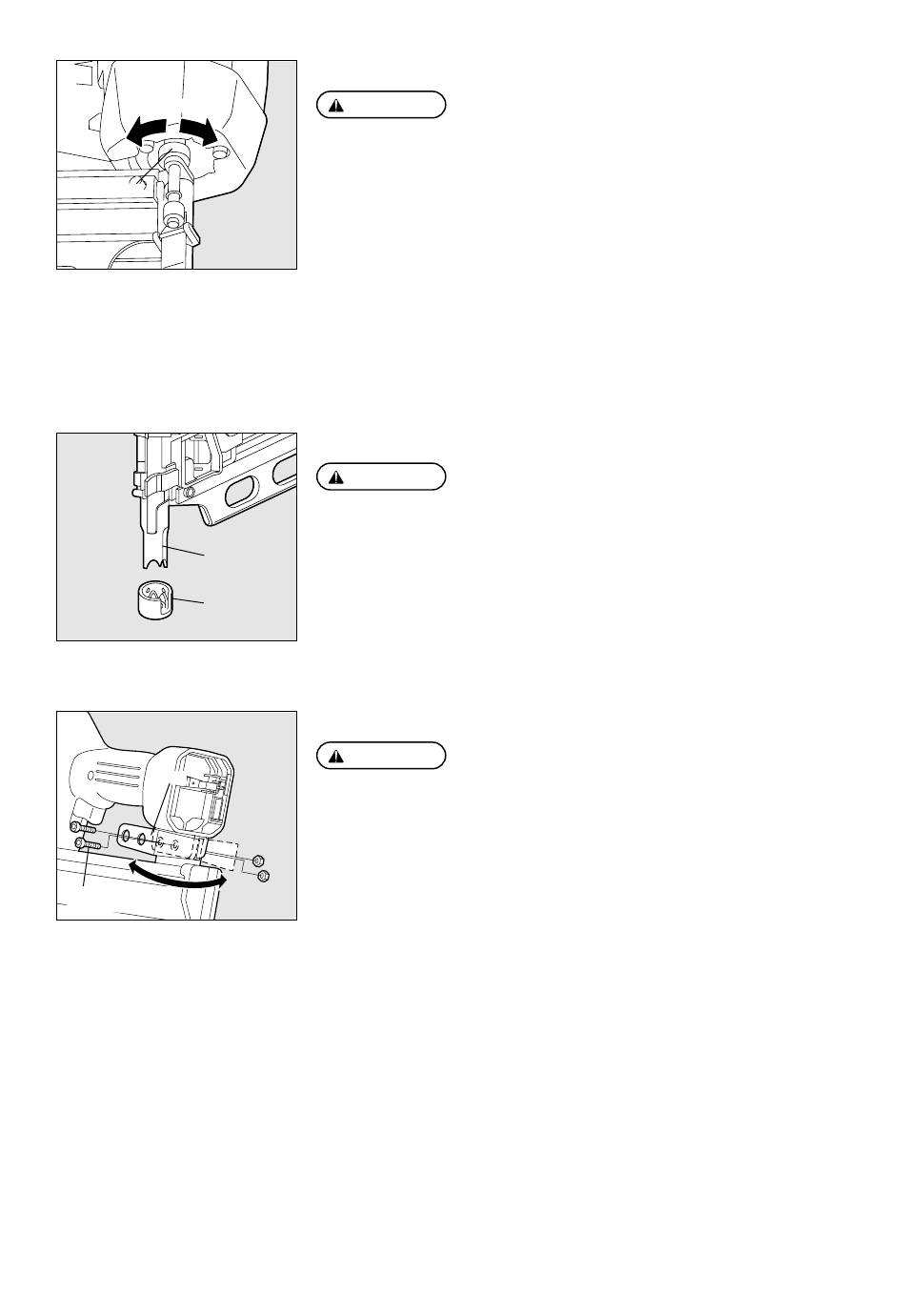

DRIVING DEPTH ADJUSTMENT
WARNING:
● ALWAYS remove Fuel Cell and Battery before making adjustment.
● Pay attention for heating-up of the Adjustment Dial.
● The adjustment Dial may become hot when the tool has been used constantly.
The driving depth adjustment is made by adjusting the Adjustment Dial.
q With Fuel Cell and Battery set, drive a few nails into a representative material
sample to determine if adjustment is necessary.
w If adjustment is required, remove Fuel Cell and Battery.
e Refer to the mark on the Magazine for direction to turn the Adjustment Dial.
r Reinstall Fuel Cell and Battery.
CONTACT TIP (OPTION)
WARNING:
● ALWAYS remove Fuel Cell and Battery before attaching / detaching the
contact tip.
Attach the Contact Tip on the tip of Contact Arm, when driving nails to a soft material.
CHANGING THE HOOK DIRECTION
WARNING:
● Remove the Fuel Cell and Battery.
The Hook can be directed in the two directions. Remove the hexagon socket head bolts
with hexagonal wrench, change the direction, and then, put back the bolts to
reassemble.
21
