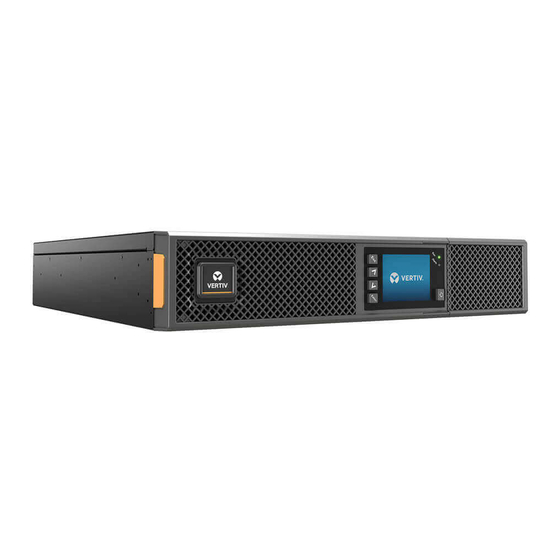

LIEBERT® GXT5™ UPS
230 -V 8,000 – 10,000 VA
Quick Installation Guide
MODEL DESIGN CONFIGURATIONS MODEL DESIGN CONFIGURATIONS
GXT5-8000/10KIRT5UXLN GXT5-8000/10KIRT5UXLN
& 8000/10KIRT5UXLE & 8000/10KIRT5UXLE
2 4 2 4 6 6
1 1 3 3 5 5 7 8 7 8
14
16 15 13
IMPORTANT: Before installing,
connecting to supply or operating
your Liebert GXT5 UPS, please
review the Safety and Regulatory
Statements sheet. For detailed
installation, operating, maintenance
and troubleshooting information
refer to the GXT5 User Guide for
your model available at
www.VertivCo.com.
INSTALLATION
1. Inspecting the UPS
Inspect the UPS for any signs
of obvious damage. If damage
is visible, do not proceed and
call our warranty support line
for assistance at 1-800-222-
5877 menu option 3, or email at
microups.warranty@vertivco.
com.
2. Choosing a location
Install the UPS in a
temperature-controlled
environment that is free of
corrosive and conductive
contaminants. Avoid locations
near heat or water sources and
9 9 10
12 12 11 11
1 Liebert® IntelliSlot™ Port
2 Terminal-block communication connectors
3 RS-485 port
4 USB port
5 RS-232 port
6 REPO connector
7 External-battery-cabinet connector
8 Output circuit breaker
9 Maintenance-bypass breaker
10 Bypass ciruit breaker
11 Input circuit breaker
12 Removable POD with knock-outs/cable-entry for hard-wire I/O
13 Programmable C19 output receptacle
14 Overload protector, 10-A
15 Programmable C13 output receptacles
16 Overload protector, 15-A (x4)
17 Programmable output circuit breaker, 15-A
18 Programmable output circuit breaker, 10-A
19 C19 output circuit breaker, 15-A
GXT5-8000/10KHVRT5UXLN
2 4 2 4 6 6
1 1 3 3 5 5 7 8 7 8
19 19 15 15 18 13 13 17
9 9 10
12 12 11 11
590-1968-664A/SL-70328_REV0
