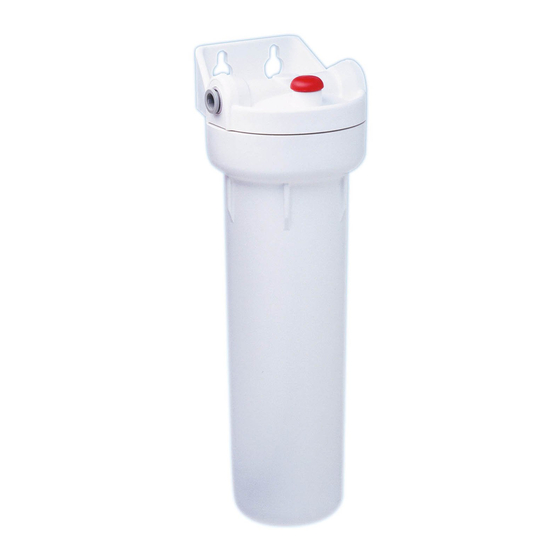

Under-Sink Water Filter
Installation and Operating Instructions
Model US-600
A
Before proceeding with installation, choose the appropriate filter
cartridge and install in housing according to the cartridge replacement
instructions (page 2). See "Filter Cartridge Selection Guide" on page
3 to determine the best cartridge for your filtration needs.
Specifications
Pressure Range: 30–125 psi (2.1–8.6 bar)
Temperature Range: 40–100°F (4.4– 37.7°C)
Parts Included
• filter housing assembly with built-in mounting bracket
and quick-connect fittings
• ⁄ inch (10 mm) tubing
3
8
• (2) quick-connect elbows
• SW-5 housing wrench
A
• D-20 cartridge
A
Tools Required
• screwdriver
• file
• pencil
• pipe cutter or hacksaw
Precautions
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before or after
the system. Systems certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.
Filter must be protected against freezing,
which can cause cracking of the filter and water leakage.
The rubber O-ring provides the water-tight seal
between the cap and the bottom of the housing. It is important
that the O-ring be properly seated in the groove below the
threads of the housing or a water leak could occur.
Because of the product's limited service life and to prevent
costly repairs or possible water damage, we strongly recommend that the
bottom of all plastic housings be replaced every ten years. If the bottom
of your housing has been in use for longer than this period, it should
be replaced immediately. Date the bottom of any new or replacement
housing to indicate the next recommended replacement date.
NOTE:
• For cold water use only.
• Make certain that installation complies with all state
and local laws and regulations.
• The contaminants or other substances removed or reduced
by the selected cartridge are not necessarily in your water. Ask
your local water municipality for a copy of their water analysis,
or have your private well tested by a reputable water testing lab.
Technical Support: 1-800-721-7360 (M-F 8:00 am - 4:30 pm CST)
Optional Materials
• faucet (FCT-1) for use with
D-40 filter cartridge
A
• After prolonged periods of non-use (such as during a vacation)
it is recommended that the system be flushed thoroughly.
Let water run for 5–6 minutes before using.
• The filter cartridge used with this system has a limited service
life. Changes in taste, odor, color, and/or flow of the water being
filtered indicate that the cartridge should be replaced.
• Some harmless bacteria may attack cellulose media cartridges
(such as the D-10). If your cartridge seems to disintegrate or
develops a musty or moldy odor, switch to a synthetic media
cartridge or call Technical Support.
The US-600
IAPMO R&T against NSF/ANSI Standard 42 for
the reduction of Aesthetic Chlorine Taste and Odor.
Systems certified by IAPMO R&T with
cartridges D-10A, D-20A, D-30A, and D-40A.
See Performance Data Sheet, in manual, for specific claims.
Installation
NOTE:
• For standard under-sink installation on
cold water line (copper or PVC pipe).
• Please read all instructions and precautions before
installing and using your US-600A under-sink filter.
• Install filter cartridge in filter housing before proceeding with
installation (see "Filter Cartridge Replacement" on page
• Numbered diagrams correspond with numbered steps.
1. (A) Turn off cold water supply and open nearest faucet
to release pressure in pipes before starting installation.
Place a tray or towels under the cold water line to catch
excess water. (B) Select location under sink where filter
is to be mounted. Use mounting bracket as a template
to mark screw locations. Mount filter in marked location
using mounting bracket.
NOTE: (C) Allow 1 ⁄ inches (33 mm) clearance
1
2
below housing to enable filter cartridge changes.
1
A
B
C
1 ⁄ "
1
2
with D-20 has been certified by
A A
⁄ inch (10 mm)
3
8
2).
2
A
01020691-01021336 REV C 12/19
