ABB Tmax T4 Guia De Inicio Rapido

Tmax
-
DOC. N.° 1SDH000436R0603 L8984
AUX-C - Contatti ausiliari 400 V AC cablati T4-T5-T6 (1Q+1SY e 2Q)
AUX-C - T4-T5-T6 Wired 400 V AC auxiliary contacts (1Q+1SY and 2Q)
AUX-C - Hilfskontakte 400 V AC, verdrahtet, T4-T5-T6 (1Q+1SY und 2Q)
AUX-C - Contacts auxiliaires 400 V CA câblés T4-T5-T6 (1Q+1SY et 2Q)
AUX-C - Contactos auxiliares 400 V CA cableados T4-T5-T6 (1Q+1SY y 2Q)
AUX-C - T4-T5-T6 400V AC预接电缆型辅助触头（1个指示分/合闸+1个脱扣器脱扣指示或2个指示分/合闸）

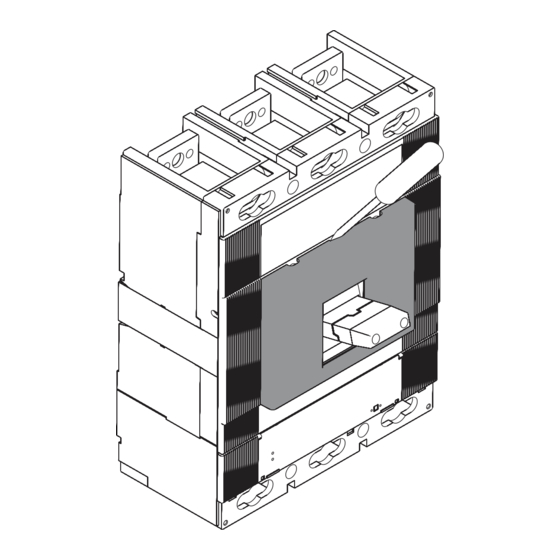

T4-T5-T6
A
1
2
Optional P-W
插入式-抽出式配选
B T4-T5 C
T6
