02 PRODUCT OVERVIEW

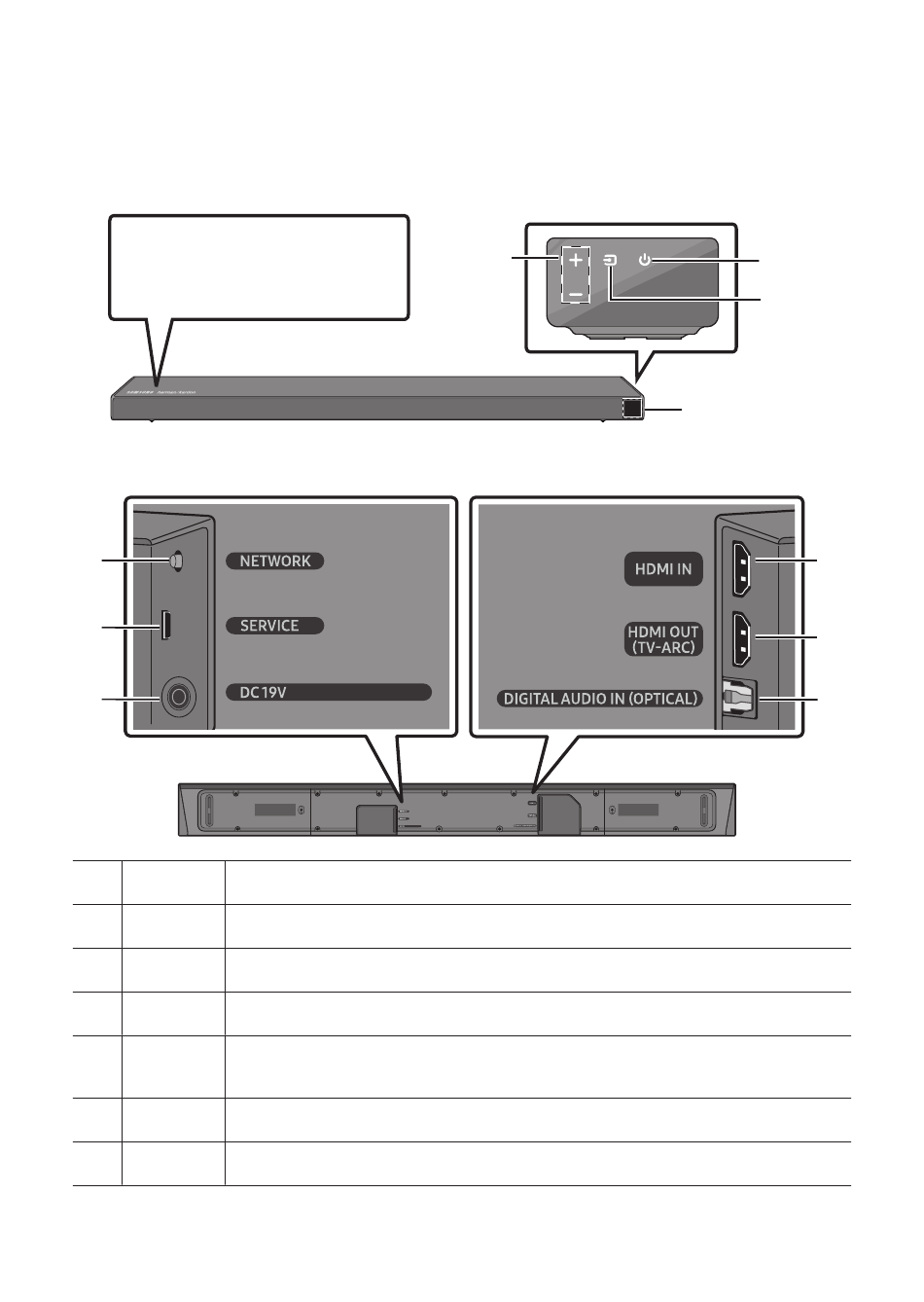

Front Panel / Right Side Panel of the Soundbar

Position the product so that the
"Samsung Harman Kardon" logo is
located on the top.

Bottom Panel of the Soundbar





Source Selects the source input mode. (D.IN / HDMI / WIFI / BT)

NETWORK Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

SERVICE Connect a USB storage device to upgrade the product's software.
 DC 19V Connect the AC/DC power adapter. (Power Supply In)
Inputs digital video and audio signals simultaneously using an HDMI cable.

HDMI IN
Connect to the HDMI output of an external device.

HDMI OUT Connect to the HDMI (ARC) jack on a TV.

D.IN Connect to the digital (optical) output of an external device.
Right Side of the Soundbar
Volume
ENG - 3
Power

Display
