Uline H-7786 Guia De Inicio Rapido

H-7786, H-8258

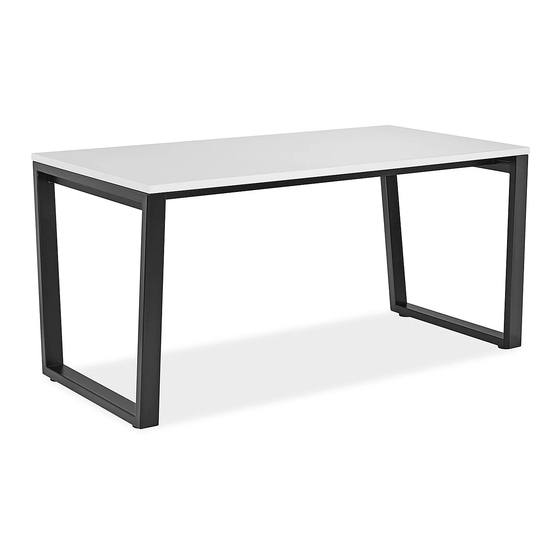

COLLABORATION TABLE –
SINGLE WORKSTATION
TOOL NEEDED
Allen Wrench
(included)
A
M6 x 45 mm
NOTE: Assemble on smooth, non-marring
surface to avoid scratching.
NOTE: Use Allen wrench to tighten bolts.
IMPORTANT! Check that all parts are included.
1. Fit support rail over corresponding bracket on leg.
Use four M6 x 12 mm bolts (D) to secure each side of
support rail. Repeat for remaining support rail.
(See Figure 1)
NOTE: Do not fully tighten bolts until assembly
is complete.
Figure 1
Support Rail
Leg
PAGE 1 OF 3
1-800-295-5510
Two Person Assembly
Recommended
B
Bolt x 6 Bolt x 4
M6 x 15 mm
D
uline.com
PARTS
C
Bolt x 6
M6 x 60 mm
ASSEMBLY
2. With two people, place tabletop on assembled frame.
Align tabletop with holes on legs. (See Figure 2)
Figure 2
Tabletop
3. Attach tabletop to legs using three
M6 x 45 mm bolts (A) per leg. (See Figure 2)
4. Attach tabletop to leg brackets using three
M6 x 15 mm bolts (B) per bracket. (See Figure 2)
5. Attach tabletop to support rails using three
M6 x 60 mm bolts (C) per rail. (See Figure 2)
6. Tighten bolts (D) installed in Step 1.
Para Español, vea página 2.
Pour le français, consulter les page 3.
D
Bolt x 16
M6 x 12 mm
A
B
C
0821 IH-7786
