AIKIDO.34LIGHT-AIKIDO.34LIGHTFI

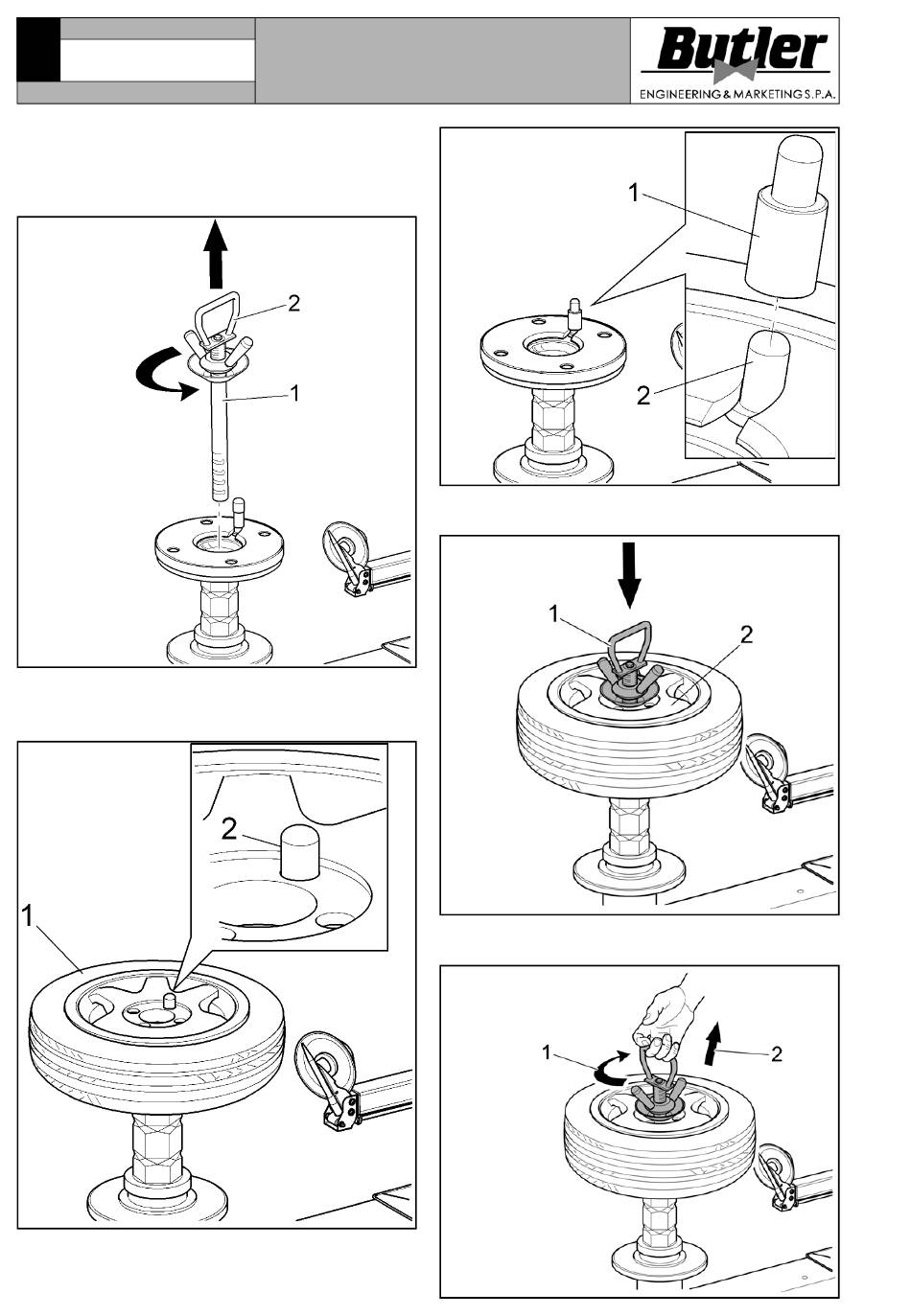

To lock a rim proceed as follows:
1. Extract the central locking shaft and its cone (Fig. 17
pos. 1) through the proper handle (Fig. 17 pos. 2)
and, if necessary, turn it to make easy the extraction.
Fig. 17
2. Dowel the wheel (Fig. 18 pos. 1) on the locking plat-
form and check that the dragging pin (Fig. 18 pos. 2)
enter in a hole placed on the rim hub.
Fig. 18
3. If the wheel hub is higher then the dragger (Fig. 19
pos. 2), use the extension (Fig. 19 pos. 1) supplied
on issue.
All manuals and user guides at all-guides.com
INSTRUCTION, USE AND
MAINTENANCE MANUAL
Fig. 19
4. Insert the shaft and the relative cone (Fig. 20 pos. 1)
on the rim (Fig. 20 pos. 2).
5. Turn of 90° (Fig. 21 pos. 1) and lift the shaft (Fig. 21
pos. 2) to hook it inner the hole.
Fig. 21
Fig. 20
