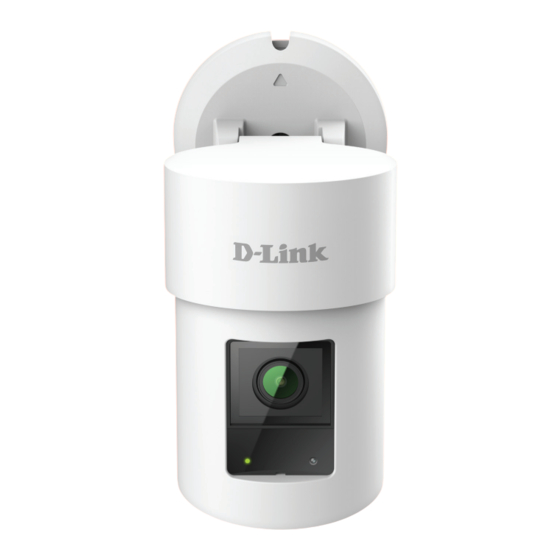

- Página 1 DCS-8635LH 2K QHD Pan & Zoom Outdoor Wi-Fi Camera User Manual 04/09/2021 Hardware: A1 Manual Version: 1.00...
- Página 2 Manual Overview D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.
- Página 3 App Camera Setup ............8 Device Placement ...............10 Mounting the Camera...............11 Pole Mounting ..............11 Wall/ Ceiling Mounting .............12 Using the mydlink App ............14 Controlling Your Device ............14 Device Settings ................16 Troubleshooting ..............18 Technical Specifications ..........19 Regulatory Information ..........21 D-Link DCS-8635LH User Manual...
- Página 4 If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage rating than the one included with your product will cause damage and void the warranty for this product. D-Link DCS-8635LH User Manual...
- Página 5 Introduction No more struggles to find the perfect angle, the DCS-8635LH lets you adjust your camera a full 270-degrees. With vivid QHD 1440p resolution @ 25fps per second, you’ll never miss a moment, and what’s more – built-in AI-based Person Detection cleverly identifies human motion, so you only get alerts when it matters most.
- Página 6 See LED Behavior on page 5 for more information. Microphone Picks up sound near your camera. The IR-Cut removable sensor monitors lighting conditions and switches between color Light Sensor and infrared accordingly. Camera Lens Records video of the surrounding area. D-Link DCS-8635LH User Manual...
- Página 7 Reset Button Speaker Provides audio playback for the two-way audio feature. microSD Card Slot microSD card slot, supports up to 256 GB. Reset Button Hold the recessed button down to reset the camera to factory default settings. D-Link DCS-8635LH User Manual...
- Página 8 Section 1 - Product Overview LED Behavior Status LED Connected to the network and mydlink. Booting up. Ready for set up. Status LED Firmware being updated - do not power off. Timeout for setup - please power cycle the device D-Link DCS-8635LH User Manual...
- Página 9 • Be sure to plug the device into a properly grounded electrical outlet in order to help prevent against electrical shock. • Make sure that the device is firmly mounted. D-Link DCS-8635LH User Manual...
- Página 10 Wireless Installation Considerations The DCS-8635LH 2K QHD Pan & Zoom Outdoor Wi-Fi Camera lets you view video footage from virtually anywhere within the operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range.
- Página 11 Download the mydlink app from the App Store (iOS) or Google Play (Android) by scanning the QR code. Note: Ensure that your device is wirelessly connected to the network that the DCS-8635LH will be in. Launch the mydlink app and create a new account or sign in to your existing account.
- Página 12 Power on the device and wait for the Status LED to flash orange. Note: Make sure that your mobile device’s Bluetooth is on. Place your device next to your mobile device. A prompt will appear - tap Add Device, then follow the app instructions. D-Link DCS-8635LH User Manual...
- Página 13 Person Detection: Person detection works properly when the subject is between 2 to 7 meters (6.5 to 23 feet) away from the camera. Detection accuracy decreases outside of this range. 2 - 2.5m (6.5 - 8ft.) 2m (6.5ft.) Ideal Viewing Distance: 2 - 7 m (6.5 - 23ft.) D-Link DCS-8635LH User Manual...
- Página 14 Then fasten the plastic ties around the pole to secure the base plate. Align the arrow on the camera base with the dot on the base plate and turn clockwise to secure them together. D-Link DCS-8635LH User Manual...
- Página 15 Then use a 6 mm drill bit to drill two 26 mm deep holes. Hammer in the plastic wall anchors to support the screws. Align the base plate over the holes and secure it tightly with screws. D-Link DCS-8635LH User Manual...
- Página 16 Section 2 - Installation Align the arrow on the camera base with the dot on the base plate and turn clockwise to secure them together. Adjust the camera to your desired position. D-Link DCS-8635LH User Manual...
- Página 17 Note: Screenshots are representative only. The mydlink app is constantly being updated and so may appear different. After setting up your DCS-8635LH 2K QHD Pan & Zoom Outdoor Wi-Fi Camera with a mydlink account in the mydlink app, you will be able to remotely access your camera through the app.
- Página 18 Use the icon to tap anywhere on the Point to Go panorama in order to change your live view. Check Around to move the field-of-view D-Link DCS-8635LH User Manual...
- Página 19 To access the Device Settings page: 1. Tap 2. Tap Device Settings. 3. Tap the device you want to access the settings for. The device page contains several options for you to configure your camera. DCS-8635LH-2AE9 D-Link DCS-8635LH User Manual...
- Página 20 You can choose the most suitable time for automatic updates. MAC ID Identifies the device for support issues. Restart Device Tap this button to restart the device Remove Device Tap this button to disconnect this device from your mydlink account. D-Link DCS-8635LH User Manual...
- Página 21 What is my username and password for setting up my device with an ONVIF system? To connect your device to an ONVIF system, enter “admin” as the username and use the PIN code of your mydlink device as the password. You can find the PIN code on your device’s label. D-Link DCS-8635LH User Manual...
- Página 22 • 100 to 240 V AC, 50/60 Hz Power Output • 12V 1A Max. Power Consumption • 7 W Cable Length • Device: 1 m (3.28 ft) • Adapter: 3 m (9.84 ft) Indoor/Outdoor • For outdoor use D-Link DCS-8635LH User Manual...
- Página 23 Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws. microSD card not included. Supports capacity up to 256 GB. D-Link DCS-8635LH User Manual...
- Página 24 2. This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. D-Link DCS-8635LH User Manual...
- Página 25 3.for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate. D-Link DCS-8635LH User Manual...
- Página 26 Max. Output Power (EIRP) Frequenzband Max. Output Power Fréquence bande(s) Consommation d’énergie max. Bandas de Frecuencia Potencia máxima de Salida Frequenza/e Potenza max. Output Frequentie(s) Max. Output Power 2.4 G 2.4 – 2.4835 GHz 100 mW D-Link DCS-8635LH User Manual...
- Página 27 υλικολογισμικό του προϊόντος είναι διαθέσιμα για λήψη από τη σελίδα του προϊόντος στην τοποθεσία www.dlink. com. Par les présentes, D-Link Corporation déclare que ce produit, ces accessoires et ce logiciel sont conformes aux Français [French] directives 2014/53/UE.Le texte complet de la déclaration de conformité de l'UE et le icroprogramme du produit sont disponibles au téléchargement sur la page des produits à...
- Página 28 2014/53/EU. Pełen tekst deklaracji zgodności UE oraz oprogramowanie sprzętowe do produktu można pobrać na stronie produktu w witrynie www.dlink.com. Desta forma, a D-Link Corporation declara que este produto, os acessórios e o software estão em conformidade Português [Portuguese] com a diretiva 2014/53/UE. O texto completo da declaração de conformidade da UE e do firmware...
- Página 29 2014/53/EU. Hela texten med EU-försäkran om överensstämmelse och produkt-firmware kan hämtas från produktsidan på www.dlink.com. Hér með lýsir D-Link Corporation því yfir að þessi vara, fylgihlutir og hugbúnaður eru í samræmi við tilskipun Íslenska [Icelandic] 2014/53/EB. Sækja má ESB-samræmisyfirlýsinguna í heild sinni og fastbúnað vörunnar af vefsíðu vörunnar á www.
- Página 30 Access Points unterstützen die Funktionen DFS (Dynamic Frequency Selection) und TPC (Transmit Power Control) wie erforderlich bei Betrieb auf 5 GHz innerhalb der EU. • Bitte schlagen Sie im Handbuch oder Datenblatt nach nach, ob Ihr Gerät eine 2,4 GHz und / oder 5 GHz Verbindung nutzt. D-Link DCS-8635LH User Manual...
- Página 31 5 Ghz dentro de la UE. • Por favor compruebe el manual o la ficha de producto para comprobar si el producto utiliza las bandas inalámbricas de 2.4 GHz y/o la de 5 GHz. D-Link DCS-8635LH User Manual...
- Página 32 Toegangspunten ondersteunen DFS (Dynamic Frequency Selection) en TPC (Transmit Power Control) functionaliteit zoals vereist bij gebruik in 5 GHz binnen de EU. • Raadpleeg de handleiding of de datasheet om te controleren of uw product gebruik maakt van 2.4 GHz en/of 5 GHz. D-Link DCS-8635LH User Manual...
- Página 33 • Halten Sie das Produkt von Heizkörpern und anderen Quellen fern, die Wärme erzeugen. • Trennen Sie das Produkt immer von der Stromzufuhr, bevor Sie es reinigen und verwenden Sie dazu ausschließlich ein trockenes fusselfreies Tuch. D-Link DCS-8635LH User Manual...
- Página 34 • Mantenga el producto alejado de los radiadores y de otras fuentes de calor. • Desenchufe siempre el producto de la alimentación de red antes de limpiarlo y utilice solo un paño seco sin pelusa. D-Link DCS-8635LH User Manual...
- Página 35 • Houd het product uit de buurt van radiators en andere warmtebronnen. • U dient het product steeds los te koppelen van de stroom voordat u het reinigt en gebruik uitsluitend een droge pluisvrije doek. D-Link DCS-8635LH User Manual...
- Página 36 D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both products and packaging. D-Link recommends that you always switch off or unplug your D-Link products when they are not in use. By doing so you will help to save energy and reduce CO2 emissions.
- Página 37 D-Link et l’environnement Chez D-Link, nous sommes conscients de l'impact de nos opérations et produits sur l'environnement et nous engageons à le réduire. Pour limiter cet impact, D-Link conçoit et fabrique ses produits de manière aussi écologique que possible, en utilisant des matériaux recyclables et faiblement toxiques, tant dans ses produits que ses emballages.
- Página 38 D-Link zijn producten zo milieuvriendelijk mogelijk, door het gebruik van recycleerbare producten met lage toxiciteit in product en verpakking. D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart u energie en beperkt u de CO2-emissies.
- Página 39 D-Link a životní prostředí Ve společnosti D-Link jsme si vědomi vlivu našich provozů a výrobků na životní prostředí a snažíme se o minimalizaci těchto vlivů. Proto své výrobky navrhujeme a vyrábíme tak, aby byly co nejekologičtější, a ve výrobcích i obalech používáme recyklovatelné a nízkotoxické materiály.
- Página 40 D-Link produkter som er så miljøvennlig som mulig, ved å bruke resirkulerbare, lav-toksiske materialer både i produktene og forpakningen. D-Link anbefaler at du alltid slår av eller frakobler D-Link-produkter når de ikke er i bruk. Ved å gjøre dette hjelper du å spare energi og å redusere CO2-utslipp.
- Página 41 D-Link sine produkter, så de er så miljøvenlige som muligt, ved at bruge genanvendelige materialer med lavt giftighedsniveau i både produkter og emballage. D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og reducere CO2-udledningerne.
- Página 42 D-Link och miljön På D-Link förstår vi och är fast beslutna att minska den påverkan våra verksamheter och produkter kan ha på miljön. För att minska denna påverkan utformar och bygger D-Link sina produkter för att de ska vara så miljövänliga som möjligt, genom att använda återvinningsbara material med låg gifthalt i både produkter och förpackningar.
