8210CK
Thermostatic Mixing Valve
Operation & Maintenance Manual
Model Numbers
☐

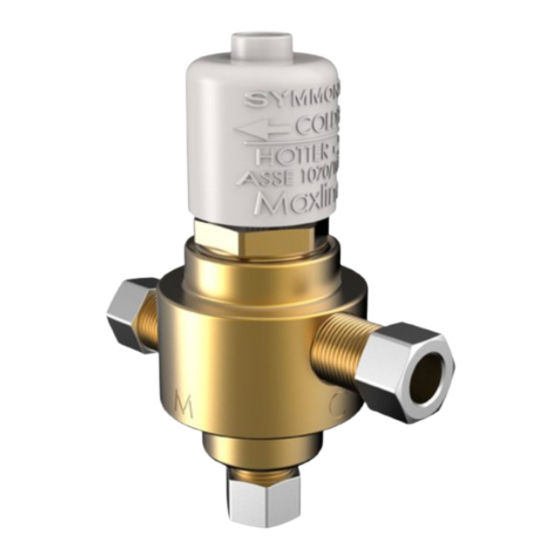

8210CK Thermostatic Mixing Valve
Options/Modifications
☐
B Wall cabinet in white enamel finish
including wall mounting bracket
☐
D 3/8" compression fitting to allow water
bypass for hot and cold supply faucet
☐
NI Rough Nickel finish
☐
T Stainless steel cabinet in place of
standard white cabinet
Note: Append appropriate suffix to model number.
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Flowrates
Size
Valve Model
Connection
3/8"
8210CK
(10 mm)
MaxLine
Table 1: Flow Rate - gpm (L/min)
Min. Flow
5 psi
Rate
(34 kPa)
0.25 gpm 1.32 gpm
(0.95 L/min) (5.0 L/min)
®
Feature Highlights
• 3/8" compression connections
• Integral checks
• Stainless steel strainers for protection against
suspended particles in supply lines
• Thermal cartridge
• Vandal resistant
• Minimum flow rate 0.25 gpm (0.95L/min)
Inlet water temperature:
HOT inlet range 120°F - 180°F (48.9°C - 82.2°C)
COLD inlet range 39°F - 80°F (3.9°C - 26.7°C)
Temperature control range:
59°F - 115°F (15°C - 46°C)
Minimum supply pressure: 20 psi (138 kPa)
Maximum supply pressure: 125 psi (862 kPa)
Inlet to outlet temperature differential: 10°F (5.55°C)
*According to US Senate bill S.3874, the term "lead free" is
defined as follows: "not more than a weighted average of 0.25
percent lead when used with respect to the wetted surfaces of
pipes, pipe fittings, plumbing fittings, and fixtures."
Compliance
-ASME A112.18.1/CSA B125.1
-ASSE 1017/CSA B125.3
-ASSE 1070/CSA B125.3
-NSF/ANSI 372
-CSA B125.3
Pressure Differential - psi (kPa)
10 psi 20 psi
(69 kPa) (138 kPa)
2.06 gpm 2.74 gpm
(7.8 L/min) (10.4 L/min)
25 psi 30 psi
(172 kPa) (207 kPa)
3.11 gpm 3.38 gpm
(11.8 L/min) (12.8 L/min)
45 psi
(310 kPa)
4.22 gpm
(16.0 L/min)
