Models/Modelos/Modèles
468-SD-DST, 16926-SD-DST,
16927-SD-DST, 16929-SD-DST &
16932-SD-DST
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
WARNING: THIS FAUCET IS NOT TO BE USED WITH PORTABLE
DISHWASHERS! / ADVERTENCIA: ¡SESTA LLAVE NO SE DEBE UTILIZAR
CON MAQUINAS LAVAPLATOS PORTATILES! / AVERTISSEMENT: ON NE
DOIT PAS BRANCHER UN LAVE-VAISSELE PORTATIF SUR CE ROBINET!
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.

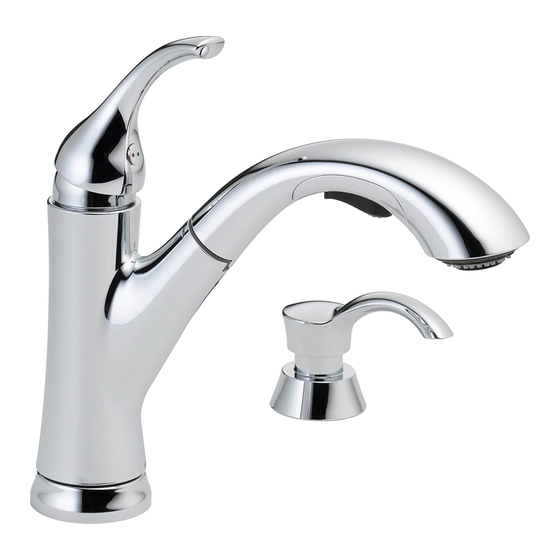

SINGLE HANDLE PULLOUT KESSLER
73040
LEWISTON
LLAVES EXTRAÍBLES DE AGUA PARA COCINAS
KESSLER
ROBINETS À UNE MANETTE À BEC-DOUCHETTE
RÉTRACTABLE KESSLER
ET CICERO
1
AND CICERO
KITCHEN FAUCETS
®
®
, DEBONAIR
, LEWISTON
™
®
, DEBONAIR
™
POUR ÉVIERS DE CUISINE
®
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
, DEBONAIR
™
Y CICERO
®
®
, LEWISTON
®
1/8"
8/27/15
,
®
®
Rev. B
