Before installing and using DGFIT:
- read this manual thoroughly and carefully and refer to the Safety Standards.
- Before making the connections, make sure that the ends of the line wires are not live.
- Make sure also that the electric power supply network is protected by thermal magnet and
differential protections according to the applicable Standard in force. The differential switch
must be high-sensitivity type
applications)
- Ground connections must be in compliance with Standards.
- Check that the plate data is that required and suitable for the system
- The power supply cable and the connection cable between the inverter and the motor
must have:
o 3 wires (phase + ground) in single-phase applications
o 4 wires (3 phase + ground) in three-phase applications
- The cable section must be dimensioned according to:
o Voltage (230 V single-phase, 230 V three-phase, 400 V three-phase)
o Pump power
o Cable lenght
- The power supply cable and the motor cable must be sized to curb any power voltage drop
within 3%.
- The power supply cable and the motor cable must be suitably shielded to comply with EMC
standards.
- MOTOR CABLE LENGTH: If
it is recommended to evaluate the application of a sinusoidal filter
For CONNECTIONS see

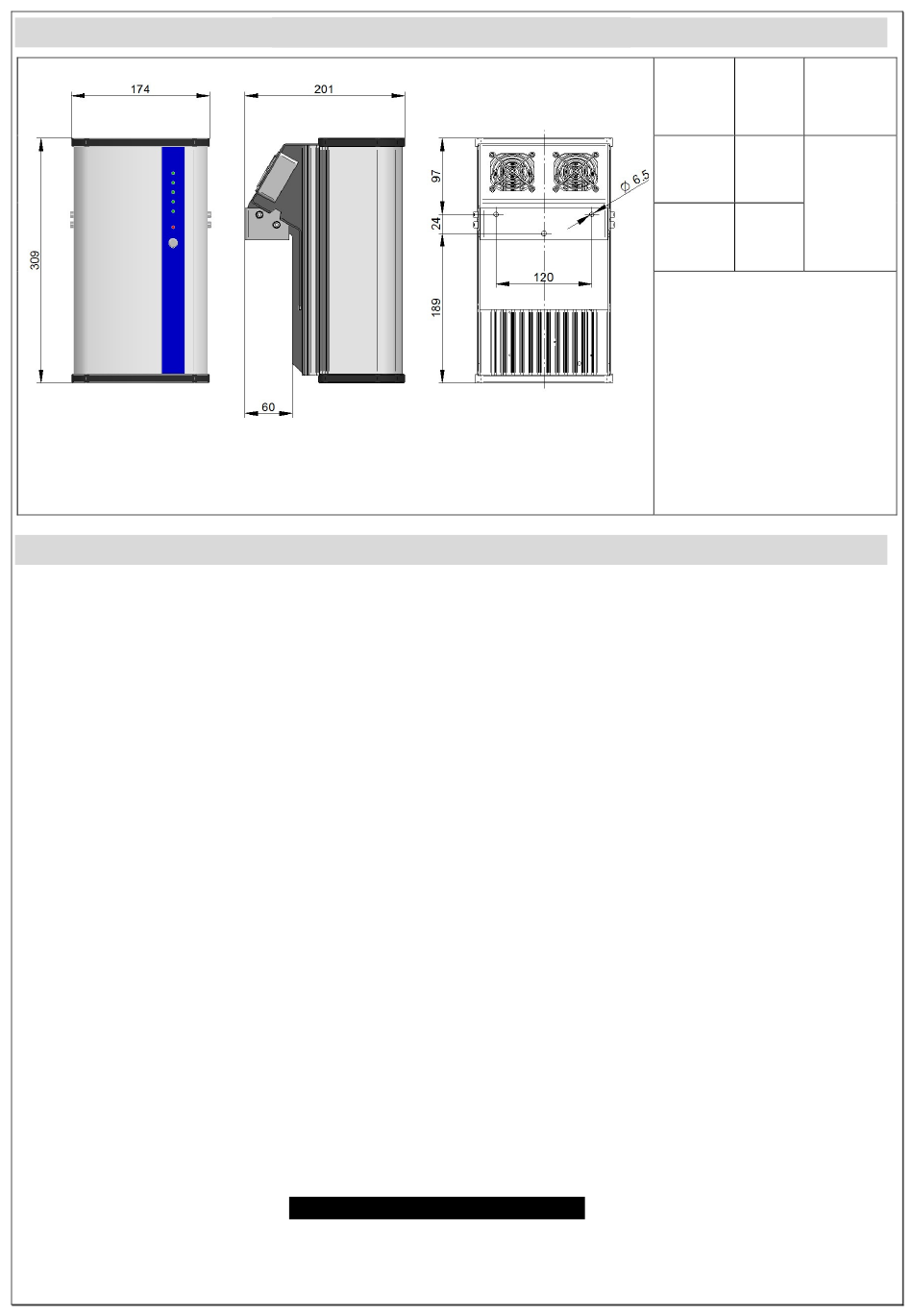

DIMENSIONS AND WEIGHTS
INSTALLATION
(30 mA in class A for domestic application, class B for industrial
the cable between the inverter and pump exceeds 15 m in length,
QUICK INSTALLATION GUIDE
48
model weight
(kg)
T/T 06 3.4
T/T 08 3.5
.
Packaging
dimensions
(mm)
385 x
220 x
H 235
