9. Monitor Outputs
These 1/4" TS outputs are the final output from the Monitor send
mixing bus. This feed may be used to connect to an amplifier and
speaker. Feeding the output from the Monitor out to an amplifier
(and possibly an equalizer) and then to a floor monitor speaker
allows artists to monitor their own instruments or vocals whilst
performing, or an engineer to monitor the mix.
10. Main Outputs
These jacks will output the final stereo line level signal sent from
the main mixing bus. The primary purpose of these jacks is to send
the Main output to external devices that may run in parallel with
the mixer. This may include additional power amplifiers, mixers,
PA systems, as well as a wide range of other possible signal
processors.
9

Rear Panel

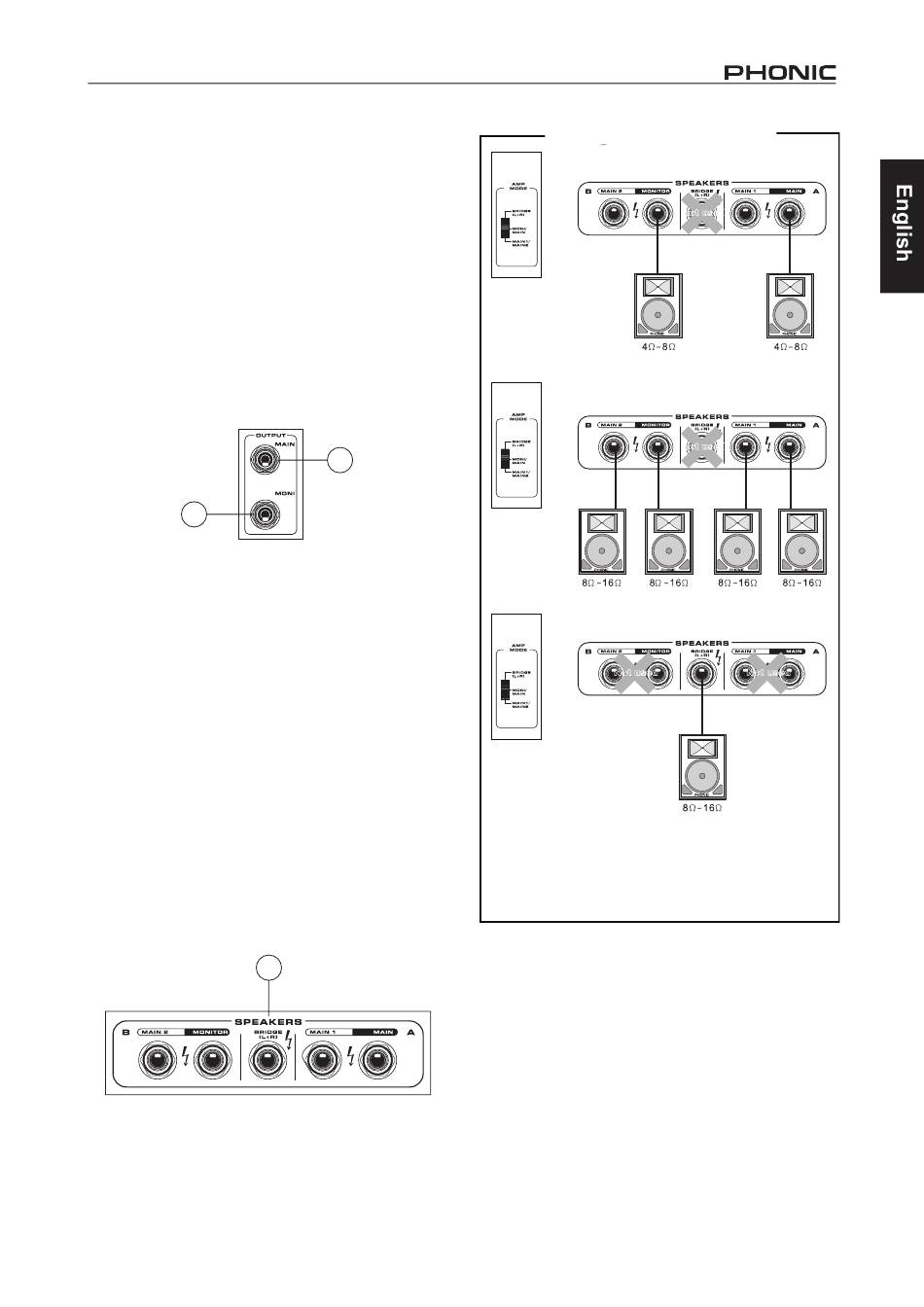

11. Speaker Outputs
These jacks are used to connect to speakers, fed from the internal
power amp. On all models, they consist of 1/4" Phone Jacks. The
Amp Select switch determines the operation of these jacks. If the
Amp Select switch is set to "Main 1-2" or "Main / Moni" a single
speaker with a 4 to 8 ohm load can be connected to jack A on both
the Main 1 and Main 2 Speaker Outputs. You can also connect two
speakers with impedances between 8 and 16 ohms to both jacks A
and B of the Main 1 and Main 2 Speaker Outputs.
When using Bridge Mono mode, use the Speaker Output labeled
"Bridge" only to connect a Speaker with a loading between 8 and
16 ohms. Refer to the Speaker set up chart to the right for a more
detailed indication of how to connect speakers.
NB. Due to the fact that the signal has been processed by the power amp,
these ports should be used in conjunction with passive speakers only to
avoid damaging any other equipment.
11
POWERPOD 620 PLUS / POWERPOD 620 R
10
Using speakers with an incorrect loading can not only cause
distortion, but also irreversible damage to the powered mixer.
Please ensure the loadings of your speakers are consistent
with those shown above.
SPE A K ER SETUP
Not used
Not used
Not used Not used
3
