5430847COM

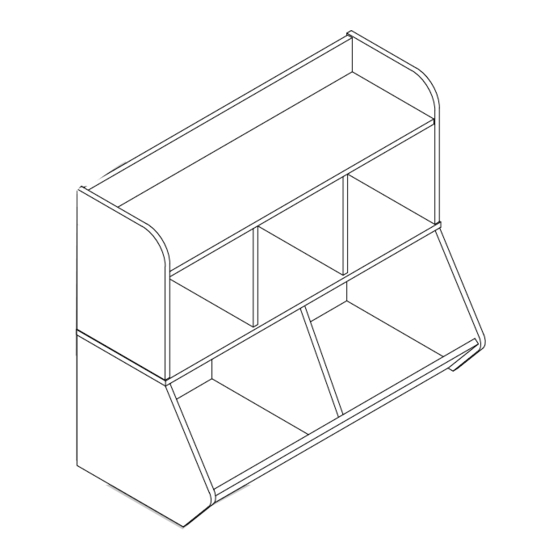

TOY STORAGE BOOKCASE
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B345430847COM01GO
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
Tough
You
Tube

Publicidad

loading

Resumen de contenidos para Ameriwood HOME 5430847COM

  • Página 1 Tough Visit: www.ameriwoodhome.com Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. - Put heavy items on lower shelves or drawers.
  • Página 2 Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting.
  • Página 3 Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.
  • Página 4 Board Identification Not actual size SHELF BOTOM T5430847010GO T5430847020GO T5430847030GO QTY: 1 PC QTY: 1 PC QTY: 1 PC LEFT UPPER SIDE LEFT LOWER SIDE RIGHT UPPER SIDE T5430847040GO T5430847060GO T5430847050GO QTY: 1 PC QTY: 1 PC QTY: 1 PC LOWER DIVIDER RIGHT LOWER SIDE UPPER DIVIDER...
  • Página 5 Board Identification Not actual size GALLERY BACK FRONT T5430847110GO T5430847100GO QTY: 1 PC QTY: 1 PC BACK PANEL T5430847120GO QTY: 1 PC ameriwoodhome.com Tube...
  • Página 6 Board Identification Not actual size ameriwoodhome.com Tube...
  • Página 7 Hardware Bag Reference number: COM0GO 5430847 Part List Actual Size Ø15 x 10mm Ø15 x 12mm Ø6 x 25mm Ø8 x 30mm ×4 ×17 ×21 ×28 CAM LOCK CAM LOCK CAM BOLT WOOD DOWEL TGO2100 TGO2101 TGO2001 TGO2900 Ø4.2 x 45mm Ø1.7 x 18mm Ø6 x 30mm ×4...
  • Página 8 STEP ×10 ×10 ×1 ×1 1.1 Cam bolt (3) into (A), (D) and (E) as illustrated. 1.2 Insert (4) into (K), (D) and (E) as illustrated. 1.3 Attach (11) into (A) with (8) as illustrated. ameriwoodhome.com Tube...
  • Página 9 STEP ×7 ×14 2.1 Insert (4) into (I), (H) and (J) as illustrated. 2.2 Cam bolt (3) into (B), (J) as illustrated. H x 2 ameriwoodhome.com Tube...
  • Página 10 STEP ×4 ×4 ×4 3.1 Insert (4) into (F), (G) as illustrated. 3.2 Cam bolt (3) into (F), (G) as illustrated. 3.3 Insert (5) into (C) as illustrated. ameriwoodhome.com Tube...
  • Página 11 STEP Quick Assembly LOCK ×4 ×2 Proper orientation of CAM LOCK 4.1 Insert (K) into (A) with (6) as illustrated. 4.2 Attach (H) x 2 into (A) with (2) as illustrated. FINISHED EDGE FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
  • Página 12 STEP Quick Assembly LOCK Proper orientation of CAM LOCK ×6 5.1 Attach (D), (E) into (A), (K) with (2) as illustrated. FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
  • Página 13 STEP ×8 6.1 Attach (B) into (D), (E) and (H)x2 with (6) as illustrated. FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
  • Página 14 STEP ×1 ×2 7.1 Attach (I) into (C) with (6) as illustrated. 7.2 Attach (J) into (I) with (2) as illustrated. ameriwoodhome.com Tube...
  • Página 15 STEP Quick Assembly LOCK Proper orientation of CAM LOCK ×4 8.1 Attach (F), (G) into (C), (J) with (1) as illustrated. ameriwoodhome.com Tube...
  • Página 16 STEP Quick Assembly LOCK ×6 Proper orientation of CAM LOCK 9.1 Attach (B) into (F), (I) AND (G) with (2) as illustrated. ameriwoodhome.com Tube...
  • Página 17 STEP ×33 10.1 Attach (L) into (A), (B), (C),(D) ,(E), (F), and (G) with (7) as illustrated. ameriwoodhome.com Tube...
  • Página 18 STEP ×1 ×1 IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT Hole For Masonry, Concrete, or other wall materials: Option 1 STUD Consult your local hardware store for appropriate anchors to securely attach the safety bracket Option 2...
  • Página 19 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 25 lbs / 13 kgs 20 lbs / 9 kgs 25 lbs / 13 kgs Warning: Risk of injury to persons - do not place a television on this furniture.
  • Página 20 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
  • Página 21 de l'aide. ameriwoodhome.com Tube...
  • Página 22 (J) DE FACE (10) (11) Page 8 Page 11 ameriwoodhome.com Tube...
  • Página 23 sécurité ameriwoodhome.com Tube...
  • Página 24 ameriwoodhome.com Tube...
  • Página 25 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
  • Página 26 Español Página 4,5 & 6: Identificación de la Junta Página 7: Lista de No es la talla actual Tamaño real (A) PARTE SUPERIOR (1) BLOQUEO DE LEVA (B) ESTANTE (2) BLOQUEO DE LEVA (C) FONDO (3) PERNO DE LEVA (D) LADO SUPERIOR IZQUIERDO (4) PASADOR DE MADERA (E) LADO SUPERIOR DERECHO (5) PASADOR DE MADERA...
  • Página 27 Español Página 15 8.1 Conecte (F), (G) en (C), (J) con (1) como se ilustra. Página 16 9.1 Conecte (B) en (F), (I) Y (G) con (2) como se ilustra. Página 17 10.1 Conecte (L) en (A), (B), (C), (D), (E), (F) y (G) con (7) como se ilustra. Página 18 IMPORTANTE: ESTA UNIDAD DEBE ESTAR SEGURA EN LA PARED PARA AYUDAR A PREVENIR TIPOVER.
  • Página 28 Español Gracias ameriwoodhome.com Tube...
