Good Earth Lighting AC1358-RGB-06LF0-G Manual Del Usuario

Hardware kit* / Trousse de quincaillerie*/ Kit de aditamentos*
Function controller
Contrôleur de fonctions
Controlador de funciones
* Actual hardware may di er from illustration./ La quincaillerie incluse peut être di érente de l'illustration./ Los aditamentos reales pueden diferir de los que se muestran en la ilustración.
ATTENTION
No parts are serviceable on this product. DO NOT alter
anything in this kit other than the tape light length.
For electrical requirements, see back of driver label.
For INDOOR locations only.
This tape light is NOT expandable. Additional LED tape light
lengths CANNOT be added.
Use only insulated staples or plastic ties (not included) to
secure the cords.
DO NOT use with an extension cord. Use a power strip with
integral over current protection to supply power to the
fixture. NEVER use power strip unless the plug can be fully
inserted.
LEDs gradually emit less light over their lifetime.
Reattaching the connectors multiple times may damage
the tape light.
DO NOT PLUG THE POWER CORD INTO THE POWER SOURCE UNTIL INSTALLATION IS COMPLETE.
Select a location for the LED tape light and mark it. Verify that the power cord reaches the nearest power outlet and will reach the LED tape light. Thoroughly clean the
mounting surface with rubbing alcohol and allow it to dry.
Measure the length of the LED tape light carefully before cutting it to ensure that the block and corner connectors
do not need to be repositioned as this may affect the performance of the tape light.
The LED tape light can only be cut on the "cut symbols,"
which are marked every 2 inches (5.1 cm), allowing for
cornering and/or custom installs.
In the event the tape light is cut too short, use an included
block connector (for direct link) or corner connectors (for
tight corners, to rejoin both segments.
ONLY SEGMENTS PREVIOUSLY REMOVED CAN BE ADDED BACK IN. ADDITIONAL TAPE LIGHT LENGTHS CANNOT BE ADDED.
1
NOTE: Failure to peel the liner
can prevent the contacts from
piercing the contact plates and
make it di cult to close the
latches.
NOTE: The polarity symbols
("+"and "-") are located on the
LED tape light every 2 in. (5.1
cm).
LED tape light
Ruban lumineux à LED
Luz LED con cinta autoadhesiva
ENGLISH INSTRUCTIONS
SAFETY INFORMATION
WARNING
DO NOT INSTALL WHILE UNIT IS PLUGGED IN.
DO NOT plug the power cord into the power
source until installation is complete.
DO NOT touch, operate, or install fixture while in
contact with water. Not intended for illumination of
aquariums.
DO NOT look directly at lighted LEDs for any length
of time.
DO NOT USE THIS FIXTURE WITH A DIMMING
CIRCUIT. If dimmer controls are present, remove
and replace.
If unfamiliar with electrical installations, contact a
qualified electrician to install.
ADJUSTING TAPE LENGTHS
OPTIONAL: BLOCK AND CORNER CONNECTORS
2
NOTE: Insert the tip of a
screwdriver into the gaps between
the connector base and the
latches and twist.
Power cord
Cordon d'alimentation
Cable de alimentación
INSTALLATION
CUT
NOTE: DO NOT cut the LED
SYMBOL
tape light strips anywhere
other than the "cut symbol."
Doing so will damage the
tape light.

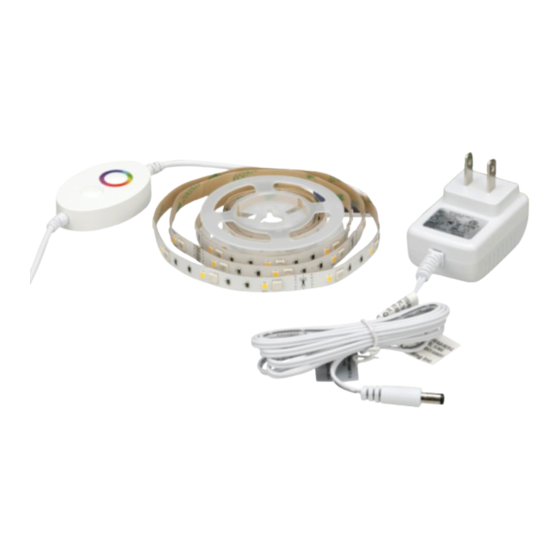

6-Ft. RGB LED Tape Light (Page 1)
Ruban lumineux à LED RGB de 6 pi (Page 3)
Luz de cinta LED RGB de 6 pies (Página 5)
Model / Modèle / Modelo #: AC1358-RGB-06LF0-G
Required / Nécessaire /Se necesita
Corner connector x2
Connecteur d'angle x2
Conector de esquina x2
CAUTION
DO NOT mount over sinks or stoves.
NOT intended for recessed installation in ceilings or so ts. DO NOT run ANY
cords behind walls, ceilings, so ts, cabinets, or a similar permanent structure
where it may be inaccessible for examination.
Tape light must be fully uncoiled for proper operation, and to prevent overheating.
Lights may be installed inside of an enclosure, such as a cabinet, ONLY when
the POWER ADAPTER is located outside of the enclosure.
Peel back a small amount of the liner on the adhesive
1
backer, about 0.5 in. (1.27cm). The tape light is polarity
sensitive, meaning all the "+" symbols need to be aligned
on one side and all the "-" symbols need to be aligned on
the other side of the connections.
2
To open the connector latches for use, carefully pry open
the latches with a flathead screwdriver.
Safety glasses
Lunettes de protection
Lentes de seguridad
Scissors
Ciseauxlentes
Tijeras
Flathead screwdriver
tournevis à tête plate
destornillador de
cabeza plana
Block connector x1
Connecteur de bloc x1
Conector de bloque x1
