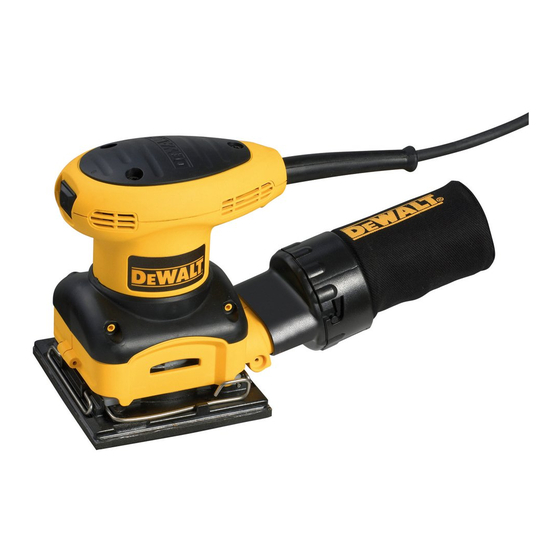

DeWalt D26441 Manual De Instrucciones

E
O
m
,Q
<(03
NLU
>-©
©_>
oo
rr_
WI--
(/)u)
w_z
_cu
uJ
m<(
O'W
OZ .
m_
a.w_
c <2
_'-- j
v_z_,,,
rr <( 03
C3_
O
z tr
t_
Z_.7--
opw
NC N
@
¢O '4
m
•
t3) 'r- -0
R_
r, _ r,
DEWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286
(AUG04) Form No. 624290-00 D26441 Copyright © 2004 DEWALT
The following are trademarks for one or more DEWALT power tools: the yellow and black color
scheme; the "D" shaped air intake grill; the array of pyramids on the handgrip; the kit box
configuration; and the array of lozenge-shaped humps on the surface of the tool.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY DEWALT TOOL,
CALL US TOLL FREE AT: 1-800-4-DEWALT (1-800-433-9258)
Genera_ Safety _nstructions
A ARNING! Read and understand all instructions. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious personal injui3z.
SAVE THESE _NST_UCT_ONS
WORK AREA
* Keep your work area clean and well fit. Cluttered benches and dark areas invite accidents.
* Do not operate power tools in explosive atmospheres, such as in the presence of flam-
mable liquids, gases, or dust. Power tools create sparks which may ignite the dust or
fumes.
* Keep bystanders, children, and visitors away while operating a power tool Distractions
can cause you to lose control.
ELECTRICAL SAFETY
* Grounded tools must be plugged into an outlet properly installed and grounded in
accordance with all codes and ordinances. Never remove the grounding prong or
modify the plug in any way. Do not use any adaptor plugs. Check with a quafified elec-
trician if you are in doubt as to whether the outlet is properly grounded, ff the tools
should electrically malfunction or break down, grounding provides a low resistance path to
carry electricity away from the user. Applicable only to Class I (grounded) tools.
* Double insulated tools are equipped with a polarized plug (one blade is wider than the
other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully
in the outlet, reverse the plug. if it still does not fit, contact a qualified electrician to
install a polarized outlet. Do not change the plug in any way. Double insulation [] elim-
inates the need for the three wire grounded power cord and grounded power supply system.
Applicable only to Class II (double insulated) tools.
* Avoid body contact with grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is grounded.
* Don't expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
* Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an
outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged
cords immediately. Damaged cords increase the risk of electric shock.
* When operating a power tool outside, use an outdoor extension cord marked "W-A"
or "W." These cords are rated for outdoor use and reduce the risk of electric shock. When
using an extension cord, be sure to use one heavy enough to carry the current your product
will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and
overheating. The following table shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage num-
ber, the heavier the cord.
Minimum Gage for Cord Sets
Volts Total Length of Cord in Feet
120V 0-25 26-50 51-100 101-150
240V 0-50 51-100 101-200 201-300
Ampere Rating
More Not more AWG
Than Than
0 6 18 16 16 14
PERSONAL SAFETY
* Stay alert, watch what you are doing and use common sense when operating a power
tool Do not use tool while tired or under the influence of drugs, alcohol, or medication.
A moment of inattention while operating power tools may result in serious personal injui3z
* Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be
caught in moving parts. Air vents often cover moving parts and should also be avoided.
* Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with
your finger on the switch or plugging in tools that have the switch on invites accidents.
* Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that
is left attached to a rotating part of the tool may result in personal injury.
* Do not overreach. Keep proper footing and balance at all times. Proper footing and bal-
ance enables better control of the tool in unexpected situations.
* Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions.
TOOL USE AND CARE
* Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss of
control.
* Do not force tool Use the correct tool for your application. The correct tool will do the
job better and safer at the rate for which it is designed.
* Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with
the switch is dangerous and must be repaired.
* Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing the tool Such preventative safety measures reduce the risk of
starting the tool accidentally.
* Store idle tools out of reach of children and other untrained persons. Tools are dan-
gerous in the hands of untrained users.
. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools,
with sharp cutting edges are less likely to bind and are easier to control.
* Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the tool's operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
* Use only accessories that are recommended by the manufacturer for your model
Accessories that may be suitable for one tool, may become hazardous when used on
another tool.
SERVICE
* Tool service must be performed only by qualified repair personnel Service or mainte-
nance performed by unqualified personnel could result in a risk of injury
* When servicing a tool, use only identical replacement parts. Follow instructions in the
Maintenance section of this manual Use of unauthorized parts or failure to follow mainte-
nance instructions may create a risk of electric shock or injury.
_dditiona_ Safety _nstructions for Sanders
, Accessories must be rated for at least the speed recommended on the tool warning
label Wheels and other accessories running over rated speed can fly apart and cause injury.
Accessory ratings must be above listed minimum wheel speed as shown on tool nameplate.
, Hold tool by insulated gripping surfaces when performing an operation where the cut-
ting tool may contact hidden wiring or its own cord. Contact with a 'five" wire will make
exposed metal parts of the tool 'five" and shock the operator.
, Always wear eye protection and a respirator when sanding.
, Sanding of lead-based paint is not recommended. See Precautions To Take When
Sanding Paint for additional information before sanding paint.
, Do not operate the unit without the dust collection bag.
* Clean your tool outperiodically.
, Empty dust bag frequently, especially when sanding resin coated surfaces such as
polyurethane, varnish, shellac, etc. Dispose of coated dust particles according to the finish
manufacturer's guidelines, or place in a metal can with a tight-fitting metal lid. Remove coated
dust particles from the premises daily. The accumulation of fine sanding dust particles may
serf ignite and cause fire.
J&WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other con-
struction activities contains chemicals known to cause cancer, birth defects or other reproduc-
tive harm. Some examples of these chemicals are:
* lead from lead-based paints,
* crystalline silica from bricks and cement and other masonry products, and
* arsenic and chromium from chemically-treated lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a weft ventilated area, and work with approved
safety equipment, such as those dust masks that are specially designed to filter out microscop-
ic particles.
* Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote
absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disburse dust, which may cause serious and
permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles away from face and body.
A CAUTION: Wear appropriate hearing protection during use. Under some conditions and
duration of use, noise from this product may contribute to hearing loss.
* The label on your tool may include the following symbols. The symbols and their definitions
are as follows:
V .............. volts
Hz ............ hertz
min ............ minutes
.... .......... direct current
[] .............. Class II Construction
_, .............. safety alert symbol
A ................ amperes
W .............. watts
* ............ alternating current
no .............. no load speed
.............. earthing terminal
.../min ........ revolutions per minute
SAVE THESE _NSTRUCT_ONS
COMPONENTS (Fig. 1)
A. On/Off switch E. Vac-adapter
B. Clamp lever R Paper clamp
C. Base plate/pad G. Paper-limiting ribs
D. Dust collection bag
Motor
Your DEWALT tool is powered by a DEWALT-built motor. Be sure your power supply agrees with
the nameplate marking (Volts, 120 AC only). A Voltage decrease of more than 10% will cause
loss of power and overheating. All tools DEWALT tools are factory tested; if this tool does not
operate, check the power supply.
_ttaching Abrasive Paper (Fig. 1, 2)
J},CAUTION: Turn off and unplug the tool before making any adjustments or removing
or installing attachments or accessories. Be sure the switch is in the OFF position.
Your sander is designed to use 1/4-sized sanding sheets. Pre-cut 4-1/2" x 5-1/2" sandpaper is
available at extra cost.
TO MAKE 4-1/2" X 5-1/2" SANDPAPER
a. Cut full-sized (9"x 11") sandpaper into 1/4 sheets of 4-1/2" x 5-1/2".
b. Cut 1/2 sheet sandpaper into two 4-1/2" x 5-1/2" sheets.
For normal operation, assemble the abrasive paper to your unit as follows:
1. Soften the stiff sandpaper by pulling it over the 90 ° edge of a table or other straight edge, as
shown in Figure 2. Concentrate on softening the edges to be clamped.
2. Release the clamp by pulling up on the clamp lever (B) and disengaging it from the tab on the
base plate/pad (C).
3. Insert the 4-1/2" edge of the abrasive paper under the front paper clamp (F) until it hits the
paper-limiting ribs (G). Close the front paper clamp and hook it into the lock position behind
the tab on the base plate/pad.
4. Stretch paper over sanding pad and insert under the opposite clamp in the same way.
5. If you are using the dust extraction feature, perforate the sandpaper (see Paper Punch).
