Pulsar M
2.5

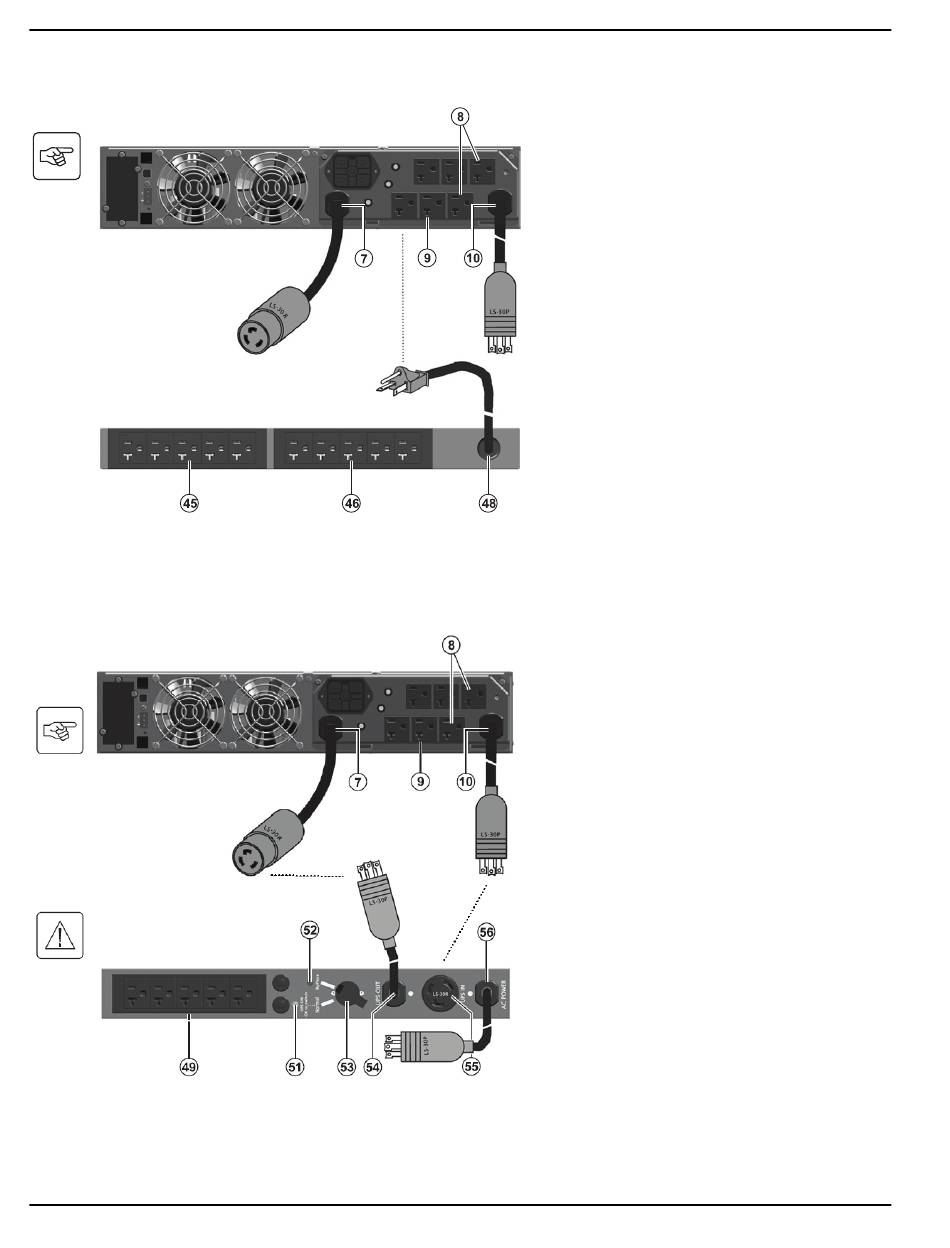

Connections with a FlexPDU (Power Distribution Unit) Module (optional)

Pulsar M 3000
2.6 Connections with a HotSwap MBP Module (optional)
The HotSwap MBP module makes it possible to service or even
replace the UPS without affecting the connected loads
(HotSwap function).
Pulsar M 3000
2 — 4
1. Connect the UPS powercord (10) to the AC
2. Connect the input cord of the FlexPDU
3. Connect the equipment to the outlets (45),
1. Connect the input cord (56) of the HotSwap
2. Connect the UPS input cord (10) to the "UPS
3. Connect the UPS outlet (7) to the "UPS
4. Connect the equipment to the outlets (49) on
Caution:
Installation
E E N N G G L L I I S S H H
power source.
module (48) to the UPS outlet (9). The cord
and the outlet are marked in red.
(46) on the FlexPDU module. These outlets
differ, depending on the version of the
FlexPDU module.
MBP module to the AC power source.
Input"(55) of the HotSwap MBP module. This
cord and the receptacle are marked blue.
Output" cord (54) of the HotSwap MBP
module. This cord and the outlet are marked
red.
the HotSwap MBP module.
Do not use UPS outlets (8)and (9) to
supply equipment because use of switch
(53) on the HotSwap MBP module would
cut supply to the equipment. It is advised
not to remove the protective film from
outlets (8) and (9).
