Components - JOSMOSE 8040 Serie Manual De Usuario

- VERY IMPORTANT: if anomalies are detected in the delivered equipment, it can be
either by transport or by factory freight:
Remember to indicate it on the part of the transport agency that delivers the
order.
Take photographs and send them back to your salesperson so that they reach
your distributor or factory and manage the solution as quickly as possible.

05.2 COMPONENTS

STANDAR RO COMPONENTS. MEMBRANE HOUSING TO 1 ELEMENT.
1. Control panel, power supply and
electrical protection.
2. ON/OFF selector/botton RO.
3. Conductivity-meter.
4. Synoptic.
5. Inlet motorized valve.
6. Drain motorized valve.
7. Multicartridge filter 5 micron (SS
optional)
8. Pressure gauge outlet filter.
9. Membrane inlet pressure gauge.
10. States pressure gauge.
11. Outlet membrane pressure
12. Low pressure switch.
13. High pressure switch.
14. Permeate flow-meter.
15. Rejection flow-meter.
16. Recirculation flow-meter.
17. Rejection flow regulator.
18. Recirculation flow regulator.
19. Outlet permeat water.
20. Outlet drain.
21. High vertical pump.
22 Vessels pressure.
23. Wrench adjustment by-pass pump
high.
24. Permeat flow ajust valve.
25. Valve emptying filter. Take sample
water entrance
26. Manual flushing button.
27. Flushing tank permeat.
28. Flushing pump.
30. Cutt valve.
31. Pressure gauge intlet filter.
32. PH/ORP panel control (Optional)
33. PH/ORP control probe (Optional)
34. Chemical product dosing point.
51
8040_6000TDS_std_V1.3

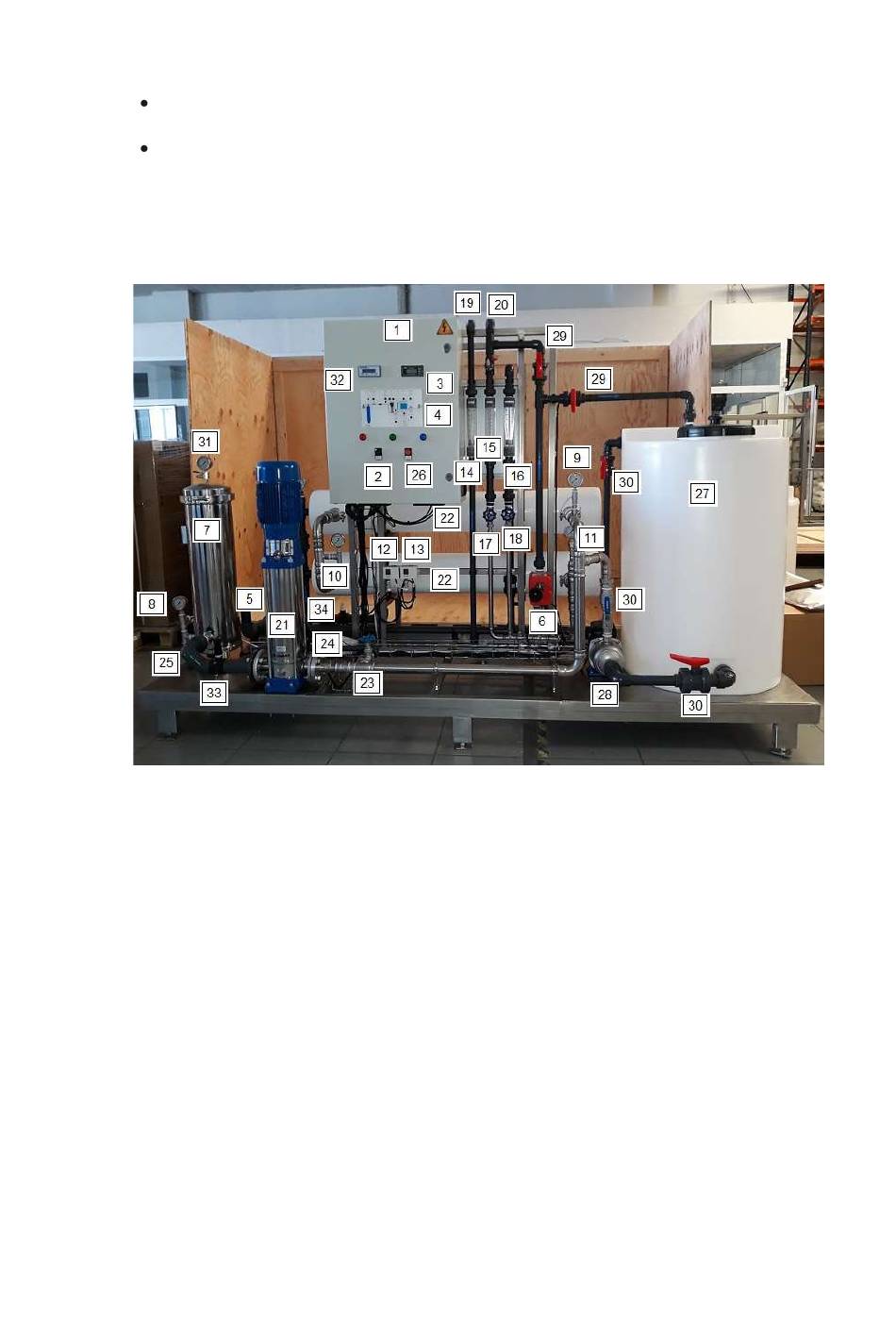

Representative image.
