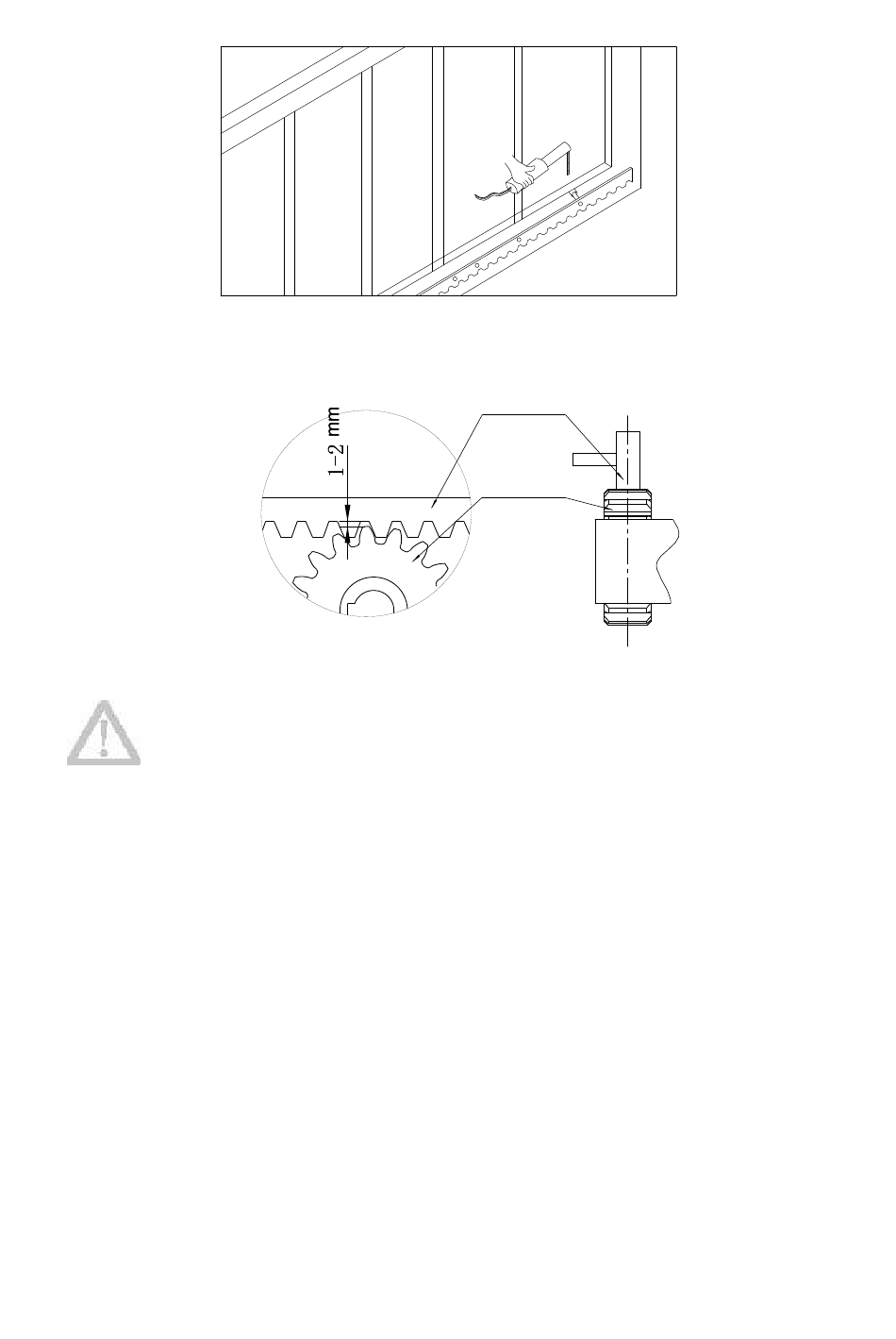

The fit clearance of output gear and rack is shown in Figure 7 below:
Warnings
To ensure safety, install safety stop blocks on both ends of the rails to prevent the gate
from running out of the rail. Before installing the gate opener, make sure that the safety
stop blocks are in place and whether it has the function of preventing the gate from
running out of the rail or safety range.
·Please make sure that the gate opener and its components have good mechanical
properties, and the gate can be operated flexibly when manually moved before
installing the gate opener.
·Please note that for this product, one control can only drive one gate opener,
otherwise, the control system will be damaged.
·Earth leakage circuit breaker must be installed in where the gate movement can be
seen, and the minimum mounting height is 1.5m to avoid being touched by children.
·After installation, please check whether the mechanical property is good or not,
whether gate movement after manual unlocking is flexible or not, whether the
installation for infrared sensor (optional) is correct and effective.
9
Figure 6
Figure 7
Gear rack Gear rack
Output gear Output gear
