2. Assembling for the
first time

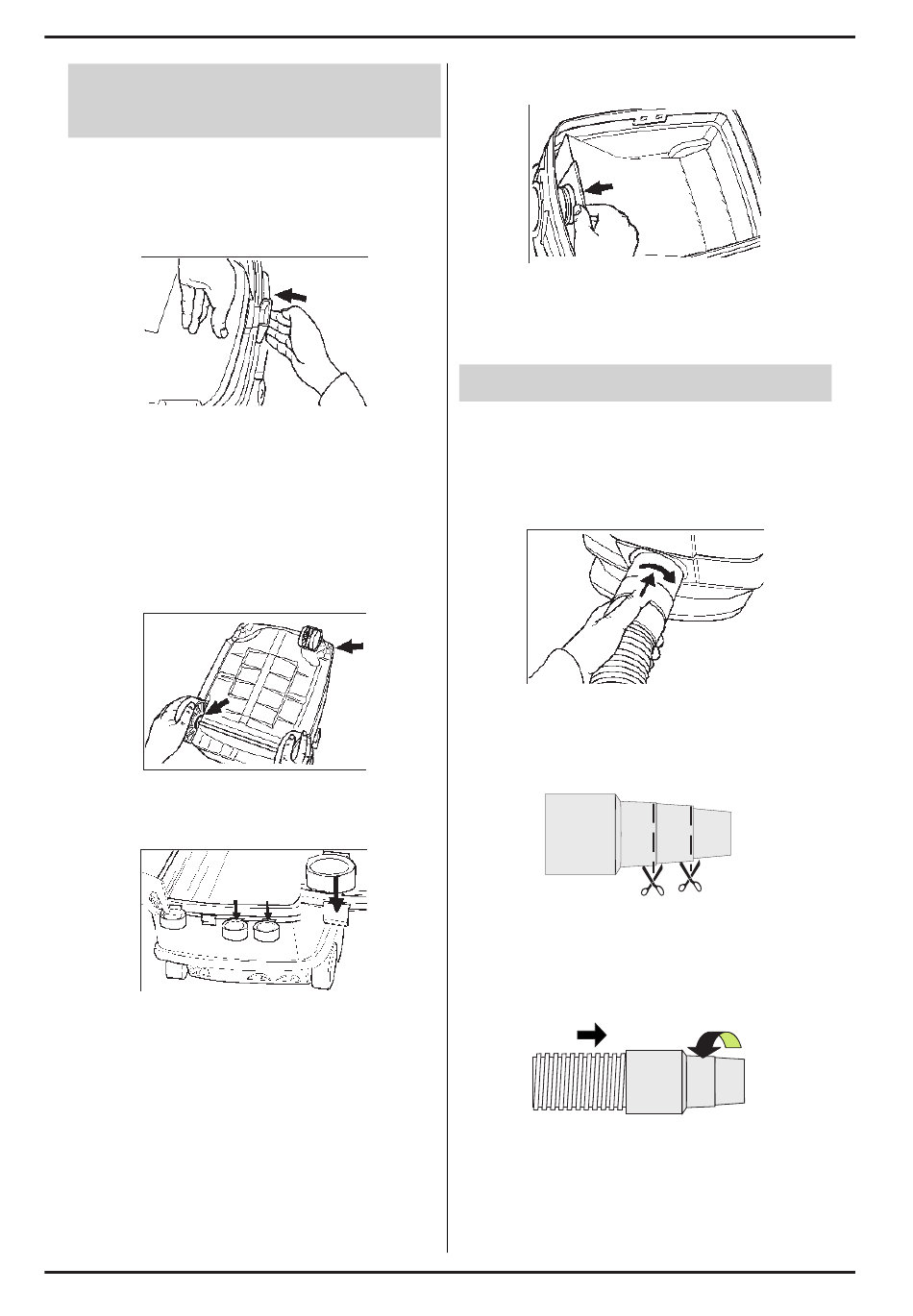

Assemble your suction unit as follows.
• Open both container locks and lift off the
motor housing.
• Invert the dirt container.
• Press both steering rollers into the holes
provided until they latch into position.
• Push the axle of the wheels into the guide.
To do this, first push the bearing disks to the
outside left and right to the wheels.
If necessary, push back the parking brake.
• Fit the holder for the vacuum pipes and the
accessories.
• To suck dry, push the enclosed paper filter
bag onto the suction neck.
- Hold the filter by the card only.
• Place the motor housing onto the dirt contai-
ner and close.

3. Putting into operation

Prepare your suction unit for operation as
follows.
• Twist the vacuum hose into the suction hose
connection (bayonet joint).
Attach adapter to suction hose:
• Adjust adapter to the diameter of the electric
tool connection piece; use a knife or saw.
• Instead of the connection sleeve, screw the
adapter onto the NW 35 mm suction hose and
fit onto the connection piece of the electric
tool.
• Insert the mains plug into the socket.
ENGLISH
Ø 26mm
Ø 35mm Ø 32mm
en - 3
