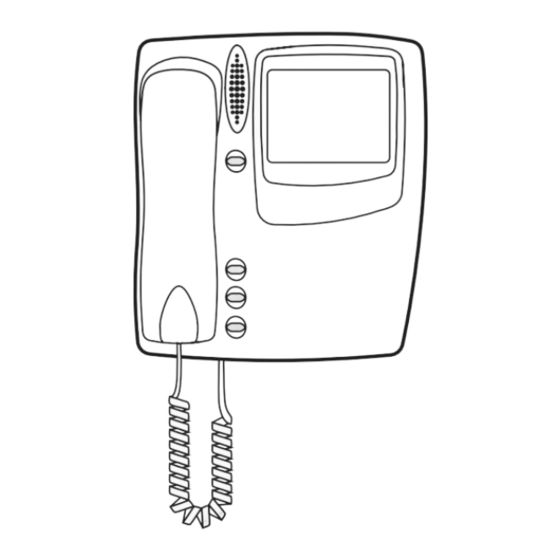

Alcad GRF-200 Manual De Instrucciones
Ocultar thumbs
Ver también para GRF-200:
- Manual de instalación (24 páginas) ,
- Manual del usuario (28 páginas)
Tabla de contenido
Publicidad
Enlaces rápidos
D I G I TA L V I D E O D O O R E N T RY S Y S T E M S
KITS
ENTRANCE PANEL
MONITOR
INDEX
ELEMENTS AND DIMENSIONS ..................................................................................................................................................2
GENERAL OPERATION OF THE VIDEO DOOR ENTRY SYSTEM ...................................................................................................3
BASIC INSTALLATION................................................................................................................................................................5
INSTALLATION IN DETACHED HOUSES WITH 2 POINTS OF ENTRY (2 x 1 DWELLING KIT)...........................................................7
INSTALLATION OF ADDITIONAL ELEMENTS.............................................................................................................................12
INSTALLING INSTRUCTIONS....................................................................................................................................................14
ADJUSTMENT INSTRUCTIONS .................................................................................................................................................20
TECHNICAL CHARACTERISTICS ...............................................................................................................................................22
TROUBLE SHOOTING .............................................................................................................................................................25
Publicidad
Tabla de contenido
Manuales relacionados para Alcad GRF-200
Resumen de contenidos para Alcad GRF-200
-
Página 1: Tabla De Contenido
D I G I TA L V I D E O D O O R E N T RY S Y S T E M S KITS ENTRANCE PANEL MONITOR INDEX ELEMENTS AND DIMENSIONS ..............................2 GENERAL OPERATION OF THE VIDEO DOOR ENTRY SYSTEM ....................3 BASIC INSTALLATION................................5 INSTALLATION IN DETACHED HOUSES WITH 2 POINTS OF ENTRY (2 x 1 DWELLING KIT)............7 INSTALLATION OF ADDITIONAL ELEMENTS..........................12... -
Página 2: Elements And Dimensions
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S ELEMENTS AND DIMENSIONS Monitor Entrance panel Flush-mounted box of 3, 4 storeys. Connection bracket Power supply Electric lock (1) The connection brackets included in this kit leave the factory programmed with a code associated to a pushbutton on the entrance... -
Página 3: General Operation Of The Video Door Entry System
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S GENERAL OPERATION OF THE VIDEO DOOR ENTRY SYSTEM NO CALL. SYSTEM ON STAND-BY The entrance panel is on stand-by, with the audio system disabled. - Página 4 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S When there are several points of entry, the panel from which the call is being made will remain active while the other will remain disabled.
-
Página 5: Basic Installation
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S BASIC INSTALLATION - SINGLE-WIRED DIAGRAM - 1 DWELLING KIT 2 DWELLINGS KIT TWISTED PAIR TWISTED PAIR SECTION TABLE Up to 100 m -... - Página 6 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S BASIC INSTALLATION - 2 DWELLINGS KIT GRF-200 cod. 9610018...
-
Página 7: Installation In Detached Houses With 2 Points Of Entry (2 X 1 Dwelling Kit)
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S INSTALLATION IN DETACHED HOUSES WITH 2 POINTS OF ENTRY (2 x 1 DWELLING KIT) - SINGLE-WIRED DIAGRAM - SECTION TABLE 1 DWELLING KIT... - Página 8 J1: An installation must have only one main entrance panel (panel with the jumper J1 installed) Extract the resistence from the terminals (T2 + ,T2 _ ) where the twisted pair cable is to be connected (steps 1 and 2). GRF-200 cod. 9610018 Main entrance panel (Leave the J1 jumper in place)
- Página 9 Note: You will have to re-program one of the brackets, see page 10. Extract the resistence from the terminals (T2 + ,T2 _ ) where the twisted pair cable is to be connected (steps 1 and 2). GRF-200 cod. 9610018 Secondary entrance panel (Remove the J1 jumper)
-
Página 10: Programming Instructions
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S INSTALLATION IN DETACHED HOUSES WITH 2 POINTS OF ENTRY PROGRAMMING INSTRUCTIONS The programming of the connections bracket must be carried out from the entrance panel which is configured as the main panel of the system (with J1 jumper in place: see wiring diagram on page 8). - Página 11 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S - PROGRAMMING STEPS - Maximum time limit Bracket programmed Maximum time limit...
-
Página 12: Installation Of Additional Elements
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S INSTALLATION OF ADDITIONAL ELEMENTS DOOR OPENING FROM INSIDE GRF-200 cod. 9610018 Push-button Push-button CONNECTION OF THE MONITOR'S AUXILIARY PUSH-BUTTONS Terminals number 24, 25 and 26, 27 are potential-free contacts. - Página 13 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S CONNECTING AN AC ELECTRIC LOCK Do not use electric locks whose electrical characteristics are different from those shown without previously consulting the manufacturer. GRF-200 cod. 9610018 Door-opening tone enabled Door-opening tone disabled...
-
Página 14: Installing Instructions
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S I N S TA L L I N G I N S T R U C T I O N S RECOMMENDATIONS - When installing the entrance panel make sure that the sunrays or intense light sources do not fall directly on the video unit, avoiding nonwhished effects in picture display (backlight effect) and same way keeping the operational life of the equipment. - Página 15 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S Place the rings of the panel over the extracted fixing pins. The unused pins should be placed in Remove the caps and the fixing pins from the flush- mounted box.
-
Página 16: Power Supply
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S POWER SUPPLY Install the power supply unit in a dry, well-ventilated place away from direct sources of heat. Avoid blocking the ventilation slots. Protect the power supply unit by complying with existing regulations governing electrical installations (avoid high-temperature locations and strong magnetic fields, ensure correct fusing, etc.). - Página 17 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S Cut the required perforated openings of the terminal cover. Fix it to the power supply unit using the fixing screws.
- Página 18 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S Make the electrical connections (consult wired diagrams). Check the adjustment (consult Page MONITEUR Connect the monitor connector to the connection bracket.
- Página 19 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S HOW TO DISMOUNT THE MONITOR FROM THE CONNECTION BRACKET Move the monitor upwards until it is Move the fixing tongue located in free of the fixing tongues of the the lower part of the monitor...
-
Página 20: Adjustment Instructions
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S ADJUSTMENT INSTRUCTIONS CONNECTION BRACKET - If necessary, adjust the call volume level. Nota: To test the call volume of the monitor, the latter must be connected to the connections bracket and a call made from the entrance panel. - Página 21 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S ENTRANCE PANEL - Adjust the video unit's view angle until getting the desired orientation. Adjust the volume level on the entrance panel and on the monitors/telephones (1).
-
Página 22: Technical Characteristics
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S TECHNICAL CHARACTERISTICS Note: Reference values are provided only to enable the checking of equipment and are reliable. Do not use the terminals of the equipment to feed additional devices without first consulting the manufacturer. - Página 23 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S - AUDIO UNIT GRF-200 - Voltage Power supply Current Operating temperature - NORMAL VOLTAGES DEPENDING ON THE STATE OF THE EQUIPMENT...
- Página 24 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S CONNECTION BRACKET SCM-040 - TERMINALS INACTIVE WORKING AT REST Operating temperature MONITOR MVB-002, MVC-002 SCREEN 4”...
-
Página 25: Trouble Shooting
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S TROUBLE SHOOTING Nothing works. connections D3, D2 of the equipment in the installation. If you Check the mains voltage in the power supply unit. - Página 26 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S The sound produces feedback. multiple-access video line is correctly loaded (resistence of 220 Adjust the feedback control of the audio unit (see step 1 on page ohms in the unused terminals T2+,T2–).
- Página 27 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S...
- Página 28 D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S 07-11-07...
