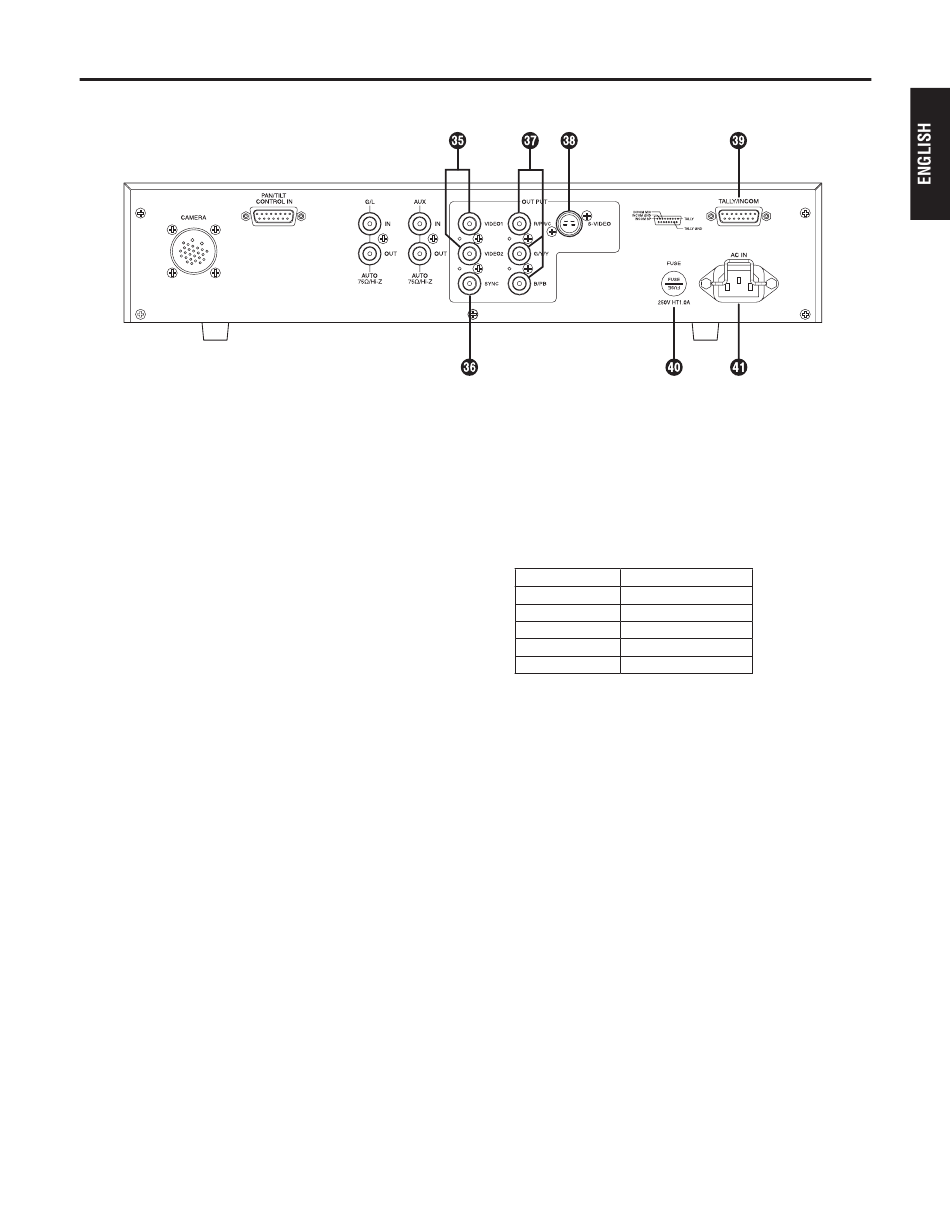

Parts and their functions
 Video output connectors [VIDEO1, VIDEO2]
The video signals from the camera after cable
compensation are output from these connectors. (The
same signal is output from connectors 1 and 2.)
Connect the connectors to the video input connectors
on the live switcher, colour monitor, VTR or other device.
(Output impedance: 75 ohms)
 SYNC output connector [SYNC]
The composite sync signal is output from this connector.
Connect the connector to the gen-lock input connector on
the colour monitor or other device.
(Output impedance: 75 ohms)
 RGB/Y, PR and PB/YC output connectors
[R/PR/C, G/Y/Y, B/PB]
If a camera such as the AW-E650 with RGB/Y, PR and
PB/YC signal output facilities is connected to the remote
control unit, its signals are output from these connectors.
(Output impedance: 75 ohms)
The RGB/Y, PR or PB/YC signals are selected using
the camera's menu. (For details, refer to the camera's
operating instructions.)
 S-Video output connector [S-VIDEO OUT]
(4-pin S-connector)
The same signals as the ones output from the R/PR/C
and G/Y/Y connectors among the RGB/Y, PR and PB/YC
output connectors  are output from this connector.
(Output impedance: 75 ohms)
The YC signals are selected using the camera's menu,
and connected to a colour monitor or other device
equipped with an S-Video input connector.
Note:
When the RGB/Y, PR and PB/YC output connectors 
and S-Video output connector  are used at the same
time, the level of the output signals will be reduced.
Therefore, use either connectors  or connector  in
line with the connectors used on the device connected to
the remote control unit.
 Tally/intercom input/output connector
[TALLY/INCOM] (D-SUB 15-pin connector)
Connect this to the TALLY & INCOM connector on the live
switcher (AW-SW350).
Set the INCOM selector switch on the live switcher
(AW-SW350) to [3-wire type].
When inputting the tally control signals from another
device, input them with 0 V for ON and open for OFF.
Pin No.
1
6
7
8
11
 Fuse holder [FUSE]
Fuse used: HT1AN5 (AC 250 V, 1 A)
 AC power socket [AC IN]
Attach one end of the power cord provided to this socket
and the other end to the AC 220 to 240 V (50 Hz) power
supply.
10 (E)
Signal Name
TALLY
INCOM MIC
INCOM GND
INCOM SP
TALLY GND
