Bixolon SRP-F310 Guia De Instalacion

KN04-00035A (Rev.1.3)
◈ Information
This installation guide contains quick information required for the product installation. Refer
to the User's Manual in the CD that comes with the product for detailed installation
instructions. The CD contains the following information.
1. Manual: User's Manual, Code table, and Control commands
2. Driver: Windows driver and OPOS driver
3. Utility: Logo download tool and virtual memory switch adjustment tool
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality
of all our products. In following, product specifications and/or user manual content may be
changed without prior notice.

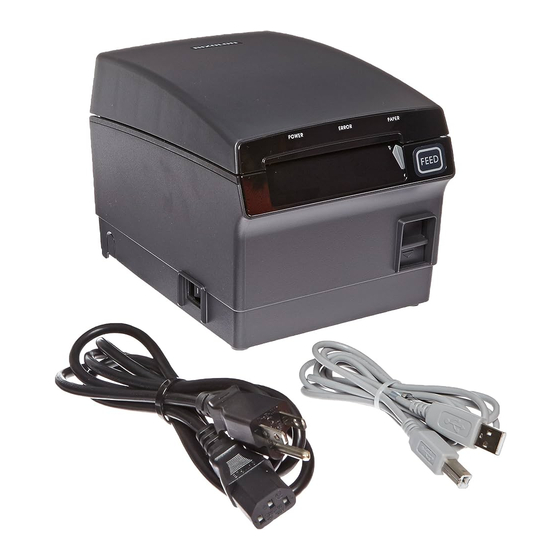

◈ Checking the Contents
SRP-F310 / SRP-F312
◈ Connecting Cables
1. Turn off the printer and ECR (host computer).
2. Connect the power cord to the adapter and connect the adapter to the power supply
connector of the printer.
3. Check the type of the interfaces at the back of the printer (serial, parallel, USB, and
Ethernet), and connect the interface cable.
4. Connect the drawer kick-out cable to the drawer kick-out connector of the printer.
Power Connector
Interface Connector
◈ Installing Paper Rolls
Note: Remaining paper sensor position adjustment
※
Control Lever
※ Do not use paper wider than 80 mm or plastic paper tube when using a printer
that specifies 80 mm paper.
Power Cord
Procuct Installation CD Procuct Installation CD Procuct Installation CD
CD Installation Guide
Drawer Kick-Out Cable
USB Dongle
Ethernet
Power USB
Serial,
Parallel I/F
1. Press the [Open Cover] button and open
the cover.
2. Insert new paper roll in the correct
direction.
3. Pull the paper slightly, and close the
cover.
※ Note
When closing the cover, hold down the
center of the cover so that the paper is
closely attached to the roller.
SRP-F310/312 printers have sensors to
notify when the paper is about to run out.
When the paper is about to run out, paper
lamp (red) in the operation panel will be on.
If the light is on while there is sufficient
paper, move up the adjustment lever
slightly.
Printer Installation Guide
Front Printing Thermal Printer SRP-F310/312
◈ Using Operation Panel
• POWER indicator
Blue light will be on when power is supplied to the printer.
• ERROR indicator
Red light will be on for error conditions such as no paper or open cover.
• PAPER indicator
Red light will be on when the paper is about to run out or if there is no paper. If this light
keeps blinking, it means either self test state or macro execution standby state.
• FEED button
Press feed button to feed the paper. Pressing and holding the feed button will feed the paper
continuously.
◈ DIP switch setting
DIP switch setting must be done while the printer is turned off. Changes during power on are
not recognized.
Paper Roll
1. Serial interface setting
• DIP switch 1
Switch
1-1 Auto-Cutter Selection
1-2 Handshaking
1-3 Word length
1-4 Parity check
1-5 Parity selection
1-6
1-7 Baud rate (bps)
1-8
2. Parallel / USB interface setting
• DIP switch 1
Switch
1-1 Auto-Cutter Selection
1-2
1-3
1-4
1-5
1-6
1-7
1-8
• Table 1 – Baud rate (bps) selection
Baud rate
2400
4800
9600
19200
38400
57600
115200
◈ Self Diagnostics
1. Check whether the paper is inserted correctly.
2. Turn on the printer while depressing the Feed button. Self diagnostics will begin.
3. The printer prints the current status of the printer such as the version of the ROM and DIP
switch setting.
4. The printer prints the current status and stops after printing the following statement.
(PAPER indicator keeps blinking.)
5. Press the Feed button to continue to print. Then the printer will print the character sets that
can be printed.
6. Self diagnostics will end automatically and the paper will be cut after printing the
following statement.
7. The printer will be in normal mode after self diagnostics is completed.
※ Note
You can check whether the printer operates normally or not through self diagnostics. You
can check printing quality, ROM version, and DIP switch settings through self diagnostics.
Function ON
Disable
XON/XOFF
7 bit
YES
EVEN
Refer to Table 1 shown below
Function ON
Disable
N/A -
N/A -
N/A -
N/A -
N/A -
N/A -
N/A -
1-6 1-7
ON OFF
ON OFF
OFF ON
OFF OFF
OFF ON
OFF OFF
ON ON
SELF-TEST PRINTING.
PLEASE PRESS THE FEED BUTTON
*** COMPLETED ***
OFF Default
Enable OFF
DTR/DSR OFF
8 bit OFF
NO OFF
ODD OFF
OFF
ON
OFF
OFF Default
Enable OFF
- OFF
- OFF
- OFF
- OFF
- OFF
- OFF
- OFF
1-8 Default
OFF
ON
OFF
OFF 9600
ON
ON
ON
