KN04-00083A (Rev.1.4)
◈ Information
This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Code Chart, and Control Commands
2. Drivers: Windows Driver, OPOS Driver
3. Utility: Logo Download Tool
We at Bixolon Co., Ltd. constantly strive to improve product functions and quality. To do
this, the specifications of our product and the contents of the manual may change without
prior notice.
◈ Components
Cable Cover

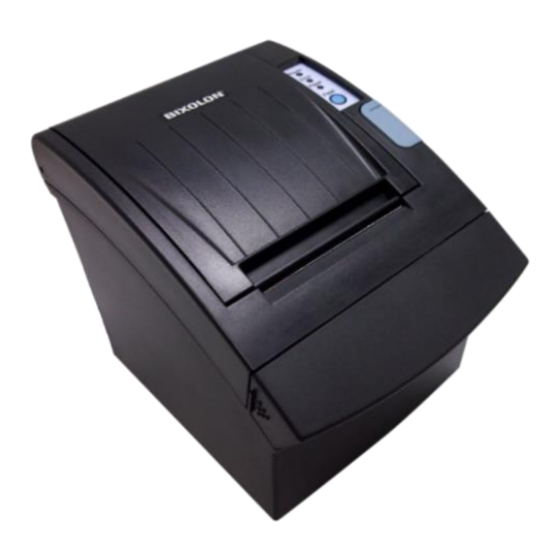

SRP-350/352III
AC/DC Adaptor
◈ Cable Connection
1. Turn off the printer and the host ECR (host computer).
2. Plug the power cord into the adaptor and then plug the adaptor into the power connector of
the printer.
3. Check the interface type on the back of the printer (Serial, Parallel, USB or Ethernet), and
connect the interface connector cable.
4. Plug the drawer kick-out cable into the drawer kick-out connector on the printer.
※ Do not use an adapter that was not supplied with the printer.
Interface cable
Interface connector
(Serial/Parallel/USB/Ethernet)
◈ Installing Paper Roll
◈ Paper Jam
1. Turn the power of the printer off or on and open the cover to remove the paper.
2. If the cover is not opened, turn off the power of the printer and separate the cover-cutter
and then turn the knob of the auto cutter to open the cover.
Procuct Installation CD
Procuct Installation CD
Procuct Installation CD
Paper Roll
Power Cord
Installation Guide
Drawer kick-out connector
Power connector
Adaptor
Drawer
kick-out
cable
1. Open the Cover-Open button to open the cover.
2. Insert a new paper roll in the right direction.
3. Pull out a small amount of paper and then close
the cover.
※ Note
To make the paper tightly close to the roller when
closing the cover, press the center of the cover.
Printing quality may not be optimum if
recommended paper is not used.
(Refer to the User's Manual.)
(Refer to 1-6 in User Manual)
Printer Installation Guide
THERMAL PRINTER
◈ Using Control Panel
CD
◈ Setting DIP Switches
To change the Dip Switches settings, turn the printer power off. Any changes while the
printer is on will not be processed.
1. Serial Interface Setting
• DIP Switch 1
SW
1-1
Auto Line Feed
1-2
Flow Control
1-3
Data Length
1-4
Parity Check
1-5
Parity Selection
1-6
1-7
Baud Rate Selection (bps)
1-8
• DIP Switch 2
SW
2-1
2-2
2-3
Internal Bell Control
2-4
Auto Cutter Selection
2-5
Printing Density
2-6
2-7
Near End Sensor Contorl
2-8
Auto External Buzz
2. Parallel / USB / Ethernet Interface Setting
• DIP Switch 1
SW
1-1
Auto Line Feed
1-2
1-3
1-4
1-5
Power
1-6
cord
1-7
1-8
• DIP Switch 2
SW
2-1
2-2
2-3
Internal Bell Control
2-4
Auto Cutter Selection
2-5
Printing Density
2-6
2-7
Near End Sensor Contorl
2-8
Auto External Buzz
• Tab. 1 – Selection of Baud Rate (bps)
Transmission Speed
2400
4800
9600
19200
38400
57600
115200
• Tab. 2 – Selection of Printing Density
Printing Density
Level 1
Level 2
Level 3
Level 4
SRP-350/352III
• Power (Signal Lamp)
When turning on the power, a green LED will be lit.
• Error (Signal Lamp)
When an error occurs, a red LED will be lit.
(e.g. no paper, cover ajar, etc.)
• Paper (Signal Lamp)
Red LED will be lit when the paper roll is running low. The LED
blinks when the printer is in self-test standby mode or macro execution
standby mode.
• Feed (Button)
Press the FEED button once to discharge extra paper. Holding down
the FEED button will discharge paper continuously until the button is
released.
Function
ON
Enabled
XON/XOFF
7-bit
Yes
EVEN
Refer to the following Table 1
Function
ON
Reserved
-
Reserved
-
Disabled
Disabled
Refer to the following Table 2
Disabled
Enabled
Function
ON
Enabled
Reserved
-
Reserved
-
Reserved
-
Reserved
-
Reserved
-
Reserved
-
Reserved
-
Function
ON
Reserved
-
Reserved
-
Disabled
Disabled
Refer to the following Table 2
Disabled
Enabled
1-6
1-7
ON
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
ON
OFF
OFF
ON
ON
2-5
2-6
OFF
OFF
ON
OFF
OFF
ON
ON
ON
OFF
Default
Disabled
OFF
DTR/DSR
OFF
8-bit
OFF
No
OFF
ODD
OFF
OFF
ON
OFF
OFF
Default
-
OFF
-
OFF
Enabled
OFF
Enabled
OFF
OFF
OFF
Enabled
OFF
Disabled
OFF
OFF
Default
Disabled
OFF
-
OFF
-
OFF
-
OFF
-
OFF
-
OFF
-
ON
-
OFF
OFF
Default
-
OFF
-
OFF
Enabled
OFF
Enabled
OFF
OFF
OFF
Enabled
OFF
Disabled
OFF
1-8
Default
OFF
ON
OFF
OFF
9600
ON
ON
ON
Default
- Level 1 is Default
- Level 4 is Darkest
