Bixolon SRP-F310II Guia De Instalacion

KN04-00099A (Rev.1.0)
◈ Information
This installation guide contains quick information required for the product
installation. Refer to the User's Manual in the CD that comes with the product for
detailed installation instructions. The CD contains the following information.
1. Manual: User's Manual, Code table, and Control commands
2. Driver: Windows driver and OPOS driver
3. Utility: Logo download tool and virtual memory switch adjustment tool
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions
and quality of all our products. In following, product specifications and/or user
manual content may be changed without prior notice.
◈ Checking the Contents
SRP-F310/312/313II
◈ Connecting Cables
1. Turn off the printer and ECR (host computer).
2. Connect the power cord to the adapter and connect the adapter to the power
supply connector of the printer.
3. Check the type of the interfaces at the back of the printer (Serial, Paralle, USB,
Ethernet, Powered USB, Wireless LAN, Bluetooth), and connect the interface
cable.
4. Connect the drawer kick-out cable to the drawer kick-out connector of the
printer.
Power Cable
Interface Cable
◈ Installing Paper Rolls
※ Do not use paper wider than 80 mm or plastic paper tube when using a
printer that specifies
80 mm paper.
◈ Using 83mm Paper
Remove the partition installed in the printer to use 83mm roll paper.
※ Refer to the User's Manual for detailed instructions on how to remove the
partition safely.

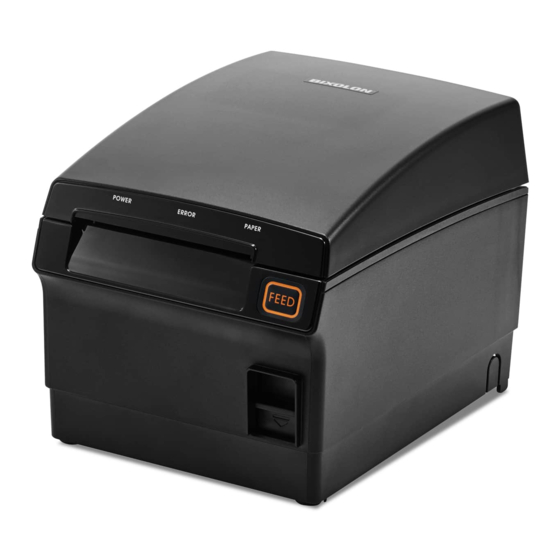

Front Printing Thermal Printer SRP-F310/312/313II
Power Cord
Procuct Installation CD Procuct Installation CD Procuct Installation CD
CD Installation Guide
Drawer Kick-Out Cable
USB Dongle
Ethernet
Power
Serial, Paralle, Powered USB,
Wireless LAN, Bluetooth
1. Press the [Open Cover] button and
open the cover.
2. Insert new paper roll in the correct
direction.
3. Pull the paper slightly, and close the
cover.
※ Note
When closing the cover, hold down
the center of the cover so that the
paper is closely attached to the roller.
Printing quality may not be optimum
if recommended paper is not used.
(Refer to the User's Manual.)
Printer Installation Guide
◈ Using Operation Panel
• POWER indicator
Blue light will be on when power is supplied to the printer.
• ERROR indicator
Red light will be on for error conditions such as no paper or open cover.
• PAPER indicator
Red light will be on when the paper is about to run out or if there is no paper. If
this light keeps blinking, it means either self test state or macro execution standby
state.
• FEED button
Press feed button to feed the paper. Pressing and holding the feed button will feed
the paper continuously.
◈ DIP switch setting
DIP switch setting must be done while the printer is turned off. Changes during
power on are not recognized.
Paper Roll
1. Serial interface setting
• DIP switch 1
Switch
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
2. Parallel / USB / Ethernet / Wireless LAN / Powered USB interface setting
• DIP switch 1
Switch
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
3. Bluetooth interface setting
• DIP switch 1
Switch
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
• Table 1 – Baud rate(bps) selection
Baud rate
2400
4800
9600
19200
38400
57600
115200
※ Auto Cutter Enable / Disable selection
SW1 - 1
Application
Function
Auto-Cutter Selection Disable
Handshaking XON/XOFF
Word length 7 bit
Parity check YES
Parity selection EVEN
Baud rate (bps) Refer to Table 1 shown below
Function
Auto-Cutter Selection Disable
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Function
Auto-Cutter Selection Disable
N/A
SSP Mode Enabled
N/A
N/A
N/A
N/A
N/A
1-6
ON
ON
OFF
OFF
OFF
OFF
ON
Dip Switch Set 1
ON
OFF
Ignores Auto Cutter error for continuous printing
ON OFF Default
Enable OFF
DTR/DSR OFF
8 bit OFF
NO OFF
ODD OFF
OFF
ON
OFF
ON OFF Default
Enable OFF
- - OFF
- - OFF
- - OFF
- - OFF
- - OFF
- - OFF
- - OFF
ON OFF Default
Enable OFF
- - OFF
Disabled OFF
- - OFF
- - OFF
- - OFF
- - ON
- - OFF
1-7 1-8 Default
OFF OFF
OFF ON
ON OFF
OFF OFF 9600
ON ON
OFF ON
ON ON
Auto Cutter Disable
Auto Cutter Enable
