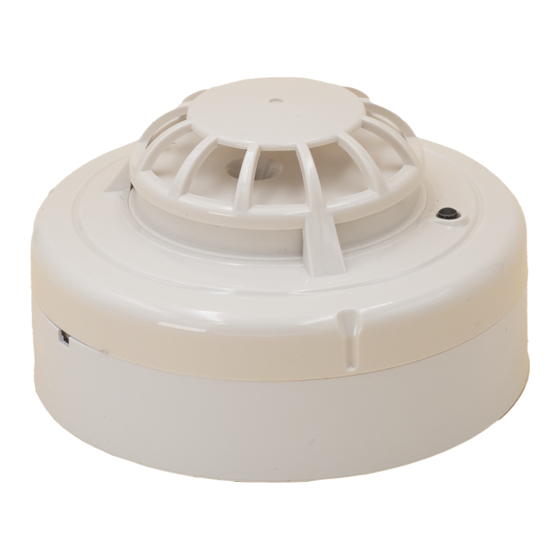

INSTALLATION AND MAINTENANCE INSTRUCTIONS FOR MODELS 5351E
RATE OF RISE AND 4351E HIGH TEMPERATURE HEAT DETECTORS
Before installing detectors, please thoroughly read System Sensor's guide for the proper use of system smoke and heat detectors, which provides
detailed information on detector spacing, placement, zoning, wiring, and special applications. Copies of this manual are available at no charge
from System Sensor.
GENERAL DESCRIPTION
Model 4351E and 5451E heat detectors use a single thermistor sensing element combined with state of the art electronics to provide ambient
temperature compensation, and fast response. The ability to plug these detectors into a variety of base options extends panel compatibility and
application flexibility. These detectors are designed to provide open area protection and to be used with compatible control panels
only.
A bicolour LED on each detector lights red to provide a local visible alarm indication, and may also be set to flash green to indicate correct
operation of the detector. Remote LED annunciator capability is available as an optional
accessory wired to the standard base terminals. These detectors also have a latching alarm
feature. The alarm can only be reset only by a momentary power interruption.
A dedicated tool is available from System Sensor, which may be used to access operating data
from the detector, see the operating manual for the tool for further details.
SPECIFICATIONS
Height
55mm (mounted in a B401 base)
Diameter
102 mm
Weight
93g (excluding base)
Normal operating temperature range
-20°C to 60°C
Note: 4351E Alarm threshold is 78°C
Supply voltage
8 - 30VDC
Air velocity
20m/s (4000 ft/min)
Humidity
5 - 95%RH (non-condensing)
Quiescent current
120µA Typical
Latching alarm
Reset by momentary power interruption.
The 5351E has been independently tested and certified to EN54-5: 2000 Class A1R.
The 4351E has been independently tested and certified to EN54-5: 2000 Class BS.
Note: Do not install in locations where the normal ambient temperature range extends
beyond 0°C to 50°C for extended periods.
BASE MOUNTING AND WIRING INSTRUCTIONS
Verify that the detector base supplied is compatible with the system control panel.
400 series bases may be mounted to standard electrical junction boxes with 50-60 mm centre fixings.
See figure 1 for terminal connections on standard bases. If relay bases are to be used, please refer to the relevant base instructions, and
packaging.
Note: Series 300 detectors are polarity conscious, and must be wired as indicated above.
Note: Do not loop wire under terminals: break the wire run to ensure supervision of connections.
Note: All wiring must conform to applicable local and national codes and regulations.
Each 400 series base is fitted with a shorting spring, which may be used to connect across terminals 2 and 3 to permit loop wiring to be checked
before installation of detector heads. This spring automatically disengages when the detector is fitted into the base.
Remove power from detector monitoring circuits before installing detectors.
DETECTOR INSTALLATION
1.
Place the detector into the detector base and rotate the detector
clockwise with gentle pressure until the detector drops into place.
2.
Continue rotating the detector clockwise to lock it in place.
3.
After all detectors have been installed, apply power to the detector
monitoring circuits.
4.
Test the detector as described under TESTING.
5.
Reset the detector at the system control panel.
Tamper-resistance
The detector bases include a feature that, when activated, prevents
removal of the detector without the use of a tool. See figure 2 for details.
D300-02-00
ACCESS MENUS
Figure 1: Base Terminal Wiring
V-
2
3
-
1
+
4
5
R
V+
NOTE: WHEN A BASE FITTED WITH A RESISTOR (R) BETWEEN
TERMINALS 4 AND 5 IS USED, THE WIRING SHOULD FOLLOW
THE DASHED LINE
A SCHOTTKY DIODE CONNECTED BETWEEN TERMINALS 2
AND 3 DOES NOT AFFECT BASE WIRING
WARNING
Figure 2: Tamper Resist Feature
TO ACTIVATE THE TAMPER RESIST FEATURE, BREAK TAB ON PLASTIC
LEVER AT DOTTED LINE BY TWISTING TOWARD CENTRE OF BASE
TO REMOVE A DETECTOR ONCE THE TAMPER RESIST
FEATURE HAS BEEN ACTIVATED, INSERT A SMALL
SCREWDRIVER INTO THE SLOT IN THE SIDE OF THE BASE
AND APPLY PRESSURE TOWARDS THE BASE WHILST
ROTATING THE DETECTOR IN AN ANTI-CLOCKWISE
DIRECTION.
Dust covers are fitted to the detectors to help protect units during shipment and when first installed. They are not intended to
provide complete protection against contamination; therefore detectors should be removed before beginning construction, major
re-decoration or other dust producing activity. Dust covers must be removed before the system can be made operational.
TESTING
Detectors must be tested after installation and following periodic maintenance. However, before testing,
notify the proper authorities that the system is undergoing maintenance and the system will be
temporarily out of service. Disable the zone or system undergoing maintenance to prevent unwanted
alarms.
Test the detector as follows:
Direct Heat Method
1.
Use either a specialised tool such as supplied by No Climb Products Limited, or a hairdryer of
1000 to 1500 Watts.
2.
Direct the heat towards the sensor thermistor from it's side. Hold the heat source about 15cm
away from the detector to prevent damage during the test.
3.
The red LED on the detector should latch into alarm within 30 seconds, and the control panel
should activate into alarm.
Laser test tool method (model no. S300RTU)
Note: this method does not carry out a complete functional test of the detector.
1.
Align the flashing red spot produced by the laser beam with the led on the detector.
2.
The red LED on the detector should latch into alarm within a few seconds, and the control panel
SHORTING
should activate into alarm.
SPRING
V-
The S300RTU test tool is a Class II laser product.
Do not direct the beam towards a person's face or eyes, as eye damage may occur
Detectors that fail these tests should be cleaned as described under MAINTENANCE and re-tested. If
the detectors still fail these tests they should be returned for repair.
After completion of all tests notify the proper authorities that the fire system is operational.
MAINTENANCE
Before cleaning, notify the proper authorities that the system is undergoing maintenance and will be temporarily out of service. Disable the
V+
system to prevent unwanted alarms.
1.
Remove the detector to be cleaned from the system.
2.
Use a vacuum cleaner and/or clean, compressed air to remove dust and debris from the sensing element protruding through the chamber
cover.
3.
Reinstall the detector cover. Align the led with the cover assembly and snap the cover into place, ensuring that all the cover removal tabs
are correctly engaged.
4.
When all the detectors have been cleaned, restore power to the circuit and test the detector as described in TESTING above.
After maintenance has been completed, notify the proper authorities that the fire system is operational.
Heat sensors are designed to protect property, not life. They do not provide early warning of fire and cannot detect smoke, gas, combustion
particles or flame. Given the rapid growth of certain types of fire, heat sensors cannot be expected to provide adequate warning of fires resulting
from smoking in bed, inadequate fire protection practices, violent explosions, escaping gas, improper storage of flammable liquids like cleaning
solvents, other safety hazards or arson.
Heat sensors do not always detect fires because the fire may be a slow smouldering, low-heat type (producing smoke) or because they may not
be near where the fire occurs or because the heat of the fire may bypass them. Heat sensors will not detect smoke, gas, flames or
combustion particles.
Heat sensors are components in professionally installed fire alarm systems. They will not function if they have been improperly wired into
the fire alarm system or if power to them is cut for any reason.
Heat sensors cannot last forever. They contain electronic parts. Even though heat detectors are made to last over 15 years, any of these parts
could fail at any time. Therefore test your detector system at least twice annually. Clean and take care of your detectors regularly. Taking care of
the fire detection system you have installed will significantly reduce your liability risks.
1
Pittway Tecnologica S.p.A, Via Caboto 19/3, 34147 Trieste, Italy
CAUTION
CAUTION
WARNING
LIMITATIONS OF HEAT SENSORS
Figure 3: 5351E and 4351E
Thermal Detectors
DETECTOR COVER
THERMAL
DETECTOR
CHAMBER
COVER
DETECTOR
BASE
© System Sensor 2001
I56-1719-000
