Bixolon SRP-350II Guia De Instalacion

KN04-00048A (Rev.1.1)
◈ Information
This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Code Chart, Control Commands
2. Drivers: Windows Drivers, OPOS Drivers
3. Utilities: a logo download tool
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality
of all our products. In following, product specifications and/or user manual content may be
changed without prior notice.

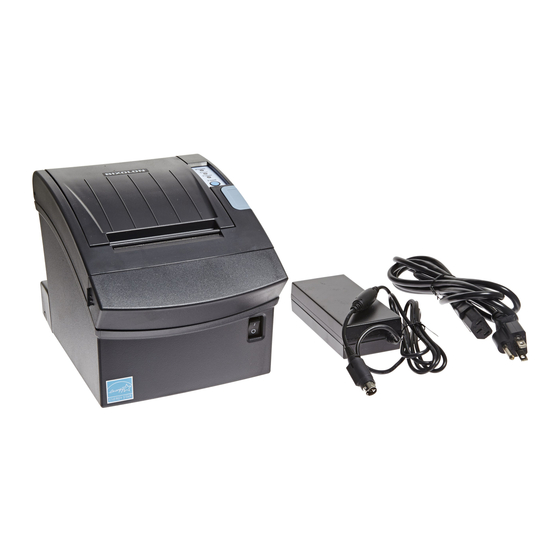

◈ Components
Cable Cover
SRP-350II
AC/DC Adaptor
◈ Connecting the Cables
1. Turn off the printer and the host ECR (host computer).
2. Plug the power cord into the Adaptor, and then plug the Adaptor into the power connector
of the printer.
3. Check the interface cable (Serial, Parallel, USB, or Ethernet), and connect the interface
connector cable accordingly.
4. Plug the drawer kick-out cable into the drawer kick-out connector on the printer.
Interface connector
Interface cable
(Serial/Parallel/USB/Ethernet)
◈ Installing the Paper Roll
※ Note: Adjusting the Paper Near-End Sensor
Near end sensor tab
Paper Roll
Power Cord Installation Guide
Drawer kick-out connector
Power connector
Adaptor
Drawer
kick-out
cable
Power cord
1. Open the paper roll cover by pressing the
cover-open button.
2. Insert a new paper roll, making sure to align it
properly.
3. Pull out a small amount of paper, and close the
cover.
※ Note
When closing the cover, press down on the center
of the cover to ensure that the paper is in contact
with the roller.
The SRP-350II has a paper near-end sensor that
provides notice that the paper roll is nearly
exhausted. When the paper is running low, the
lamp on the apparatus is lit red. If the lamp is
activated even when sufficient paper remains,
adjust the near-end sensor setting by pushing the
tab upward towards1.
Printer Installation Guide
THERMAL PRINTER SRP-350II
◈ Using the Operation Panel
Procuct Installation CD Procuct Installation CD Procuct Installation CD
CD
◈ Setting the Dip Switches
Changing Dip Switch settings must be done when the printer is off. Any changes done while
the printer is on will not be processed.
1. Serial Interface
• DIP Switch 1
SW
1-1 Auto Line Feed
1-2 Flow Control
1-3 Data Length
1-4 Parity Check
1-5 Parity Selection
1-6
1-7 Baud rate Selection (bps)
1-8
• DIP Switch 2
SW
2-1 Auto cutter control
2-2 Internal bell control
2-3 Auto Cutter
2-4 Reserved
2-5
Print Density
2-6
2-7 Near-End Sensor Status
2-8 External buzzer control
2. Parallel / USB Interface
• DIP Switch 1
SW
1-1 Auto Line Feed
1-2
1-3
1-4
1-5
1-6
1-7
1-8
• DIP Switch 2
SW
2-1 Auto cutter control
2-2 Internal bell control
2-3 Auto Cutter
2-4 Reserved
2-5
Print Density
2-6
2-7 Near-End Sensor Status
2-8 External buzzer control
• Table 1 – Baud Rate (bps) Selection
Transmission Speed
2400
4800
9600
19200
38400
57600
115200
• Table 2 – Print Density Selection
Print Density
1 (Light)
2 (Medium)
3 (Dark)
• POWER (LED)
When turning on the power, a green LED will be lit.
• ERROR (LED)
When an error occurs, a red LED will be lit.
(e.g. no paper, cover ajar, etc.)
• PAPER (LED)
Red LED will be lit when the paper roll is running low. The LED
blinks when the printer is in self-test standby mode or macro execution
standby mode.
• FEED (Button)
Press the FEED button once to discharge extra paper. Holding down
the FEED button will discharge paper continuously until the button is
released.
Function ON
Enable
XON/XOFF
7 bits
Yes
EVEN
Refer to the following Table 1
Function ON
Full cut
Internal bell disable
Auto cutter disable
-
Refer to the following table 2
Disable
External buzzer
enable
Function ON
Enable
Reserved -
Reserved -
Reserved -
Reserved -
Reserved -
Reserved -
Reserved -
Function ON
Full cut
Internal bell disable
Auto cutter disable
-
Refer to the following table 2
Disable
External buzzer
enable
1-6 1-7
ON OFF
ON OFF
OFF ON
OFF OFF
OFF ON
OFF OFF
ON ON
2-5
ON
OFF
OFF
OFF Default
Disable OFF
DTR/DSR OFF
8 bits OFF
No OFF
ODD OFF
OFF
ON
OFF
OFF Default
Partial cut OFF
Internal bell enable OFF
Auto cutter enable OFF
- OFF
OFF
OFF
Enable OFF
External buzzer
OFF
disable
OFF Default
Disable OFF
- OFF
- OFF
- OFF
- OFF
- OFF
- ON
- OFF
OFF Default
Partial cut OFF
Internal bell enable OFF
Auto cutter enable OFF
- OFF
OFF
OFF
Enable OFF
External buzzer
OFF
disable
1-8 Default
OFF
ON
OFF
9600
OFF
ON
ON
ON
2-6 Default
ON
OFF 2
ON
