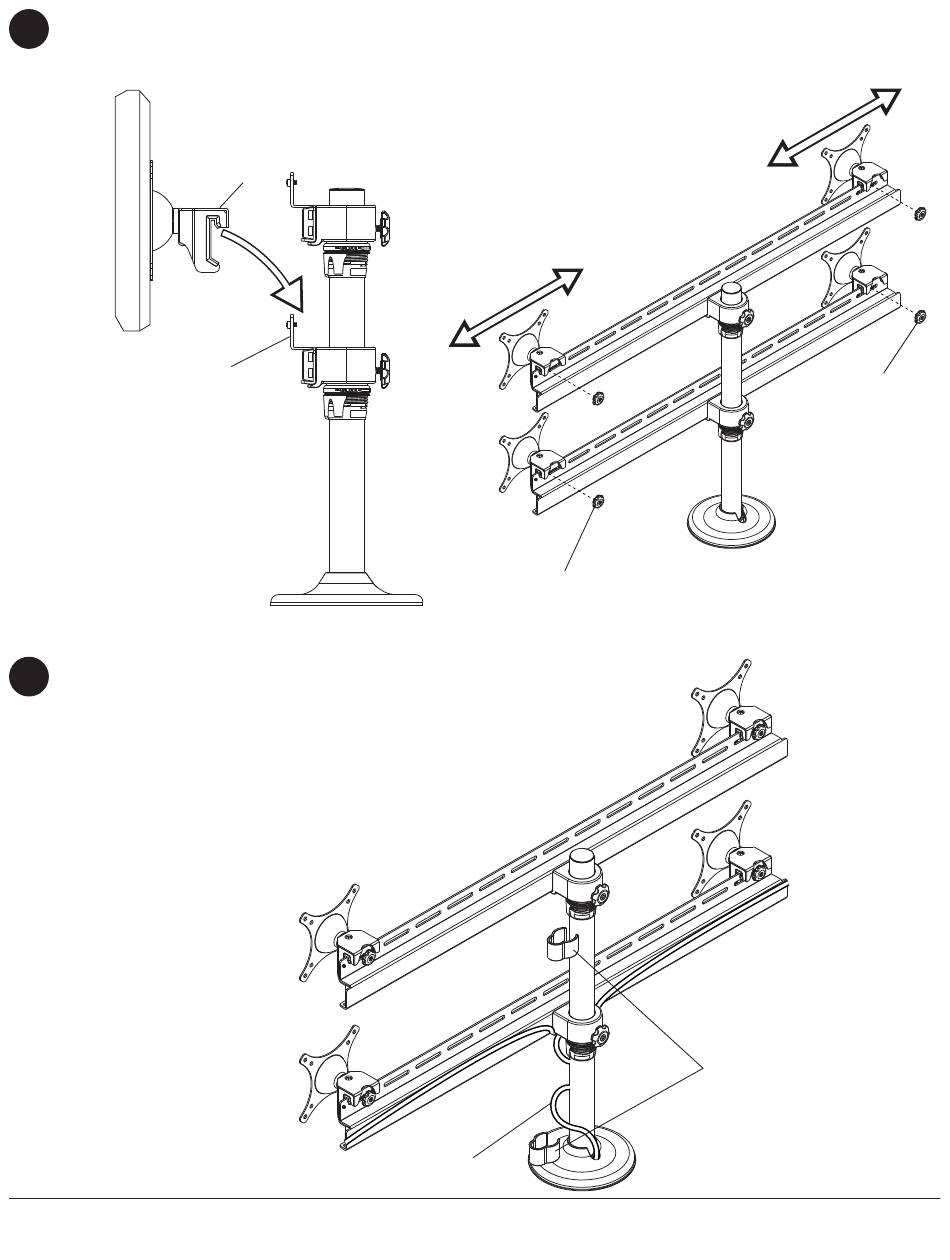

Hook mounting brackets (C) onto crossbar (F).
7
Adjust position of displays horizontally to desired location and install knobs (J) into rear of mounting brackets.
Knobs (J) may be tightened using 3mm allen wrench (L).
Cables may be routed using cable clip (K).
8
C
F
J
CABLES
8 of 26
K
ISSUED: 04-05-11 SHEET #: 090-9201-4 (2013-10-03)
J
