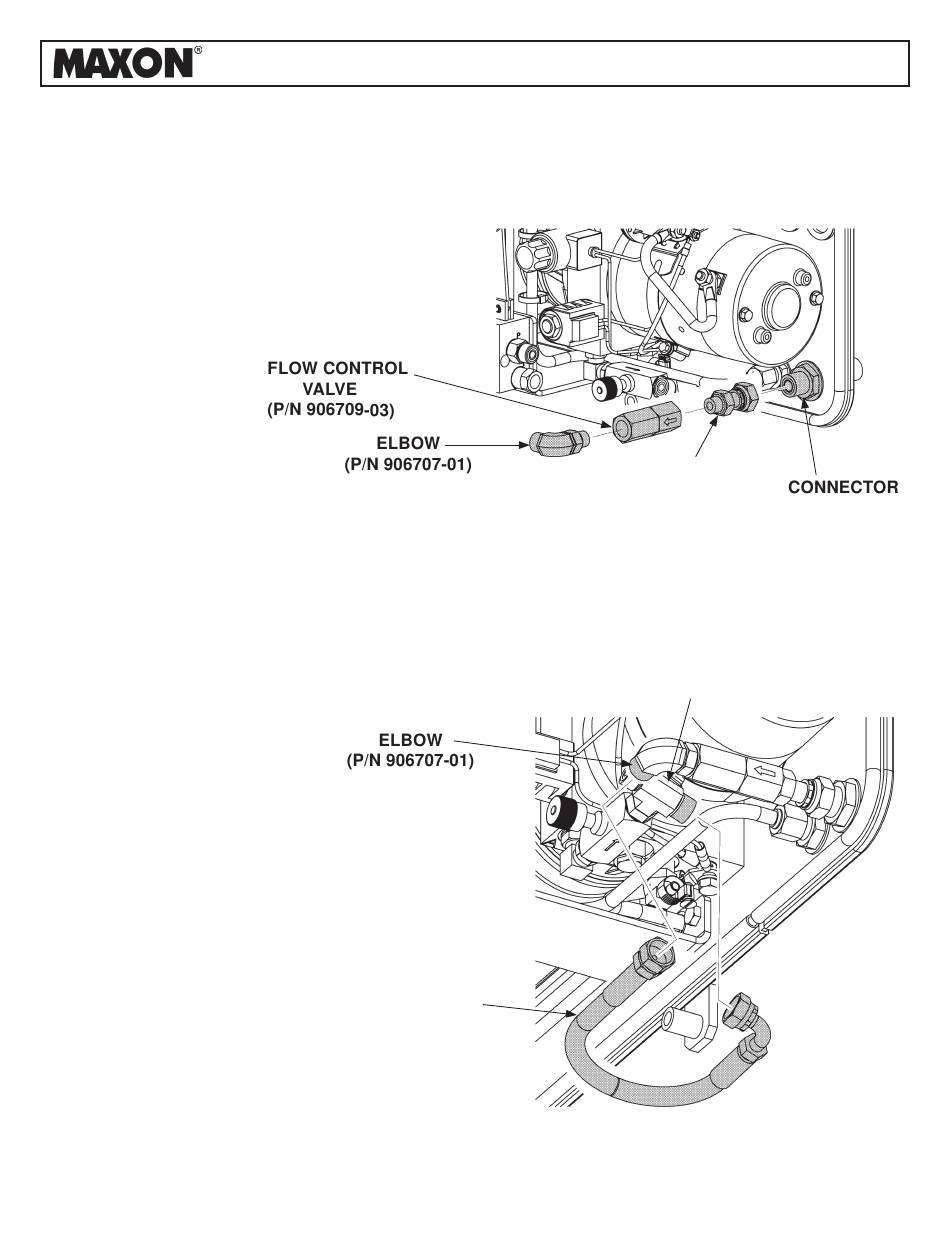

16. Connect elbow, fl ow control valve, SAE #6 fi t-
ting (Kit items), to high-pressure connector on
pump mounting plate (FIG. 9-1). Do not tighten
connectors until later in this procedure.
17. Connect high-pressure hose (Kit item) to
branch tee and elbow (Kit items) (FIG. 9-2). Do
not tighten connectors until later in this proce-
dure.
© MAXON Lift Corp. 2018
Sht. 9 of 48 DSG#

HOSE ASSEMBLY, 1/4"

(P/N 285658-01)
M-13-05
FITTING, SAE #6
(P/N 906751-01)
CONNECTING FLOW CONTROL VALVE
AND FITTINGS
FIG. 9-1
BRANCH TEE
(P/N 906745-01)
CONNECTING HIGH PRESSURE HOSE
TO BRANCH TEE AND FITTINGS
FIG. 9-2
