OPTIONAL WIRED SWITCH

In addition to the remote control, it is possible to control motor start and stop with
a commutator or a button, connected to the optional wired switch (white wire).
The control unit may be programmed to operate with commutators and buttons
in "dead man mode" (DM) or "latching mode" (MC).
DM - DEAD MAN MODE
The up and down controls remain active as long as the contact is closed, in any
case complying with the 3 minute time-out. To stop the motor set the commutator
to Stop.
MC - LATCHING MODE
A short up or down impulse is enough to activate the outputs with the time-out
set at 3 minutes. To stop the motor, press up or down again.

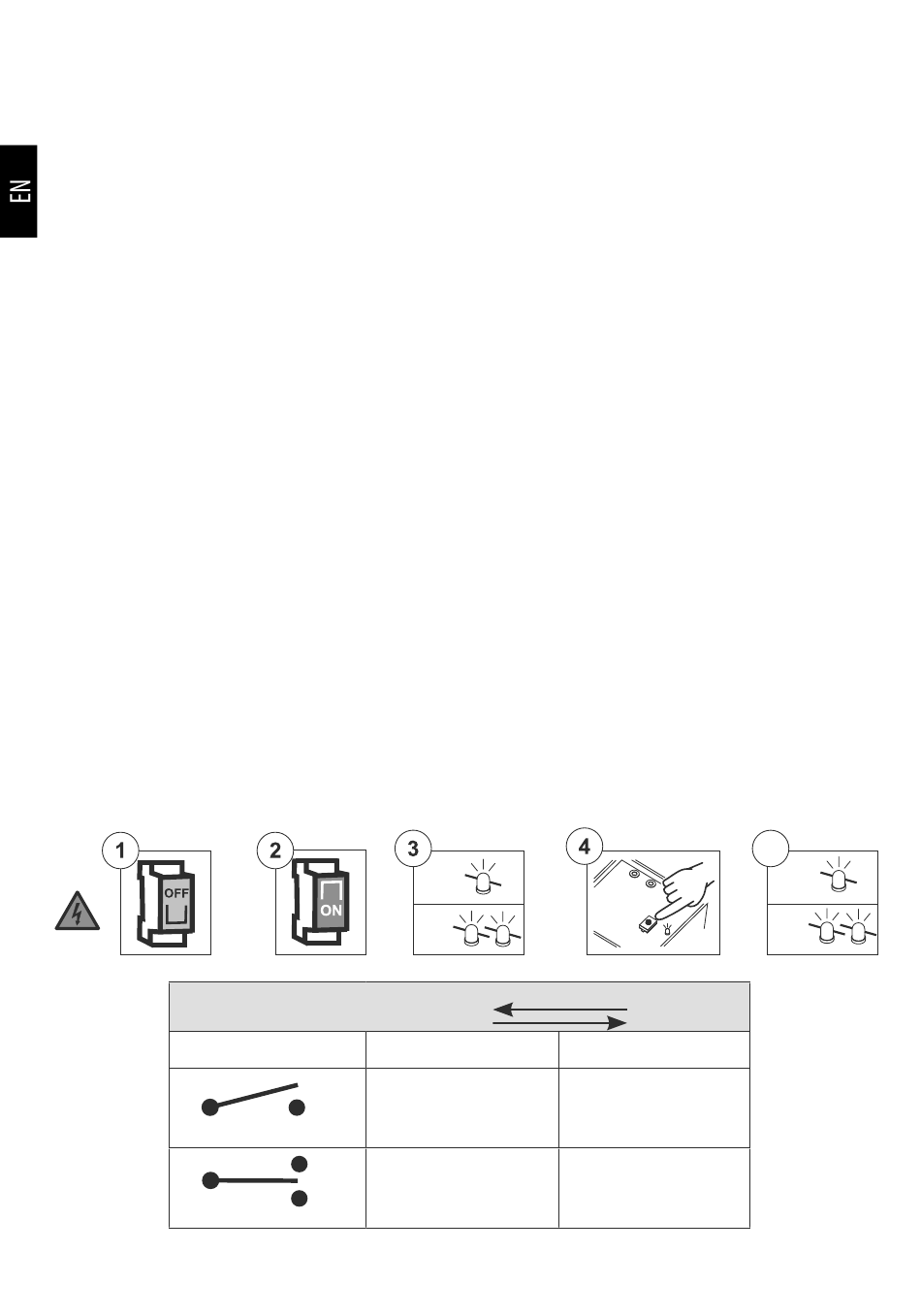

MODE CHANGE FROM DM TO MC AND VICE VERSA
The control unit is set at the factory for the DM mode. To change from the DM Mode
to the MC Mode, do the following:
1) Disconnect the power, and wait at least 5 seconds.
2) Reconnect the power.
3) Stand by for the Led signal that indicates the current mode:
• 1 impulse for the DM Mode.
• 2 impulses for the MC Mode.
4) Within 4 seconds press the SET button: the Led shows the new mode with the
relative number of impulses.
BUTTON (step-by-step)
COMMUTATOR (Up/Down)
TM2 X R MINI
5 sec
....
within
DM
4 sec
....
MC
MODE CHANGE
DM
NO
√
28
5
DM
MC
MC
√
√
