7-7-2

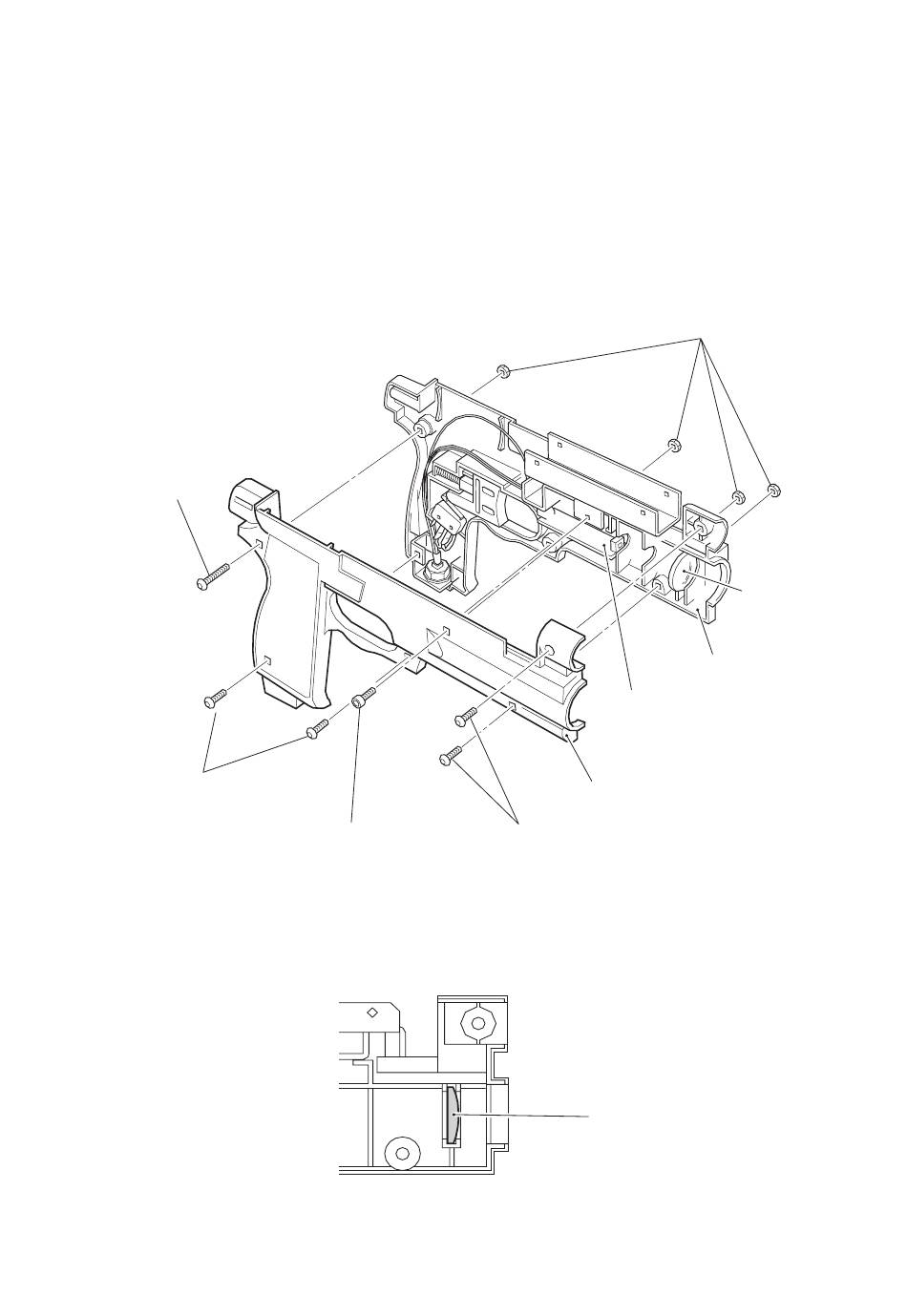

Separating the Gun Body

1. Remove the Switch Panel Assy.
2. Remove the Gun Assembly.
3. Remove the Gun Covers
4. Remove 4off socket head screw (M4x10), 4off dome nut (M4). 1off socket
head screw (M4x25), 1off socket cap screw (M3x10) and remove the Gun
Body (R).
Socket head screw
(M4x25)
Socket head screw
(M4x10)
Note: When reassembling the Gun Body ensure that the Lens is fitted correctly, (Curved
face of lens faces forward.). Failure to fit the lens correctly will prevent the gun
from working properly.
Note: Always reinitialize the guns if the guns has been removed or replaced.
(see 6-2-3-1 page 47)
(See 7-7-1 page 68)
Socket cap screw
(M3x10)
Page 69
(See 7-5 page 65)
(See 7-7 page 67)
NF-Gun (DX) PC Board
Gun Body (R)
Socket head screw
(M4x10)
Lens
(Curved face to front)
Dome nut (M4)
Lens
Gun Body (L)
