Hmt-4004-0Mgh Features - Mi-T-M HMT-4004-0MGH Manual Del Operador

16
15
14
2
1
1 Quick Connect Nozzle Holder
2 Fuel Tank
3 Engine
4 Gas Tank
5 Choke
6 Control Panel
7 Rocker Switch - Burner
8 Water Inlet
9 Water Outlet
10 High Pressure Pump
10

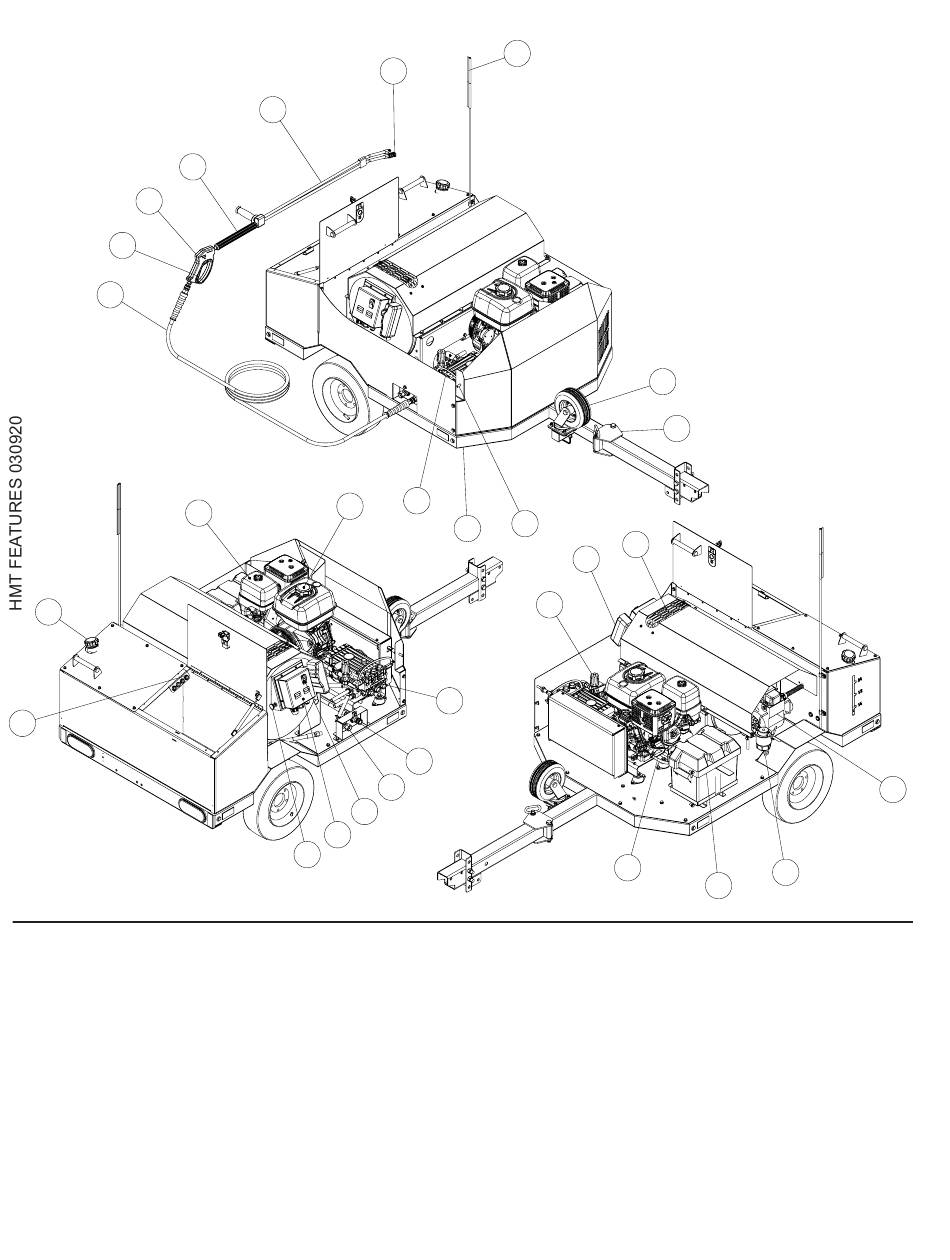

HMT-4004-0MGH FEATURES

18
17
4
3
7
6
5
11 Gun/Wand Holder
12 Frame Assembly
13 Pressure Switch
14 High Pressure Hose
15 Trigger Safety Lock
16 Trigger Gun
17 Insulated Lance
18 Adjustable Pressure Dual Lance
19 High Pressure Nozzle
20 Safety Flag
20
19
13
11
12
23
10
9
8
21
22
25
24
29
28
21 Caster Assembly
22 Swing-Away Coupler
23 Unloader
24 Key Switch
25 Heat Exchanger Outlet
26 Burner
27 Fuel Filter/Water Seperator
28 Battery Box
29 Engine Oil Drain
HMT-4004-0MGH Operator's Manual
